Запчасти Case IH 2300 (3-25[A]) - ELECTRICAL, FLASHER LIGHT, USA MARKET, AUSTRIAN & DELUXE LIGHTING, MACHINES W/SAFETY CAB OR FRAME (06) - ELECTRICAL SYSTEMS

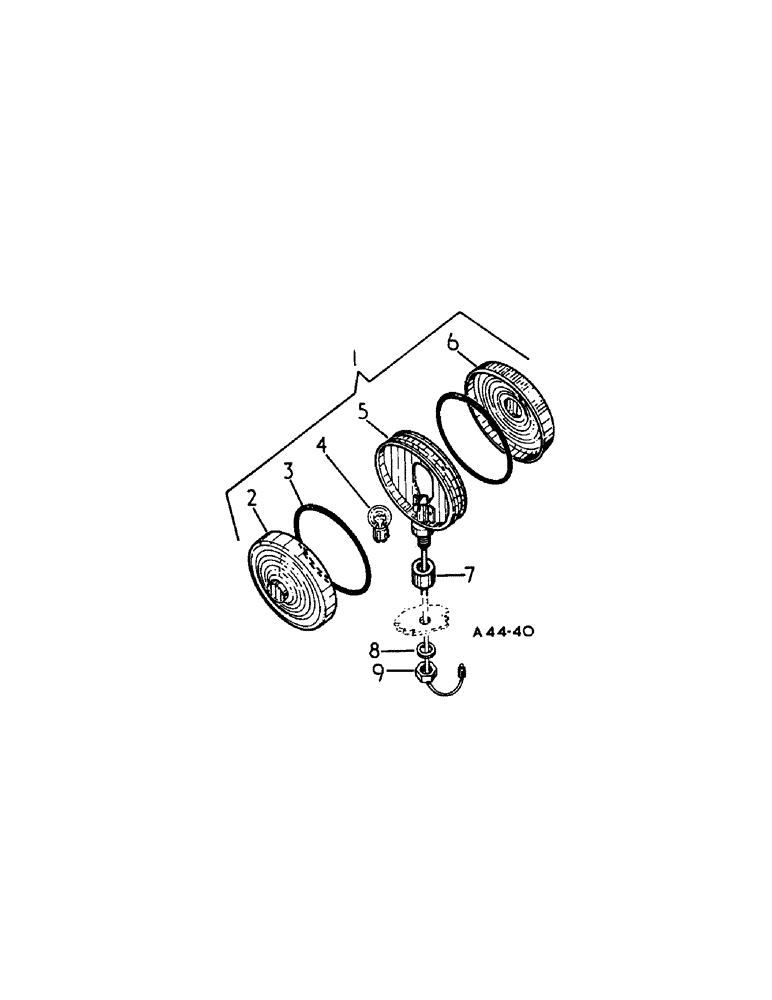

Схема запчастей Case IH 2300 - (3-25[A]) - ELECTRICAL, FLASHER LIGHT, USA MARKET, AUSTRIAN & DELUXE LIGHTING, MACHINES W/SAFETY CAB OR FRAME (06) - ELECTRICAL SYSTEMS
7
3
9
4
6
8
5
1
2

Артикул

Название

Примечание

Количество

1

531627R91

INDICATOR LIGHT

LIGHT, flasher (Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

2шт.

2

3112682R1

LENS

amber front (Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

4шт.

3

899282R1

O-RING

rubber sealing (Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

8шт.

4

3025210R91

BULB

12v 21w SCC (Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

4шт.

5

NSS

NOT SOLD SEPARAT

BODY, assy. (Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

4шт.

6

3112683R1

LENS

amber rear (Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

4шт.

7

3073103R1

SPACER

(Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

2шт.

8

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER, 7/16" locking (Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame)

1шт.

9

425-157

JAM NUT,Jam, 7/16"-20, G5

(Flasher light U.S.A. market) (Austrian and Deluxe lighting) (For machines w/safety cab or frame) Jam, 7/16"-20, G5

2шт.

Выбрано товаров: 9
