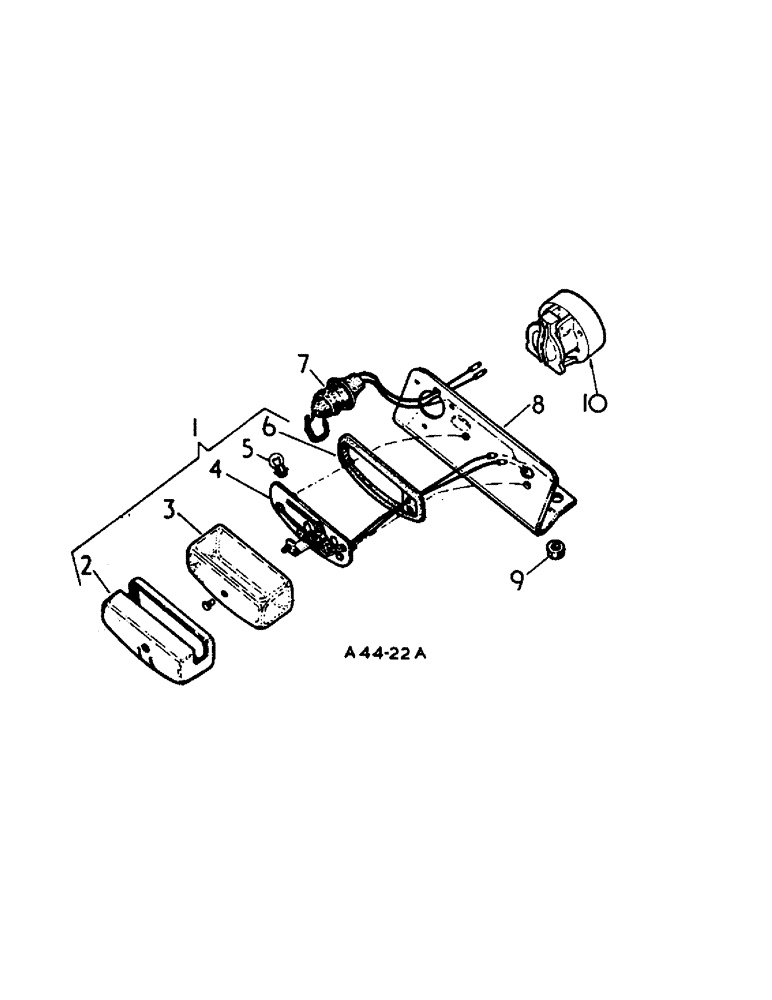

Запчасти Case IH 2300 (3-24) - ELECTRICAL, REGISTRATION LAMP (06) - ELECTRICAL SYSTEMS

1

3113443R91

LIGHT ASSY.

LAMP, reg. number plate w/two bulb 705757R91 and screw 3115524R1

1шт.

705757R91

LAMP

BULB

2шт.

3115524R1

SCREW

cover retaining

1шт.

1

3107874R91

LIGHT, WARNING

LAMP, cpte., reg. no. plate (PMG THORPE), optional w/705270R92 comprising:

1шт.

NSS

NOT SOLD SEPARAT

BASE, bulb holder and bulb

1шт.

705757R91

LAMP

BULB, 12v, 4w

1шт.

3107979R1

COVER

reg. no. plate lamp

1шт.

3107980R1

LENS

reg. no. plate lamp

1шт.

3107981R1

SCREW

retaining

1шт.

1

705270R92

SPARE PART

LAMP, cpte., reg. no. plate (Lucas) optional w/3107874R91) comprising: (1) base 3114713R91, (1) body 705753R1, (1) 705757R91, (1) grommet 705756R1, (1) gasket 705754R1, (1) set 705758R91, (1) window 705755R1

1шт.

2

3114713R91

BASE, assy. (Lucas 54576296)

1шт.

2

705759R91

BASE, assy. (Lucas 571619)

1шт.

Used with lamp 705270R91

1шт.

3

705755R1

WINDOW

1шт.

4

705753R1

BODY

1шт.

5

705757R91

LAMP

BULB, 12v, 4w

1шт.

6

705754R1

GASKET, window seating

1шт.

7

705271R91

SOCKET/RECEPTACLE

SOCKET, power w/cable

1шт.

8

3111983R1

BRACKET

reg. no. plate lamp

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex hd. 3/8 x 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

3068321R1

SPACER

1шт.

10

3112294R91

SOCKET/RECEPTACLE

SOCKET, 7 pin power (Deluxe and Austrian)

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

3шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

10-24 pan hd. std. mach

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

705758R91

NO LONGER SERVICED

SUNDRY PARTS, set (Lucas)

1шт.

705756R1

GROMMET, cable

1шт.
