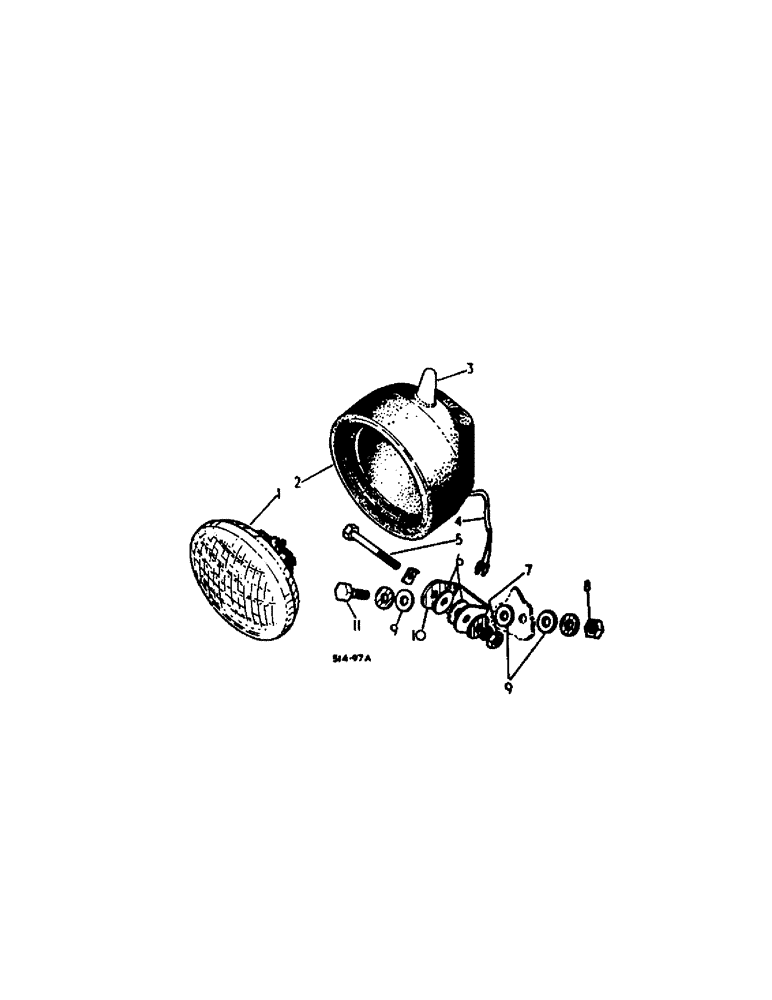

Запчасти Case IH 2300 (3-23) - ELECTRICAL, PLOUGH LAMP (06) - ELECTRICAL SYSTEMS

3112400R91

NO LONGER SERVICED

LAMP, plough

1шт.

1

535850R1

LAMP

seal beam

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, cpte. rubber

1шт.

3112688R1

SWITCH

1шт.

3112699R1

SCREWDRIVER

NUT, (On orders for nut 3112699R1 furnish cover switch 3116610R1)

1шт.

3

3112689R1

COVER

switch (Furnish cover switch 3116610R1)

1шт.

3

3116610R1

COVER

switch

1шт.

4

3112685R91

HARNESS

cable

1шт.

5

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT, 1/4 UNF x 2 hex hd.

1шт.

3072945R1

WASHER

tab

1шт.

6

3112690R1

WASHER

nylon

2шт.

7

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 UNF hex

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

120394

WASHER,3/8", SAE

WASHER, flat steel

1шт.

9

3112401R1

WASHER

nylon

3шт.

10

3108515R1

SUPPORT

BRACKET

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex hd.

1шт.

120394

WASHER,3/8", SAE

WASHER, flat steel

1шт.
