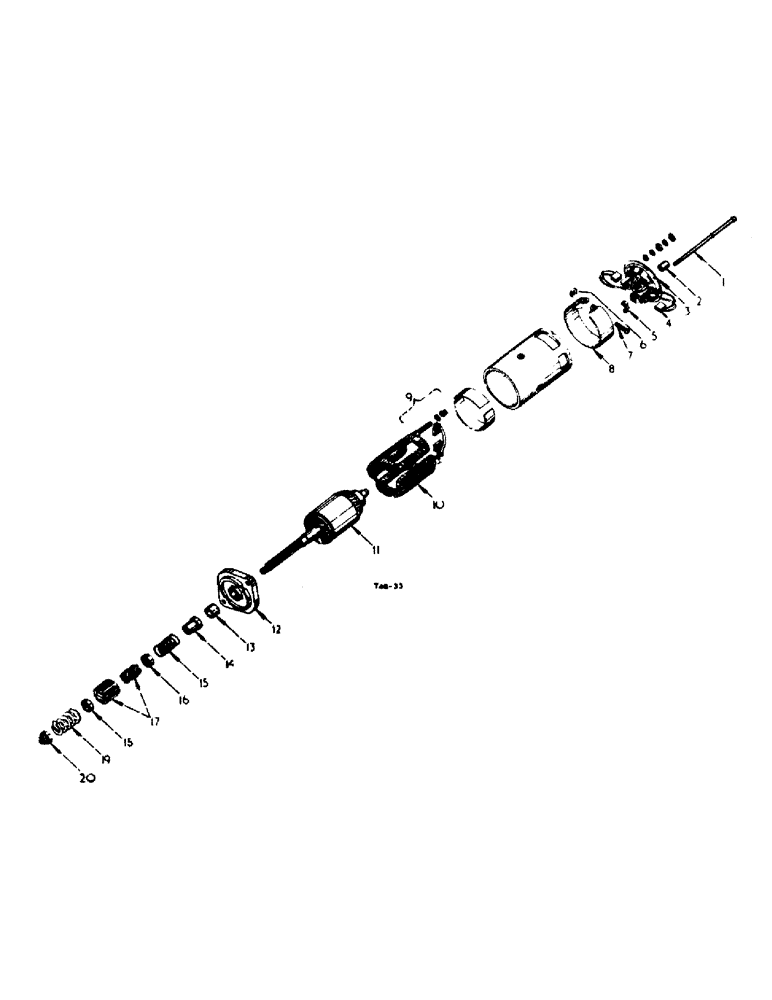

Запчасти Case IH 2300 (3-14) - ELECTRICAL, STARTER MOTOR, PETROL (06) - ELECTRICAL SYSTEMS

3045322R91

STARTER MOTOR

(12 volt) (Petrol) (Lucas 25612) comprising:

1шт.

1

3047182R1

BOLT

through, fixing

2шт.

2

702006R1

BUSHING

BUSH

1шт.

3

3047108R1

BRACKET

/FRAME, commutator end

1шт.

4

700452R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

5

3106687R91

SPRING, set brush, tension

1шт.

5

700453R91

SPRING

set, brush tension

1шт.

Used with starter motor, Lucas 25521

1шт.

6

705832R1

NUT

cover fixing

1шт.

7

3106646R1

SCREW, cover fixing

1шт.

7

705831R1

SCREW, cover fixing

1шт.

Used with starter motor, Lucas 25521

1шт.

8

3047106R1

BAND, cover

1шт.

9

3047181R1

TERMINAL CONNECTOR

TERMINAL, field

1шт.

10

3047116R91

COILS, field set

1шт.

11

3114160R91

ARMATURE

1шт.

11

3047115R91

ARMATURE

1шт.

Used with starter motor, Lucas 25521

1шт.

3047107R1

CAP, shaft

1шт.

12

3047113R1

BRACKET

/FRAME, driving end

1шт.

13

3047114R1

BUSHING

BUSH, bearing

1шт.

14

3047110R1

GUIDE

spring retaining (Order kit 3114707R91)

1шт.

Used with starter motor, Lucas 25521

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING, pinion retaining (Order kit 3114707R91)

1шт.

16

3047111R1

CUP

spring retaining (Order kit 3114707R91)

1шт.

Used with starter motor, Lucas 25521

1шт.

17

700456R91

GEAR

PINION AND SLEEVE

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER, buffer (Order kit 3114707R91)

1шт.

19

700455R1

SPRING

main

1шт.

20

3110450R1

CUP, shaft

1шт.

3114161R1

RING, jump

1шт.

20

3047109R1

NUT

shaft

1шт.

Used with starter motor, Lucas 25521

1шт.

702010R91

SUNDRY PARTS SET

1шт.

3114707R91

PACKAGE

KIT, pinion retention

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd. 3/8 x 1-1/8

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
