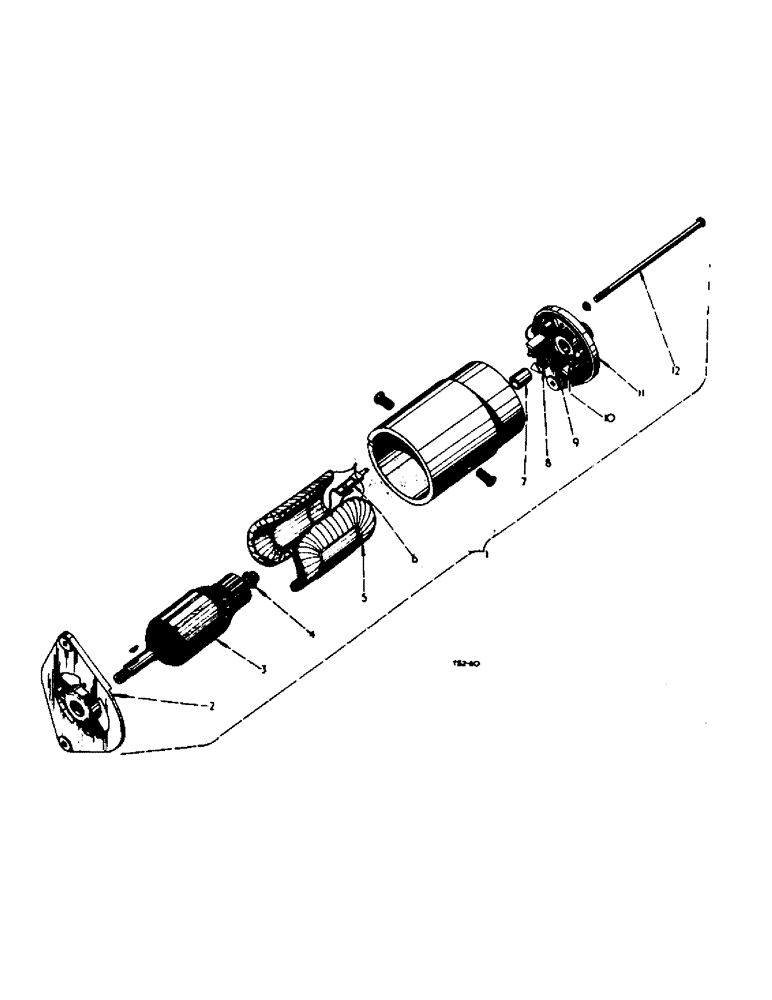

Запчасти Case IH 2300 (3-13) - ELECTRICAL, GENERATOR (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3112883R91
GENERATOR
GENERATOR, 12 volt cpte. package comprising:
1шт.
1
C7NN10000CGV
GENERATOR
Value
1шт.
1
C7NN10000CLPR
REMAN-GENERATOR
Remanufactured Generator, 12 volt 22 ampere
1шт.
1
C7NN10000CLPC
CORE-GENERATOR
Return Number Generator 12 volt 22 ampere
1шт.
2
3043332R91
BRACKET
BRACKET, drive end, cpte., circlipped
1шт.
3112882R91
PACKAGE
KIT, bearing retention comprising:
1шт.
NSS
NOT SOLD SEPARAT
CIRCLIP
1шт.
NSS
NOT SOLD SEPARAT
PLATE, bearing
1шт.
NSS
NOT SOLD SEPARAT
RING, pressure
1шт.
NSS
NOT SOLD SEPARAT
RETAINER, pressure ring
1шт.
NSS
NOT SOLD SEPARAT
WASHER, felt retaining
1шт.
NSS
NOT SOLD SEPARAT
WASHER, felt
1шт.
3
702003R91
ARMATURE
ARMATURE
1шт.
4
NSS
NOT SOLD SEPARAT
WASHER, fiber, thrust
1шт.
5
3043338R91
COIL
COILS, field set
1шт.
6
3043339R91
TERMINAL CONNECTOR
TERMINAL, lucas, set
1шт.
7
700474R1
BUSHING
BUSH, bronze
1шт.
8
3043329R91
OILER
FELT, oiler
1шт.
9
3043327R91
BRUSH, COMMUTATOR
BRUSH BRUSH, set
1шт.
10
3043330R91
SPRING
KIT, brush tension spring
1шт.
11
3043328R91
BRACKET
BRACKET, commutator end, cpte., comprising: (1) bush 700474R1, (1) kit 3043330R91, (1) oiler 3043329R91
1шт.
12
702001R1
BOLT
BOLT, through
2шт.
700468R1
BEARING
BEARING, drive end
1шт.
3043340R91
PACKAGE
SUNDRY PARTS SET, comprising:
1шт.
NSS
NOT SOLD SEPARAT
NUT, shaft
1шт.
NSS
NOT SOLD SEPARAT
WASHER, C.F. thrust
1шт.
NSS
NOT SOLD SEPARAT
KEY, Woodruff
1шт.
NSS
NOT SOLD SEPARAT
COLLAR, D.E.
1шт.
NSS
NOT SOLD SEPARAT
SCREWS, brush fixing
1шт.
NSS
NOT SOLD SEPARAT
WASHERS, brush fixing
1шт.
NSS
NOT SOLD SEPARAT
WASHER, through bolts
1шт.
179815
BOLT,Hex, 5/16" - 18 x 11/16", Gr 5
BOLT, Hex, 5/16"-18 x 11/16", G5, Full Thd
1шт.
181339
BOLT,Hex, 5/16" - 24 x 1", Gr 5
BOLT, Hex, 5/16"-24 x 1", G5, Full Thd
2шт.
Q397
WASHER
WASHER, 11/32" x 3/4" x 16 ga.
1шт.
Выбрано товаров: 35
