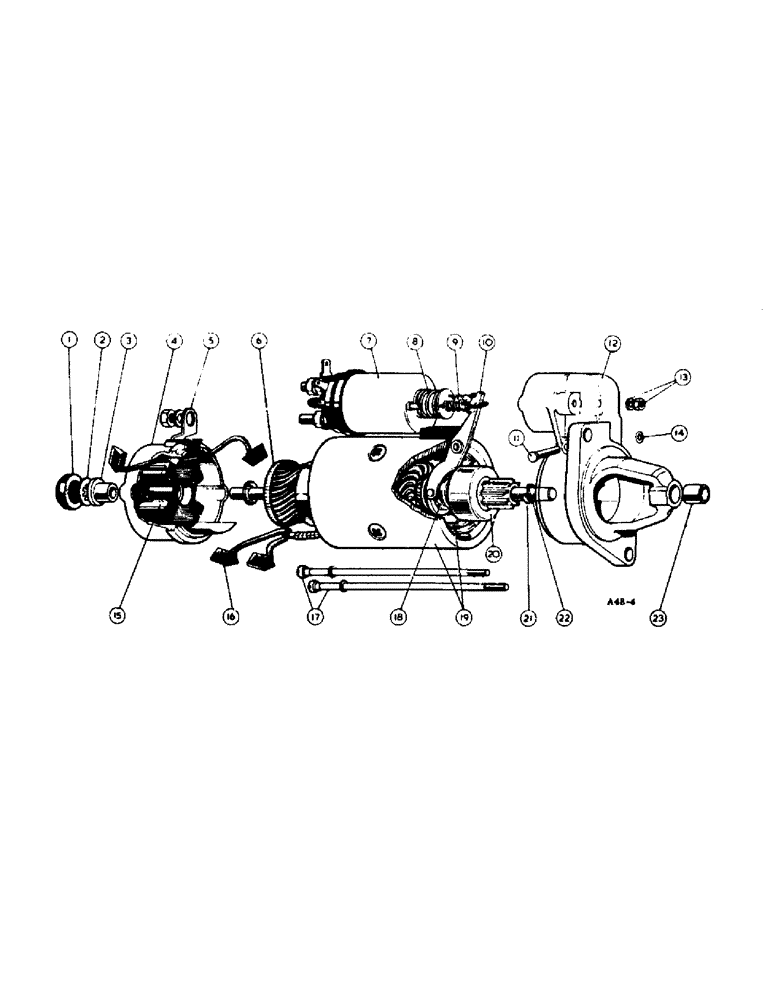

Запчасти Case IH 2300 (3-12A) - ELECTRICAL, STARTER MOTOR, PETROL (06) - ELECTRICAL SYSTEMS

3045322R92

MOTOR HOUSING

STARTER MOTOR, cpte. (Lucas 25694) comprising:

1шт.

1

3114982R91

KIT, bush (Consists of D.E. and C.E. Bushes)

1шт.

2

3114981R91

KIT, C.E. bracket, (Consists of bracket assy. and brush and connector assy.)

1шт.

3

3114980R91

PACKAGE

KIT, (Consists of brush and connector assy. and 1 pair of brushes)

1шт.

4

3114984R91

ARMATURE

1шт.

5

3114983R91

KIT, D.E. bracket (Consists of bracket, bush and dowel)

1шт.

6

3114986R91

KIT, through bolt (Consists of 2 bolts and 2 washers)

1шт.

7

3106688R1

SPRING, main

1шт.

The solenoid S/B 3109131R91 which subs to 704668R94

1шт.

8

3114985R91

KIT, field coils (Consists of field coils, yoke insulation and pole screws)

1шт.

9

3106689R91

PINION AND SLEEVE

1шт.

9

3114707R91

PACKAGE

KIT, pinion retention (Consists of retaining spring, guide, cup, washer and buffer)

1шт.

10

3110450R1

CUP, shaft

1шт.

11

3114161R1

RING, jump

1шт.

3114987R91

KIT, sundry parts

1шт.
