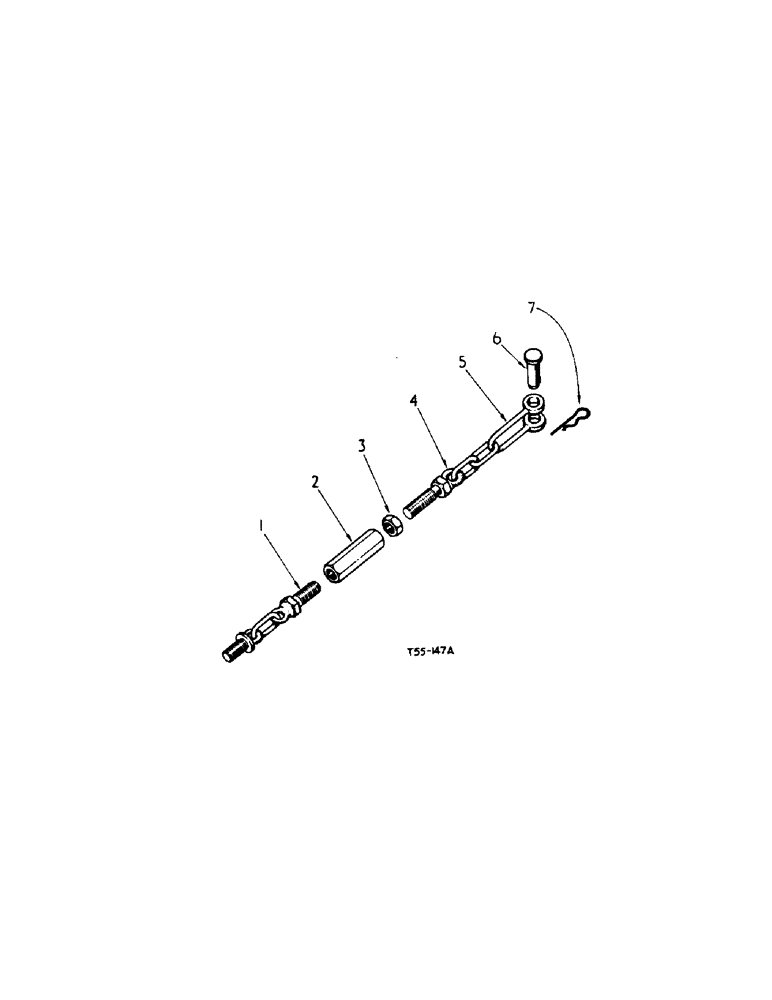

Запчасти Case IH 2300 (6-06) - ATTACHMENTS, HEAVY DUTY CHECK CHAIN ATTACHMENT Attachments

NSS

NOT SOLD SEPARAT

ATTACHMENT, heavy duty check chain each comprising (Not serviced)

1шт.

Used only with three point linkage attachment and Vary Touch hydraulic lift attachment

1шт.

3068168R92

CHAIN, heavy duty check, assy., each comprising:

2шт.

1

3073107R91

LINK

CHAIN, check, tractor end, CPTE.

1шт.

220081

NUT

hex 3/4"

1шт.

2

3048314R1

NUT

check chain adjustment

1шт.

3

218443

NUT

jam, hex 3/4"

1шт.

4

3048309R91

CHAIN (AG)

CHAIN, check, link end, CPTE.

1шт.

5

3068173R1

SHACKLE, special dee

1шт.

6

Q1237

PIN,3/4" x 2 1/2"

std. hd. 3/4" dia. x 2-1/2"

1шт.

7

720631R1

LINCH PIN

PIN, cotter, Opt.

1шт.

7

520175R1

CLIP

PIN, cotter, Opt.

1шт.
