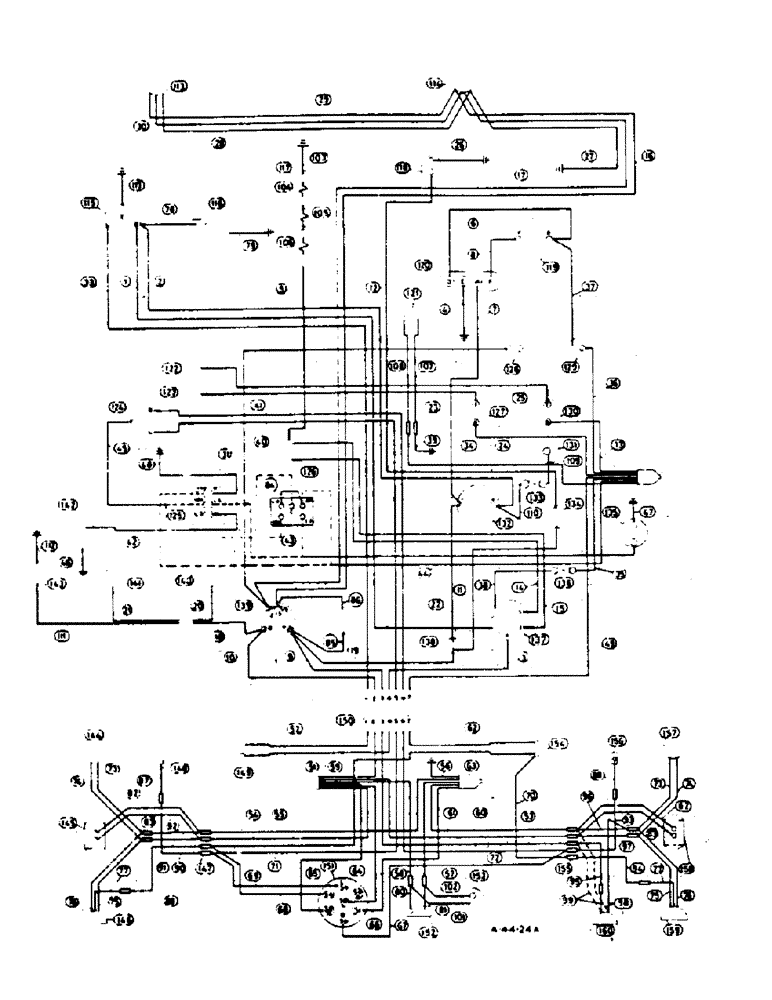

Запчасти Case IH 2300 (3-02) - ELECTRICAL, ELECTRICAL SYSTEM, DIESEL (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
3114095R92
HARNESS
main cable (Deluxe) and Austrian (consists of items, Serial Range: 1-49)
1шт.
3112298R92
HARNESS
main cable w/panel lights (consists of items, Serial Range: 1-39)
1шт.
1
NSS
NOT SOLD SEPARAT
CABLE, starter motor 'B' term., to key switch term. 1, (red)
1шт.
2
NSS
NOT SOLD SEPARAT
CABLE, starter motor 'B' term., to ammeter positive term., (red)
1шт.
3
NSS
NOT SOLD SEPARAT
CABLE, rear conn. no. 4, to key switch term. 4, (red/black)
1шт.
4
NSS
NOT SOLD SEPARAT
CABLE, regulator 'E' term. to earth (black)
1шт.
5
NSS
NOT SOLD SEPARAT
CABLE, no. 4, glow plug to indicator resistor (black)
1шт.
6
NSS
NOT SOLD SEPARAT
CABLE, regulator 'D' term. to generator 'D' term. (brown/yellow)
1шт.
7
NSS
NOT SOLD SEPARAT
CABLE, regulator 'A' term. to ammeter neg. term. (brown/white)
1шт.
8
NSS
NOT SOLD SEPARAT
CABLE, regulator 'F' term. to generator (brown/green)
1шт.
9
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 4 to rear conns. no. 3, (red/white)
1шт.
10
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 8 to rear conns. no. 2, (red)
1шт.
11
NSS
NOT SOLD SEPARAT
CABLE, aux. fuse to horn push (purple)
1шт.
12
NSS
NOT SOLD SEPARAT
CABLE, horn to horn push (purple/black)
1шт.
13
NSS
NOT SOLD SEPARAT
CABLE, splice ferrule no. 3, to heat indicator term. 'B' (green)
1шт.
14
NSS
NOT SOLD SEPARAT
CABLE, key switch term. 5, to indicator resistor (brown/yellow)
1шт.
15
NSS
NOT SOLD SEPARAT
CABLE, key switch term. 3, to indicator resistor (brown)
1шт.
16
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 13 to R.H. headlamp conn. (dip) (blue/yellow)
1шт.
17
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 12 to R.H. headlamp conn. (main) (blue/red)
1шт.
18
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 8, to panel light conn. (red/blue)
1шт.
19
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 4, to aux. fuse (purple)
1шт.
20
NSS
NOT SOLD SEPARAT
CABLE, panel light holder no. 2 to panel light conn. (red/blue)
1шт.
21
NSS
NOT SOLD SEPARAT
CABLE, panel light holder no. 1, to panel light conn. red/blue)
1шт.
22
NSS
NOT SOLD SEPARAT
CABLE, aux. fuse supply to ammeter neg. term. (brown/blue)
1шт.
23
NSS
NOT SOLD SEPARAT
CABLE, fuel gauge term. 'T' to transmitter (green/black)
1шт.
24
NSS
NOT SOLD SEPARAT
CABLE, fuel gauge term. 'B' to splice ferrule no. 3, (green)
1шт.
25
NSS
NOT SOLD SEPARAT
CABLE, head indicator term 'T' to transmitter (green/blue)
1шт.
26
NSS
NOT SOLD SEPARAT
CABLE, horn to earth (black)
1шт.
27
NSS
NOT SOLD SEPARAT
CABLE, R.H. headlamp to earth (black)
1шт.
28
NSS
NOT SOLD SEPARAT
CABLE, R.H. headlamp to L.H. headlamp (black)
1шт.
29
NSS
NOT SOLD SEPARAT
CABLE, R.H. headlamp 'dip' to L.H. headlamp 'dip' (blue/yellow)
1шт.
30
NSS
NOT SOLD SEPARAT
CABLE, R.H. headlamp main to L.H. headlamp main (blue/red)
1шт.
31
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 2 to high beam warning light (blue/red)
1шт.
32
NSS
NOT SOLD SEPARAT
Not used
1шт.
33
NSS
NOT SOLD SEPARAT
CABLE, rear conns. no. 1 to starter motor sol. term. (white/red)
1шт.
34
NSS
NOT SOLD SEPARAT
CABLE, windscreen wiper conn. to splice ferrule no. 3, (green)
1шт.
35
NSS
NOT SOLD SEPARAT
CABLE, line fuse to splice ferrule no. 3, (green)
1шт.
36
NSS
NOT SOLD SEPARAT
CABLE, generator warning light to splice ferrule no. 3, (green)
1шт.
37
NSS
NOT SOLD SEPARAT
CABLE, generator, warning light to generator warning light to generator 'D' term. (brown/yellow)
1шт.
38
NSS
NOT SOLD SEPARAT
CABLE, key switch term. 2, to line fuse (white)
1шт.
39
NSS
NOT SOLD SEPARAT
CABLE, wiper conns. to earth (black)
1шт.
40
NSS
NOT SOLD SEPARAT
CABLE, flasher switch term. 'L' to rear conns. no. 5, (green/red)
1шт.
41
NSS
NOT SOLD SEPARAT
CABLE, flasher switch term 'R' to rear conns. no. 6, (green/white)
1шт.
42
NSS
NOT SOLD SEPARAT
CABLE, flasher unit term 'C' to flasher warning light (tractor) (yellow/brown)
1шт.
43
NSS
NOT SOLD SEPARAT
CABLE, flasher unit term 'C2' to flasher warning light (trailer) (yellow/blue)
1шт.
44
NSS
NOT SOLD SEPARAT
CABLE, flasher unit term. '+49' to splice ferrule no. 3, (green)
1шт.
45
NSS
NOT SOLD SEPARAT
CABLE, flasher unit term. '49A' to flasher switch term. 'F' (light green/ brown)
1шт.
46
NSS
NOT SOLD SEPARAT
CABLE, flasher warning light (tractor) to earth (black)
1шт.
47
NSS
NOT SOLD SEPARAT
CABLE, flasher warning light (trailer) to earth (black)
1шт.
48
NSS
NOT SOLD SEPARAT
CABLE, flasher unit term. '-31' to earth (black)
1шт.
49
NSS
NOT SOLD SEPARAT
CABLE, splice ferrule no. 3, to rear conns. no. 7, (green)
1шт.
50
NSS
NOT SOLD SEPARAT
Not used
1шт.
3112295R91
HARNESS
rear (Standard) comprises ref no 51-61
1шт.
3114096R91
HARNESS
rear (Deluxe) comprises ref. nos. 51 - 72 (and Austrian)
1шт.
51
NSS
NOT SOLD SEPARAT
CABLE, rear conns. no. 4, to safety start switch (red/black)
1шт.
52
NSS
NOT SOLD SEPARAT
CABLE, safety start switch to rear conns. no. 1, (white/red)
1шт.
53
NSS
NOT SOLD SEPARAT
CABLE, R.H. fender conn. no. 3, to rear conns. no. 3, (red/white)
1шт.
54
NSS
NOT SOLD SEPARAT
CABLE, L.H. fender conns. no. 2, to splice ferrule no. 1, (red)
1шт.
55
NSS
NOT SOLD SEPARAT
CABLE, L.H. fender conns. no. 1, to splice ferrule no. 2, (black)
1шт.
56
NSS
NOT SOLD SEPARAT
CABLE, splice ferrule no. 2, to earth (black)
1шт.
57
NSS
NOT SOLD SEPARAT
CABLE, ref. no. plate light to splice ferrule no. 2, (black)
1шт.
58
NSS
NOT SOLD SEPARAT
CABLE, reg. no. plate light to splice ferrule no. 1, (red)
1шт.
59
NSS
NOT SOLD SEPARAT
CABLE, splice ferrule no. 1, to rear conns. no. 2, (red)
1шт.
60
NSS
NOT SOLD SEPARAT
CABLE, splice ferrule no. 1, to R.H. fender conn. 2, (red)
1шт.
61
NSS
NOT SOLD SEPARAT
CABLE, splice ferrule no. 2, to R.H. fender conns. no. 1, (black)
1шт.
62
NSS
NOT SOLD SEPARAT
CABLE, rear conns. no. 7, to brake light switch (green)
1шт.
63
NSS
NOT SOLD SEPARAT
CABLE, brake light switch to L.H. fender conns. no. 3, (green/purple)
1шт.
64
NSS
NOT SOLD SEPARAT
CABLE, 7 pin socket term. 58L to splice ferrule no. 1, (red)
1шт.
65
NSS
NOT SOLD SEPARAT
CABLE, 7 pin socket term. 58L to splice ferrule no. 1, (red)
1шт.
66
NSS
NOT SOLD SEPARAT
CABLE, 7 pin socket term. 31 to splice ferrule no. 2, (black)
1шт.
67
NSS
NOT SOLD SEPARAT
CABLE, 7 pin socket term. R54, to R.H. fender conns. no. 4, (green/white)
1шт.
68
NSS
NOT SOLD SEPARAT
CABLE, 7 pin socket term. 54 to L.H. fender conns. no. 3, (green/purple)
1шт.
69
NSS
NOT SOLD SEPARAT
CABLE, 7 pin socket term. L54, to L.H. fender conns. no. 4, (green/red)
1шт.
70
NSS
NOT SOLD SEPARAT
CABLE, R.H. fender conns. no. 5, to brake light switch (green/purple)
1шт.
71
NSS
NOT SOLD SEPARAT
CABLE, L.H. fender conns. no. 4, to rear conns. no. 5, (green/red)
1шт.
72
NSS
NOT SOLD SEPARAT
CABLE, R.H. fender conns. no. 4, to rear conns. no. 6, (green/white)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy., side tail and stop lamps comprising:
1шт.
73
NSS
NOT SOLD SEPARAT
CABLE, front side light to fender conn. (black)
1шт.
74
NSS
NOT SOLD SEPARAT
CABLE, front side light to fender conn. (red)
1шт.
75
NSS
NOT SOLD SEPARAT
CABLE, rear lamps to fender conn. (red)
1шт.
76
NSS
NOT SOLD SEPARAT
CABLE, rear lamps to fender conn. (black)
1шт.
77
NSS
NOT SOLD SEPARAT
CABLE, stop lamp to fender conn. (green)
1шт.
78
3112297R92
CABLE
battery positive to starter motor (black PVC Sheath)
1шт.
79
3112292R91
CABLE
battery negative to earth (black PVC Sheath)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy., reg. no. plate lamp comprising:
1шт.
80
NSS
NOT SOLD SEPARAT
CABLE, reg. no. plate lamp to no. plate lamp conn. (red)
1шт.
81
NSS
NOT SOLD SEPARAT
CABLE, reg. no. plate lamp to no. plate lamp conn. (black)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy., side and tail lamps comprising:
1шт.
82
NSS
NOT SOLD SEPARAT
CABLE, side and tail lamp to fender conn. (black)
1шт.
83
NSS
NOT SOLD SEPARAT
CABLE, side and tail lamp to fender conn. (red), ref. nos. 84, 85, 86, flying leads (Austria and Deluxe ltg)
1шт.
84
3112368R91
ELECTRICAL WIRE
CABLE, flasher unit term. C.O to flasher unit term. 49+ (light green/brown) (Austria and Deluxe lighting for machines w/flat top fenders only)
1шт.
85
3114183R91
ELECTRICAL WIRE
CABLE, light switch term. 4 to dip beam flasher switch (purple) (Austrian market only)
1шт.
86
NSS
NOT SOLD SEPARAT
CABLE, light switch term. 13 to dip beam flasher switch (purple) (Austrian market only)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy, flasher lamp comprising:
1шт.
87
3115876R91
MAKING-UP
CABLE, L.H. flying lead
1шт.
88
3115876R91
MAKING-UP
CABLE, R.H. flying lead
1шт.
3112654R91
HARNESS
assy., L.H. fender (Standard) comprises ref. nos. 91 and 92
1шт.
3114097R91
HARNESS
ASSY., L.H. fender (Deluxe and Austrian) comprises ref. nos. 89 to 92 2 req'd. for Austrian market
1шт.
89
NSS
NOT SOLD SEPARAT
CABLE, L.H. stop lamp conn. to L.H. fender conns. no. 3, (green/purple)
1шт.
90
NSS
NOT SOLD SEPARAT
CABLE, L.H. mid flasher conn. to L.H. fender conns. no. 4, (green/red)
1шт.
91
NSS
NOT SOLD SEPARAT
CABLE, L.H. side and tail lamp conn. to L.H. fender conns. no. 2, (red)
1шт.
92
NSS
NOT SOLD SEPARAT
CABLE, side and tail earth conn. L.H. to L.H. fender conns. no. 1 (black)
1шт.
3112655R91
HARNESS
assy., R.H. fender (Standard) comprises ref. nos., Serial Range: 95-97
1шт.
3114098R91
HARNESS
assy., R.H. fender (Deluxe) comprises ref. nos., Serial Range: 93-97
1шт.
93
NSS
NOT SOLD SEPARAT
CABLE, R.H. mid flasher conn. to R H fender conns. no. 4, (green/white)
1шт.
94
NSS
NOT SOLD SEPARAT
CABLE, R.H. stop lamp conn. to R.H. fender conns. no. 5, (green/purple)
1шт.
95
NSS
NOT SOLD SEPARAT
CABLE, plough lamp conn. R.H. fender conn. no. 3, (red/white)
1шт.
96
NSS
NOT SOLD SEPARAT
CABLE, side tail and plough earth conn. to R.H. fender conns. no. 1, (black)
1шт.
97
NSS
NOT SOLD SEPARAT
CABLE, R H side and tail lamp conn. to R.H. fender conns. no. 2 (red)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy, plough lamp comprising:
1шт.
98
NSS
NOT SOLD SEPARAT
CABLE, plough lamp to R.H. fender conn. (black)
1шт.
99
NSS
NOT SOLD SEPARAT
CABLE, plough lamp to R.H. fender conn. (red/white)
1шт.
100
3061346R91
CABLE, starter to earth (black)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy., 2 pin power socket comprising:
1шт.
101
NSS
NOT SOLD SEPARAT
CABLE, 2 pin power socket to conn. (red)
1шт.
102
NSS
NOT SOLD SEPARAT
CABLE, 2 pin power socket to conn. (black)
1шт.
103
NSS
NOT SOLD SEPARAT
CABLE, earth to no. 1 glow plug (nichrome wire)
1шт.
104
NSS
NOT SOLD SEPARAT
CABLE, no. 1 glow plug to no. 2 glow plug (nichrome wire)
1шт.
105
NSS
NOT SOLD SEPARAT
CABLE, no. 2 glow plug to no. 3 glow plug (nichrome wire)
1шт.
106
NSS
NOT SOLD SEPARAT
CABLE, no. 3. glow plug to no. 4 glow plug (nichrome wire)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy., windscreen wiper flying lead comprising:
1шт.
107
NSS
NOT SOLD SEPARAT
CABLE, assy., windscreen wiper to connector (black)
1шт.
108
NSS
NOT SOLD SEPARAT
CABLE, windscreen wiper to connector (green)
1шт.
NSS
NOT SOLD SEPARAT
CABLE, assy., cigar lighter comprises:
1шт.
109
NSS
NOT SOLD SEPARAT
CABLE, cigar lighter to in-line fuse (white/green)
1шт.
110
NSS
NOT SOLD SEPARAT
CABLE, ammeter + term to in-line fuse (white/green)
1шт.
NSS
NOT SOLD SEPARAT
CABLE ASSY, tractormeter light comprising:
1шт.
111
NSS
NOT SOLD SEPARAT
CABLE, tractometer light to connector (red)
1шт.
112
NSS
NOT SOLD SEPARAT
CABLE, tractometer light to earth (black)
1шт.
113
NSS
NOT SOLD SEPARAT
HEADLAMP, L.H. (See detail list)
1шт.
114
NSS
NOT SOLD SEPARAT
HEADLAMP, R.H. (See detail list)
1шт.
115
NSS
NOT SOLD SEPARAT
MOTOR, starter (See detail list)
1шт.
116
NSS
NOT SOLD SEPARAT
BATTERY
1шт.
117
377206R92
GLOW PLUG
PLUG, assy. glow
4шт.
118
NSS
NOT SOLD SEPARAT
HORN (See detail list)
1шт.
119
NSS
NOT SOLD SEPARAT
GENERATOR (See detail list)
1шт.
120
NSS
NOT SOLD SEPARAT
REGULATOR (See regulator and heat shield)
1шт.
121
NSS
NOT SOLD SEPARAT
WINDSCREEN, wiper and switch
1шт.
122
NSS
NOT SOLD SEPARAT
TRANSMITTER, heat indicator
1шт.
See electrical instruments
1шт.
123
NSS
NOT SOLD SEPARAT
TRANSMITTER, fuel
1шт.
See electrical instruments
1шт.
124
NSS
NOT SOLD SEPARAT
SWITCH, flasher (Deluxe lighting) (See direction indicator insts)
1шт.
125
NSS
NOT SOLD SEPARAT
UNIT, flasher (Deluxe lighting) (See direction indicator insts)
1шт.
126
NSS
NOT SOLD SEPARAT
RESISTOR, indicator
1шт.
See electrical instruments
1шт.
127
NSS
NOT SOLD SEPARAT
GAUGE, fuel
1шт.
See electrical instruments
1шт.
128
NSS
NOT SOLD SEPARAT
LIGHT, high beam warning
1шт.
See electrical instruments
1шт.
3041099R1
LAMP
BULB, 12v, 2.2w
1шт.
129
NSS
NOT SOLD SEPARAT
LIGHT, generator warning
1шт.
3041099R1
LAMP
BULB, 12v, 2.2w
1шт.
130
NSS
NOT SOLD SEPARAT
INDICATOR, heat
1шт.
See electrical instruments
1шт.
131
NSS
NOT SOLD SEPARAT
LIGHTER, cigar
1шт.
132
NSS
NOT SOLD SEPARAT
AMMETER
1шт.
See electrical instruments
1шт.
133
NSS
NOT SOLD SEPARAT
FUSE, in-line
1шт.
134
NSS
NOT SOLD SEPARAT
BUTTON, horn
1шт.
See electrical instruments
1шт.
135
NSS
NOT SOLD SEPARAT
LIGHT, flasher warning (Trailer) (Deluxe) (See direction indicator insts)
1шт.
136
3115813R1
FUSE
line 35 amp
1шт.
137
NSS
NOT SOLD SEPARAT
SWITCH, key
1шт.
See electrical instruments
1шт.
138
700166R1
FUSE
auxiliary, or
1шт.
707887R1
NO LONGER SERVICED
FUSE, auxiliary
1шт.
139
NSS
NOT SOLD SEPARAT
SWITCH, light
1шт.
See electrical instruments
1шт.
140
NSS
NOT SOLD SEPARAT
LIGHT, panel no. 2
1шт.
705757R91
LAMP
BULB, 12v, 5w, mcc, optional
1шт.
751467R1
BULB
12v, 5w, mcc, optional
1шт.
141
NSS
NOT SOLD SEPARAT
LIGHT, panel no. 1
1шт.
705757R91
LAMP
BULB, 12v, 5w, mcc, optional
1шт.
751467R1
BULB
12v, 5w, mcc, optional
1шт.
142
NSS
NOT SOLD SEPARAT
LIGHT, flasher warning (Tractor) (Deluxe) (See direction indicator insts)
1шт.
143
NSS
NOT SOLD SEPARAT
LIGHT, tachometer
1шт.
See electrical instruments
1шт.
144
NSS
NOT SOLD SEPARAT
SIDELAMP, front L.H.
1шт.
145
NSS
NOT SOLD SEPARAT
LAMP, side and tail L.H. (See detail list)
1шт.
146
NSS
NOT SOLD SEPARAT
LAMP, stop and tail L.H. (See detail list)
1шт.
147
NSS
NOT SOLD SEPARAT
CONNECTOR
1шт.
148
NSS
NOT SOLD SEPARAT
LAMP, flasher L.H. (Deluxe lighting) (See detail list)
1шт.
149
NSS
NOT SOLD SEPARAT
SWITCH, safety start
1шт.
See electrical instruments
1шт.
150
NSS
NOT SOLD SEPARAT
CONNECTOR, 7 way
1шт.
131
NSS
NOT SOLD SEPARAT
SOCKET, power 7 pin (Deluxe lighting)
1шт.
132
NSS
NOT SOLD SEPARAT
LIGHT, reg. no. plate (See detail list)
1шт.
153
NSS
NOT SOLD SEPARAT
SOCKET, power 2 pin
1шт.
154
NSS
NOT SOLD SEPARAT
SWITCH, stop light (Deluxe) (See detail list)
1шт.
155
NSS
NOT SOLD SEPARAT
CONNECTOR
1шт.
156
NSS
NOT SOLD SEPARAT
LAMP, flasher R.H. (Deluxe lighting) (See detail list)
1шт.
157
NSS
NOT SOLD SEPARAT
SIDELAMP, front R.H.
1шт.
158
NSS
NOT SOLD SEPARAT
LAMP, side and tail R.H. (See detail list)
1шт.
159
NSS
NOT SOLD SEPARAT
LAMP, stop and tail R.H. (See detail list)
1шт.
160
NSS
NOT SOLD SEPARAT
LAMP, plough (See detail list)
1шт.
708113R1
CLIP
cable
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
hex hd. 1/4-20 x 3/4
1шт.
109084
NUT,1/4"-20, G5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
708114R1
CLIP, cable
4шт.
708115R1
PLATE ASSY.
CLIP, cable
8шт.
708117R1
NO LONGER SERVICED
CLIP, cable
3шт.
537025R1
CLIP
panel harness
1шт.
705897R1
CONNECTOR, ELEC
CONNECTOR, 1 way L.H. fender
2шт.
705897R1
CONNECTOR, ELEC
CONNECTOR, 1 way R.H. fender (Std. lighting)
4шт.
3112300R1
CONDUIT, cpte., cable front
1шт.
708113R1
CLIP
cable
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
705896R1
CONNECTOR, ELEC
CONNECTOR, two way
2шт.
705897R1
CONNECTOR, ELEC
CONNECTOR, one way
3шт.
117974
GROMMET, 3/8 fender - cable entry
1шт.
108122
SPARE PART
BOLT, hex hd. 3/8 x 1
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , Attaching hardware for clips on rear hyd. lift housing 3/8"
2шт.
708115R1
PLATE ASSY.
CLIP, cable (Austrian and Deluxe lighting) (For machines w/flat top fenders only)
1шт.
707458R1
PLUG, blanking rubber (Austrian market for machines w/flat top fenders only)
2шт.
1092916R1
PRODUCT GRAPHIC, indicator warning
1шт.
1092916R1
PRODUCT GRAPHIC, indicator warning
1шт.
Выбрано товаров: 220
