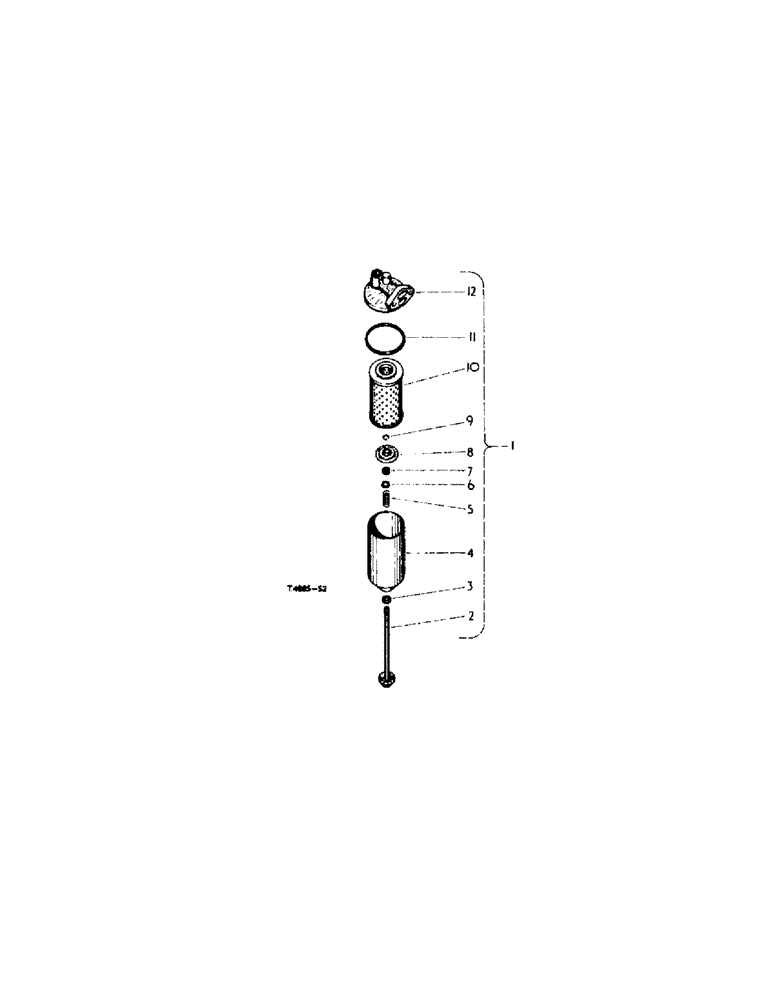

Запчасти Case IH 2300 (2-15[A]) - PETROL ENGINE, LUBRICATING OIL FILTER (01) - ENGINE

1

3042420R92

FILTER

oil assy, Telcalemit, comprising: (1) bolt 3069976R91, (1) circlip 3065965R1, (1) container 3043289R1, (1) head 3069975R91, (1) package 3043283R92, (2) plate 3043315R1, (1) plate 3043293R91, (1) ring 3042423R1, (1) spring 3043291R1

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R91

BOLT

center assy.

1шт.

3

3042425R1

WASHER

center bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE, pressure, assy.

1шт.

9

3065965R1

RING

CIRCLIP, center bolt (used w/circlip groove center bolt)

1шт.

9

3042430R1

RING, SNAP

CIRCLIP, center bolt

1шт.

10

376364R91

ELEMENT

PACKAGE, element service

1шт.

10

3043283R92

INSERT

PACKAGE, element service, w/plate 3043315R1, ring 3042423R1, and ring 707859R1, optional w/3110452R91

1шт.

10

3110452R91

ENGINE OIL FILTER

ELEMENT, assy., w/seal 3067728R91 and seal 707859R1

1шт.

3043315R1

PLATE

adaptor

2шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3069975R91

HEAD

filter, assy.

1шт.

706592R1

GASKET

lub oil filter base

1шт.
