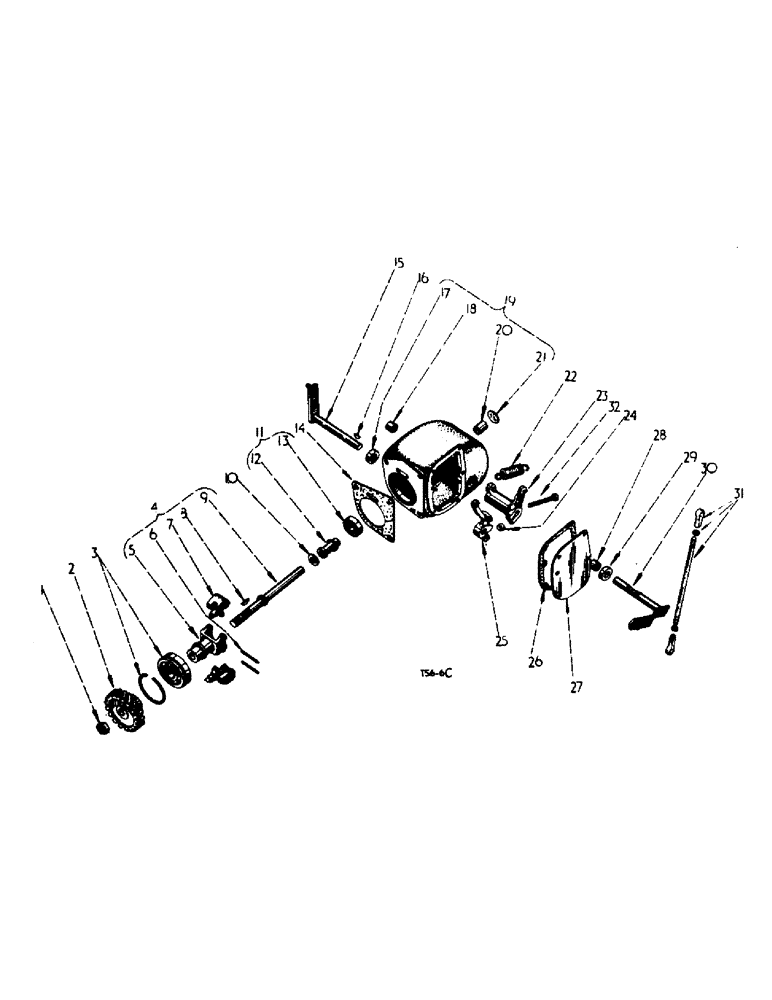

Запчасти Case IH 2300 (2-09) - PETROL ENGINE, GOVERNOR UNIT (01) - ENGINE

1

451074

NUT, jam, hex 9/16" UNF

1шт.

2

3043832R1

GEAR, governor (33 teeth)

1шт.

3

703612R91

NO LONGER SERVICED

BEARING, governor shaft (SKF), optional

1шт.

3

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING, governor shaft (IHC), optional

1шт.

3

45774D

BALL BEARING

BEARING, governor shaft (ND), optional

1шт.

3

700540R91

BALL BEARING

BEARING, governor shaft (Fischer), optional

1шт.

3

3040120R91

NO LONGER SERVICED

BEARING, governor shaft (Hoffman), optional

1шт.

4

3043838R91

WEIGHT

CARRIER, and weight, governor assy., comprising: (1) carrier 360535R1, (1) key 124547, (2) pin 45656DA, (1) shaft 3043836R1, (2) weight 3043837R1

1шт.

5

360535R1

CARRIER, governor weight, optional

1шт.

5

48256DA

CARRIER

governor weight, cpte., optional

1шт.

6

45656DA

PIN,6.35mm OD x 38.1mm L

governor weight

2шт.

7

3043837R1

WEIGHT, governor

2шт.

8

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

9

3043836R1

SHAFT, governor

1шт.

10

3043835R1

WASHER, governor sleeve, thrust

1шт.

11

351910R91

BEARING ASSY

SLEEVE, governor and bearing, thrust, assy. w/bearing ST506 and sleeve 48250D

1шт.

12

48250D

SLEEVE

governor

1шт.

13

395004R91

BEARING, governor thrust, optional

1шт.

13

700310R91

BEARING, governor thrust (R & M), optional

1шт.

13

3040121R91

BEARING, governor thrust (SKF), optional

1шт.

13

3040122R91

BEARING, governor thrust (Hoffman), optional

1шт.

13

3114941R91

BEARING, governor thrust (NTN), optional

1шт.

14

3044212R1

GASKET

governor housing

1шт.

15

3043840R91

LEVER, governor speed change, cpte. w/pin 706204R1

1шт.

706204R1

PIN, ball, governor speed change lever

1шт.

16

106749

KEY

Woodruff, no. 3, 1/8" x 1/2"

1шт.

17

45667D

SEAL

OIL SEAL, governor housing, optional

2шт.

17

357968R91

SEAL

OIL SEAL, governor housing, optional

2шт.

18

392673R91

BEARING, rockshaft, R.H.

1шт.

19

3043849R11

HOUSING, governor, cpte., comprising: (1) bearing 45775D, (1) bearing 3043848R91, (1) bush 48227D, (1) plug 172540, (2) oil seal 45667D

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

20

48227D

BUSHING

BUSH, governor housing

1шт.

21

41-3014

PLUG,Exp, 7/8"

expansion 7/8" dia.

1шт.

22

3045514R2

SPRING, governor

1шт.

23

3043847R11

LEVER, governor rockshaft cpte., w/two pins 48254D

1шт.

3043842R1

BOLT, socket hd. 3/16" 24 x 7/8"

1шт.

48254D

PIN, thrust, governor rockshaft lever

2шт.

115546

WASHER,Int Tooth, #12

LOCK, Int, Tooth, #12

1шт.

24

3043843R1

KEY, governor rockshaft lever

1шт.

25

3043841R1

LEVER, governor spring

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex hd. 1/4" x 7/8"

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

3044211R1

GASKET

governor housing cover

1шт.

27

3043833R1

COVER, governor housing

1шт.

10958D

BOLT, governor housing cover

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex hd. 5/8" x 3/4"

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

6шт.

28

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

rockshaft L.H.

1шт.

29

45667D

SEAL

OIL SEAL, governor housing

2шт.

29

357968R91

SEAL

OIL SEAL, governor housing

2шт.

30

3043846R91

LEVER

carburettor control cpte., w/pin 706204R1

1шт.

706204R1

PIN, ball, carburettor control lever

1шт.

31

3070914R91

ROD

control, governor to carburetor cpte., comprising:

1шт.

3068537R1

TRUNNION

END, rod

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

3070915R1

ROD

carburettor control

1шт.

3048289R2

BOLT, governor spring lever, long

1шт.

109084

NUT,1/4"-20, G5

1шт.
