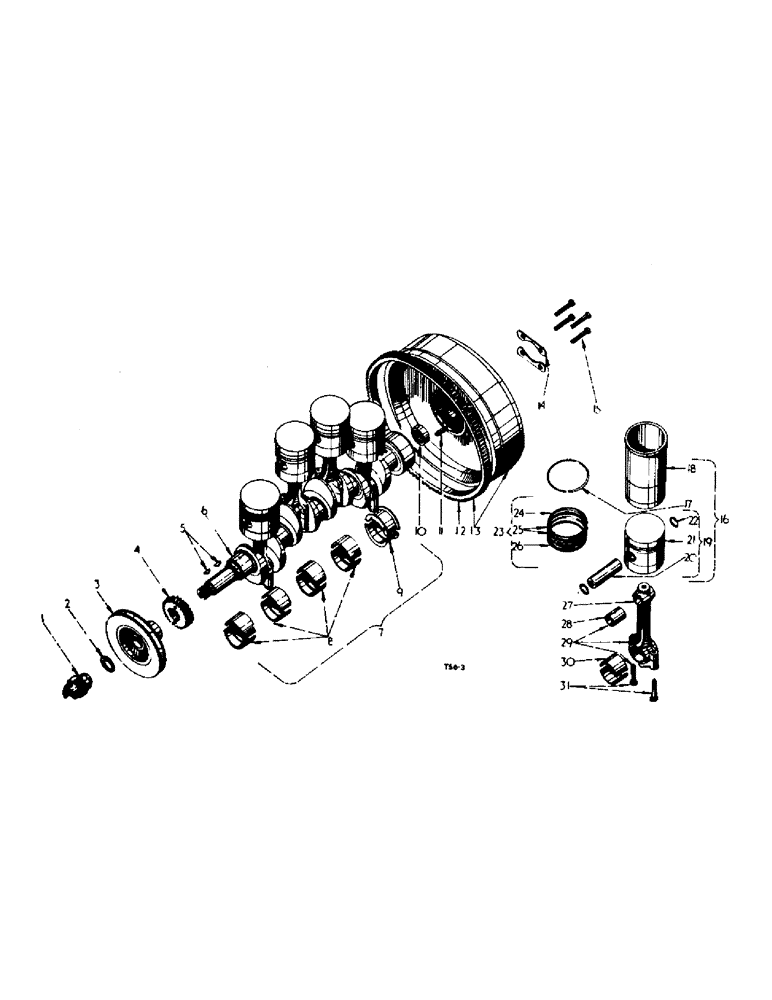

Запчасти Case IH 2300 (2-07) - PETROL ENGINE, CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTONS (01) - ENGINE

1

3046833R1

NUT

starting crank

1шт.

2

138516

GASKET,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

3

3046391R2

PULLEY

fan drive

1шт.

4

703865R1

GEAR

PINION, crankshaft, 33 teeth

1шт.

5

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

crankshaft pinion, Woodruff no. 91 1/4" x 3/4"

2шт.

6

751303R51

CRANKSHAFT

cpte., std. w/two pin 24550D (USA only)

1шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, cpte. std. w/two pin 24550D (Order 3110995R91) and bearing 708909R93

1шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, cpte., .015" undersize, w/two pin 24550D (Order 3067471R91) and bearing 708909R93

1шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, cpte., .030" undersize, w/two pin 24550D (Order 3110996R91) and bearing 708909R93

1шт.

7

708912R91

CRANKSHAFT BEARING

SET, crankshaft bearing, standard, comprising: (1) bearing 708910R91, (4) bearing 3064523R11

1шт.

7

708914R91

CRANKSHAFT BEARING

SET, crankshaft bearing .015" undersize, comprising: (1) bearing 708915R91, (4) bearing 3064525R11

1шт.

7

708913R91

CRANKSHAFT BEARING

SET, crankshaft bearing .030" undersize, comprising: (1) bearing 708911R91, (4) bearing 3065524R11

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, crankshaft, front and center, two halves standard

1шт.

8

3064525R11

BEARING LINER

BEARING, crankshaft, front and center, two halves .015" undersize

1шт.

8

3064524R11

BEARING LINER

BEARING, crankshaft, front and center, two halves .030" undersize

1шт.

9

708910R91

BEARING ASSY

BEARING, crankshaft, rear, two halves std.

1шт.

9

708915R91

BEARING ASSY

BEARING, crankshaft, rear, two halves .015" undersize

1шт.

9

708911R91

BEARING ASSY

BEARING, crankshaft, rear two halves .030" undersize

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot (Fischer), optional

1шт.

10

751846R93

BALL BEARING

clutch pilot (R & M), optional

1шт.

10

751847R93

BALL BEARING

clutch pilot (S.K.F.), optional

1шт.

10

751848R94

BALL BEARING

BEARING, clutch pilot (Hoffman), optional

1шт.

11

24550D

PIN

flywheel dowel

2шт.

12

3044171R1

GEAR

flywheel ring

1шт.

13

3045513R91

FLYWHEEL, cpte., w/gear 3044171R1 and two pin 141215 (Standard)

1шт.

141215

PIN,5/16" x 1/2"

dowel, 5/16" x 1/2"

2шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

3044201R92

SLEEVE CYLINDER

SLEEVES AND PISTONS, set w/four piston 3044202R92

1шт.

16

3044202R92

PISTON

cpte., w/sleeve, comprising: (1) piston 3044203R91, (1) ring 704100R1, (1) sleeve 704092R1

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cylinder sleeve packing

4шт.

18

704092R1

LINER, ENGINE CYLIND

SLEEVE, cylinder

4шт.

19

3044203R93

PISTON

cpte., comprising: (1) pin 704094R1, (1) pin 3044207R3, (2) retainer 704095R1, (1) ring 3044204R1, (2) ring 3044205R1, (1) ring 705993R1

1шт.

20

704094R1

LARGE PIN

PIN, piston

4шт.

20

716411R1

HUB

PIN, piston -005" oversize

1шт.

21

3044207R3

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

23

3044208R91

PACKAGE

SET, piston ring, comprising: (4) ring 705993R1, (8) ring 3044205R1, (4) ring 3044204R1

1шт.

24

3044204R1

PISTON RING

RING, piston, compression tap

4шт.

25

3044205R1

PISTON RING

RING, piston, compression

8шт.

26

705993R1

RING, piston, oil control

4шт.

27

3061216R91

CONNECTING ROD

ROD, connecting, set, w/four rod 3061214R91

1шт.

28

711045R1

BUSHING

BUSH, piston pin, optional

4шт.

28

3043611R1

BUSHING

BUSH, piston pin, optional

4шт.

29

3061214R91

PITMAN ASSY.

ROD, cpte., connecting, comprising: (2) bolt 3043216R1, (1) bush 711045R1, (1) cap (NSS), (1) rod (NSS)

4шт.

30

3070536R11

BEARING

connecting rod, two halves std.

4шт.

30

3070538R11

JOURNAL

BEARING, connecting rod, two halves .015" undersize

1шт.

30

3070537R11

BEARING

connecting rod, two halves .030" undersize

1шт.

31

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

3070546R91

BEARING LINER

SET, connecting rod bearing, std. w/four bearing, 3070536R11

1шт.

3070539R91

BEARING LINER

SET, connecting rod bearing, .015" undersize w/four bearing 3070538R11

1шт.

3070547R91

CRANKSHAFT BEARING

SET, connecting rod bearing, .030" undersize w/four bearing 3070537R11

1шт.

3110995R91

CRANKSHAFT

PACKAGE, service, crankshaft, std., comprising: (1) crankshaft (NSS), (1) set 708912R91, (1) set 3070546R91

1шт.

3067471R91

PACKAGE, service, crankshaft, .015" undersize, comprising: (1) crankshaft (NSS), (1) set 708914R91, (1) set 3070539R91

1шт.

3110996R91

PACKAGE

service, crankshaft, .030" undersize, comprising: (1) crankshaft (NSS), (1) set 708913R91, (1) set 3070547R91

1шт.
