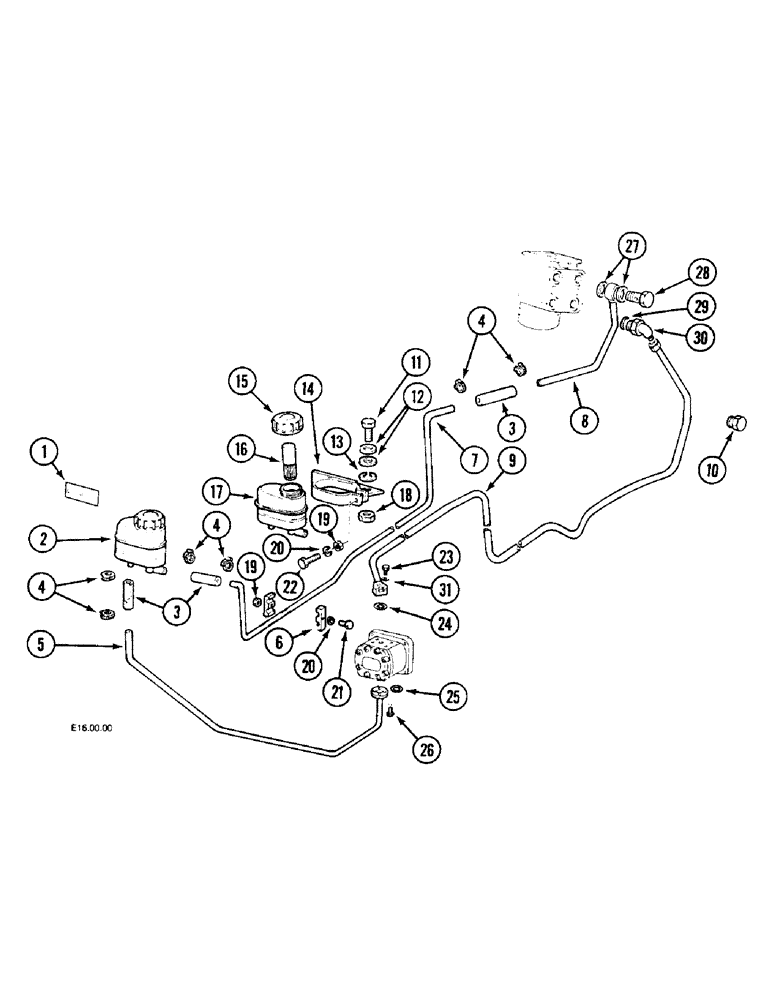

Запчасти Case IH 2150 (5-06) - SEPARATE OIL TANK, PLASTIC VERSION, 2WD, VERSION W/DOUBLE PUMP (05) - STEERING

1

1547418C1

DECAL

Oil Level

1шт.

2

1547415C1

TANK, HYDRAULIC OIL

Plastic

1шт.

3

1547416C1

HOSE

3шт.

4

1547412C1

CLAMP

6шт.

5

1547422C1

PIPE

1шт.

6

1547421C1

CLAMP

1шт.

7

1547414C1

PIPE

2120 & 2130

1шт.

7

1547413C1

PIPE

2140 & 2150

1шт.

8

1547423C1

PIPE

1шт.

9

Pipe, See Figure 5-04

1шт.

10

1547411C1

PLUG

1шт.

11

3401108R1

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

M8 x 22 mm

4шт.

12

892-11008

LOCK WASHER,8mm ID

4шт.

13

1966599C1

WASHER

2шт.

14

1547417C1

SUPPORT ASSY.

1шт.

15

1547419C1

PLASTIC PLUG

1шт.

16

1547420C1

FILTER SCREEN

1шт.

17

Tank

1шт.

18

825-1408

NUT,M8, Cl 8

4шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

20

892-11006

LOCK WASHER,M6

2шт.

21

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

1шт.

22

1530228C1

BOLT

1шт.

23

Screw, See Figure 5-04

4шт.

24

O-Ring, See Figure 5-04

1шт.

25

O-Ring, See Figure 8-38

1шт.

26

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

27

Washer, See Figure 5-04

2шт.

28

Fitting, See Figure 5-04

1шт.

29

O-Ring, See Figure 5-04

1шт.

30

Elbow, See Figure 5-04

1шт.

31

Washer, Lock, See Figure 5-04

4шт.

1984951C1

PACKAGE

Steering Reservoir, 3 Cylinder, 2120 & 2130

1шт.

Not Illustrated

1шт.

1984952C1

PACKAGE

Steering Reservoir, 4 Cylinder, 2140 & 2150

1шт.

Not Illustrated

1шт.
