(5-04) - STEERING PUMP PIPING VERSION WITH DOUBLE PUMP, VERSION WITH SINGLE PUMP

Запчасти Case IH 2150 (5-04) - STEERING PUMP PIPING VERSION WITH DOUBLE PUMP, VERSION WITH SINGLE PUMP (05) - STEERING

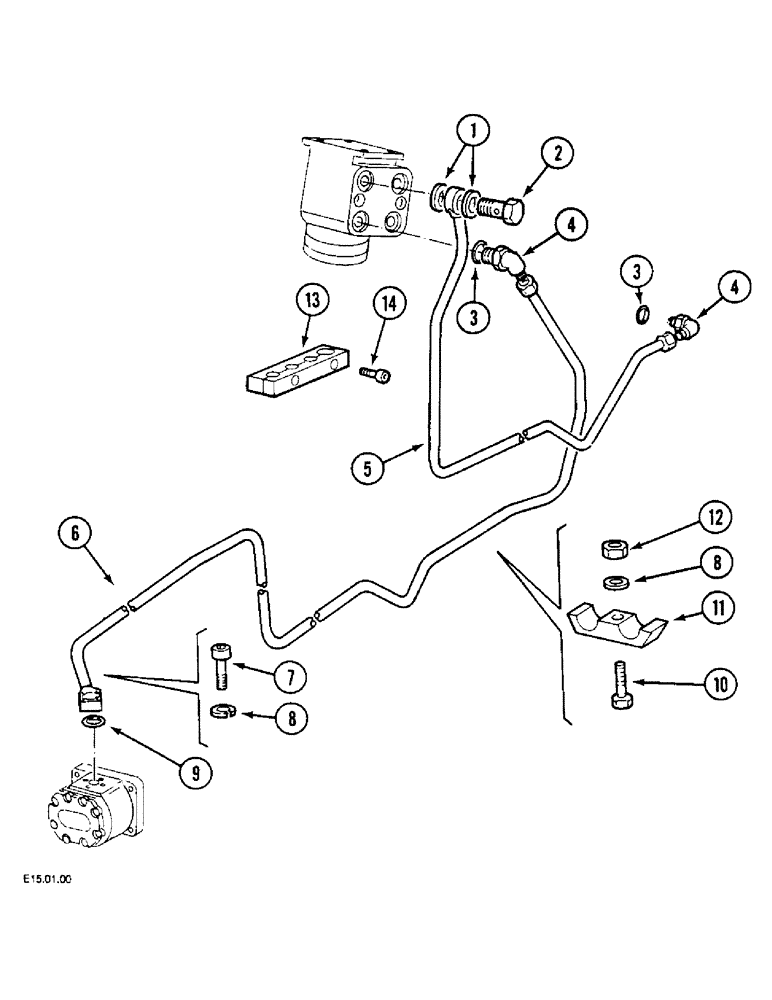

Схема запчастей Case IH 2150 - (5-04) - STEERING PUMP PIPING VERSION WITH DOUBLE PUMP, VERSION WITH SINGLE PUMP (05) - STEERING
2
3
8
4
7
11
10
3
9
6
14
13
12
5
8
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E135040

SEALING WASHER,M22 x 27 x 1.5

22 x 27 mm

2шт.

Version with Double Pump

1шт.

2

1966043C1

BANJO BOLT

1шт.

Version with Double Pump

1шт.

3

1966581C1

O-RING

2шт.

Version with Double Pump

1шт.

4

1966582C1

ELBOW

2шт.

Version with Double Pump

1шт.

5

1966583C1

PRESSURE PIPE

1шт.

Version with Double Pump

1шт.

6

1966585C1

PRESSURE PIPE

2120, 2130

1шт.

Version with Double Pump

1шт.

6

1966591C1

PRESSURE PIPE

2140, 2150

1шт.

Version with Double Pump

1шт.

7

1966592C1

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

Version with Double Pump

1шт.

8

892-11006

LOCK WASHER,M6

5шт.

Version with Double Pump

1шт.

9

1966907C1

O-RING,0.103" Thk x 0.612" ID, -114

1шт.

Version with Double Pump

1шт.

11

1966593C1

NUT

1шт.

Version with Double Pump

1шт.

12

825-1106

NUT,Hex, M6, Cl 8

1шт.

Version with Double Pump

1шт.

13

1547443C1

SUPPORT

1шт.

Version with Double Pump

1шт.

13

1547444C1

SUPPORT

, Start Serial: CGC2878

1шт.

Version with Single Pump

1шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

, Start Serial: CGC2878

2шт.

Version with Single Pump

1шт.

10

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

Version with Double Pump

1шт.
