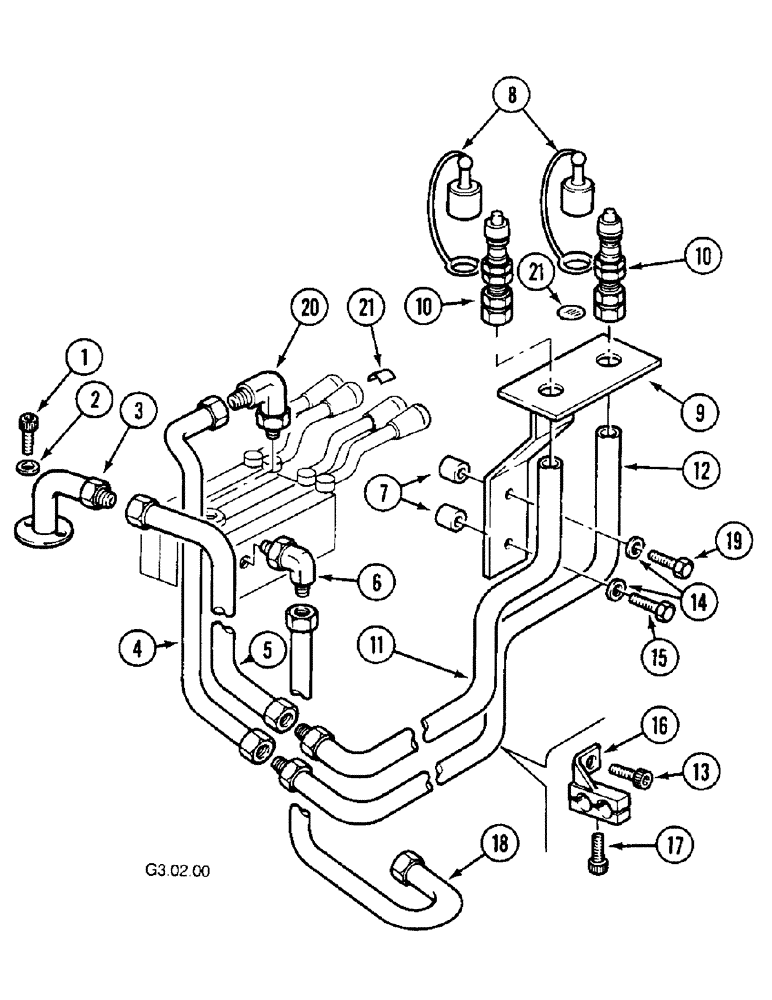

Запчасти Case IH 2150 (8-48) - REMOTE VALVE FRONT (08) - HYDRAULICS

1

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

2шт.

2

892-11006

LOCK WASHER,M6

2шт.

3

115273A1

PIPE

1шт.

4

115274A1

PIPE

1шт.

5

115276A1

PIPE

1шт.

6

115229A1

ELBOW

1шт.

7

115279A1

SPACER

with Cab

1шт.

7

115279A1

SPACER

without Cab

2шт.

8

1984796C1

PROTECTOR

2шт.

9

115280A1

SUPPORT ASSY.

1шт.

10

115269A1

PUSH-PULL COUPLING

2шт.

11

115282A1

PIPE

1шт.

12

115283A1

PIPE

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

14

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

Without Cab

2шт.

14

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

With Cab

1шт.

15

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

Without cab

2шт.

15

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

With cab

1шт.

16

115284A1

FIXING BRACKET

1шт.

17

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

18

115285A1

PIPE

1шт.

19

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

With cab

1шт.

20

115252A1

ELBOW

1шт.

21

115287A1

DECAL

Orange

2шт.
