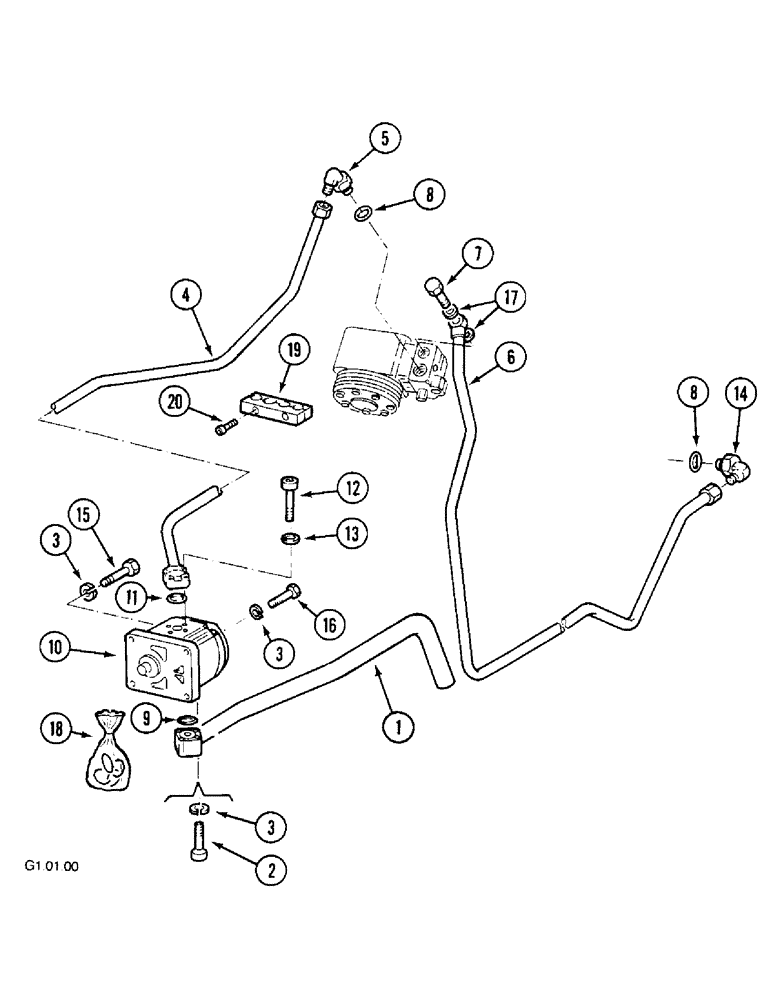

Запчасти Case IH 2150 (8-34[C]) - HYDRAULIC LIFT PIPING, OIL PUMP CIRCUIT, W/SINGLE PUMP, 2150 - (P.I.N. : -CGC15013) (08) - HYDRAULICS

1

1530009C1

PIPE

1шт.

2

864-8045

HEX SOC SCREW,M8 x 45mm, Cl 8.8

3шт.

3

892-1108

LOCK WASHER,M8

7шт.

4

1530011C1

PIPE

1шт.

5

1967522C1

ELBOW

1шт.

6

1530012C1

PIPE

1шт.

7

1967981C1

BANJO BOLT

1шт.

8

1966581C1

O-RING

4шт.

9

1530013C1

O-RING

1шт.

10

1967851C1

PUMP

1шт.

11

1966907C1

O-RING,0.103" Thk x 0.612" ID, -114

1шт.

12

1966592C1

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

13

892-11006

LOCK WASHER,M6

4шт.

14

1966582C1

ELBOW

1шт.

15

864-8045

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

16

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

2шт.

17

1967980C1

WASHER

2шт.

18

1984916C1

SEAL KIT

1шт.

19

1547433C1

SUPPORT ASSY.

1шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.
