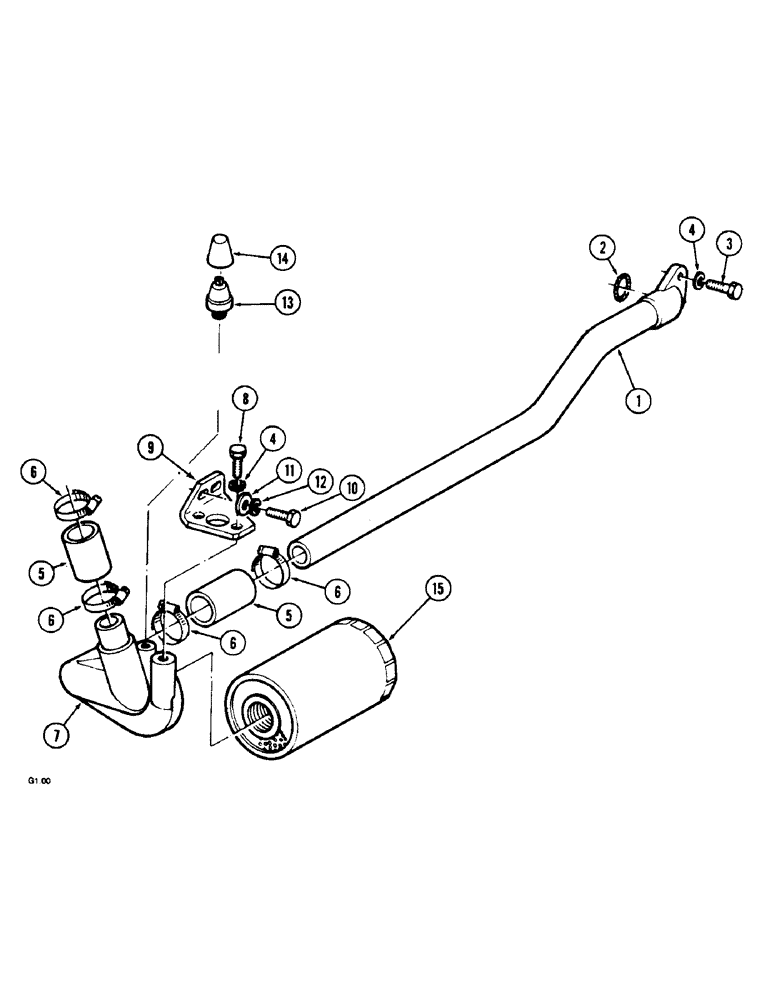

Запчасти Case IH 2150 (8-30[C]) - HYDRAULIC LIFT PIPING, SUCTION CIRCUIT, 2150 - (P.I.N. : -CGC15013) (08) - HYDRAULICS

1

1530000C2

PIPE

1шт.

2

1530001C1

O-RING

1шт.

3

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

4

892-1112

LOCK WASHER,M12

3шт.

5

1530002C1

HOSE

2шт.

6

1530003C1

CLAMP

4шт.

7

1530004C1

HOLDER

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

1530005C1

HOLDER

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

12

892-1110

LOCK WASHER,M10

2шт.

13

1530006C1

SWITCH

1шт.

14

1530007C1

PROTECTOR

1шт.

15

1966553C1

FILTER, ENGINE OIL

FILTER, OIL

1шт.
