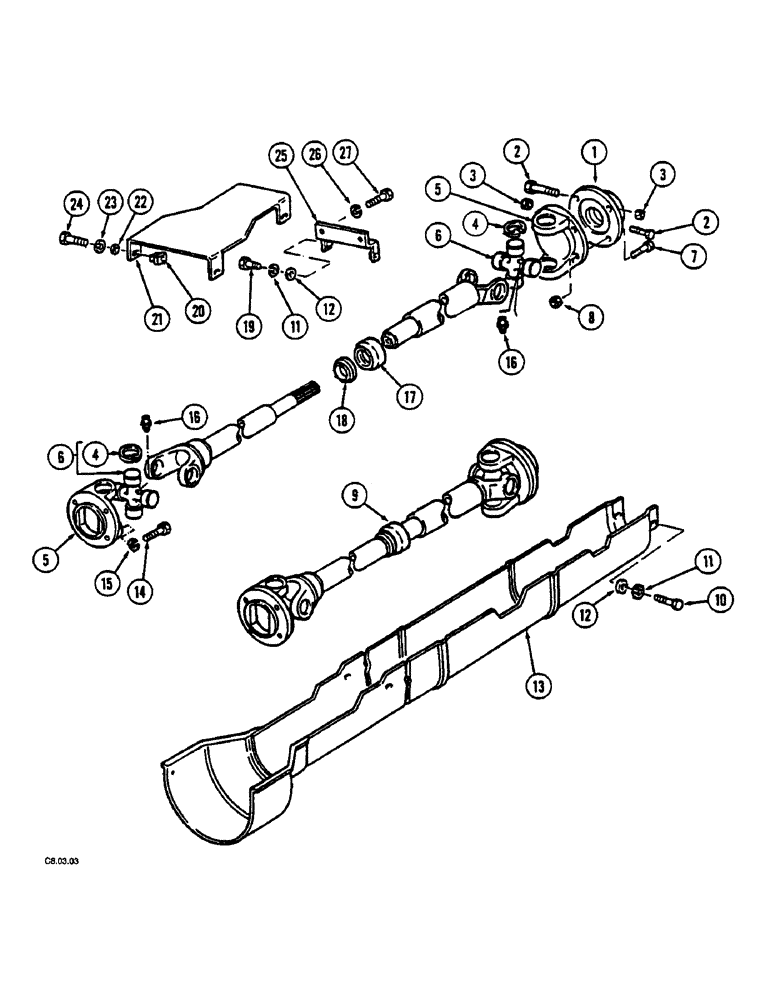

Запчасти Case IH 2150 (6-102[C]) - DRIVE SHAFT - MFD, 2150 - (P.I.N. : CGC15120-) (06) - POWER TRAIN

1

1967664C1

FLANGE

1шт.

2

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2шт.

3

K965414

NUT

M10

2шт.

4

K965336

RING, SNAP

RING SNAP

8шт.

5

137442A1

FLANGE

1шт.

6

137443A1

U-JOINT SPIDER

2шт.

7

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

M10 x 35 mm

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

137441A1

COUPLING

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

892-11008

LOCK WASHER,8mm ID

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 2 mm

4шт.

13

1547471C1

PROTECTOR

1шт.

14

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

4шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

17

137444A1

PROTECTOR

1шт.

18

137445A1

SEALING RING

1шт.

19

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

20

1547473C1

NUT

M6, 2120, 2130 Only

2шт.

21

1547472C1

PROTECTOR

2120, 2130 Only

1шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2120, 2130 Only

2шт.

23

892-11006

LOCK WASHER,M6

2120, 2130 Only

2шт.

24

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2120, 2130 Only

2шт.

25

1547469C1

SUPPORT ASSY.

1шт.

26

892-11012

LOCK WASHER,M12

2шт.

27

814-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

2шт.
