Запчасти Case IH 2140 (5-48) - FRONT WHEELS - MFD, 2120 PIN CGC6018-, 2130 PIN CGC9049-, 2140 PIN CGC12130-, 2150 PIN CGC15014- (05) - STEERING

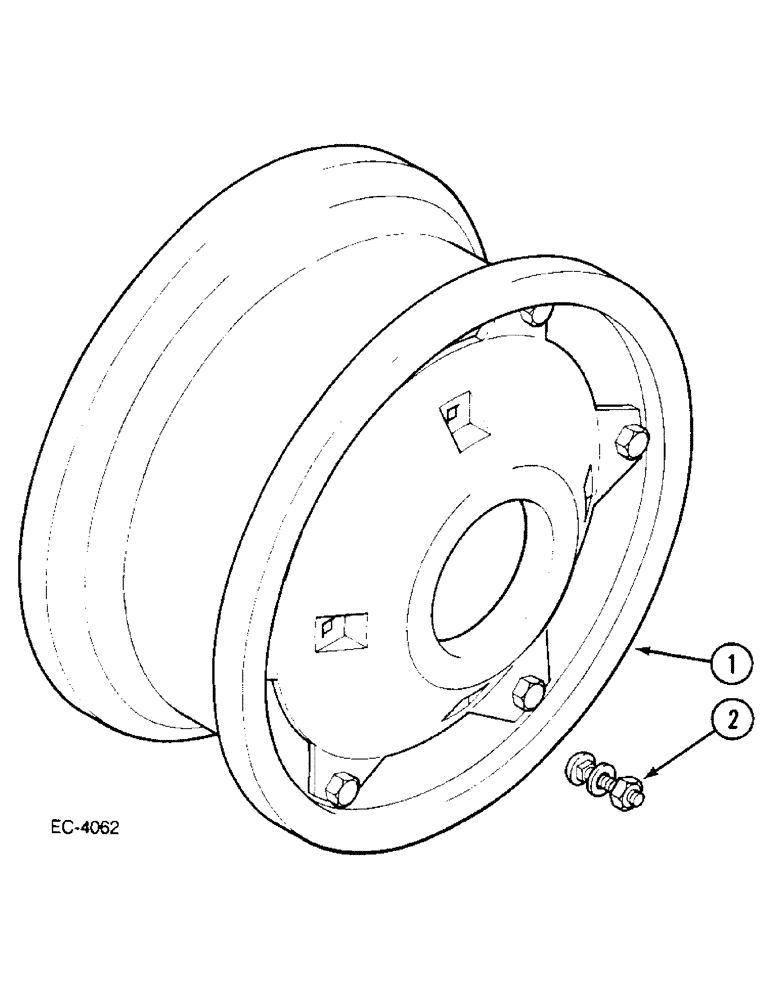

Схема запчастей Case IH 2140 - (5-48) - FRONT WHEELS - MFD, 2120 PIN CGC6018-, 2130 PIN CGC9049-, 2140 PIN CGC12130-, 2150 PIN CGC15014- (05) - STEERING
2
1

Артикул

Название

Примечание

Количество

1

113344A1

WHEEL ASSY.

5.50F X 18, For Tires 7.50 X 18

2шт.

2

1966034C1

BOLT

M16 X 40 mm

4шт.

1

113347A1

WHEEL ASSY.

5.50F X 20, For Tires 7.50 X 20

2шт.

2

1966034C1

BOLT

M16 X 40 mm

4шт.

1

113350A1

WHEEL ASSY.

W9-18, For Tires 10.50 X 18

2шт.

2

1966034C1

BOLT

M16 X 40 mm

4шт.

1

113352A1

WHEEL ASSY.

5.50F X 16, For Tires 6.0 X 16, 6.50 X 16

2шт.

2

113355A1

BOLT

M16 X 75 mm

4шт.

1

113356A1

WHEEL ASSY.

5.50F X 16, For Tires 7.5 X 16, 8.25 X 16

2шт.

2

113355A1

BOLT

M16 X 75 mm

4шт.

1

113358A1

Wheel Assy., W8-16, For Tires 9.0/75 X 16, 9.50 X 16

2шт.

For North America Only

1шт.

2

113355A1

BOLT

M16 X 75 mm

4шт.

1

113360A1

WHEEL ASSY.

6J X 15, For Tires 7.50L X 15

2шт.

2

113355A1

BOLT

M16 X 75 mm

4шт.

1

113363A1

Wheel Assy., 10LB X 15, For Tires 31.15.50

2шт.

For North America Only

1шт.

1

113364A1

WHEEL ASSY.

9.00 X 15, For Tires 10.9/75 X 15.3

2шт.

2

113355A1

BOLT

M16 X 75 mm

4шт.

Выбрано товаров: 19
