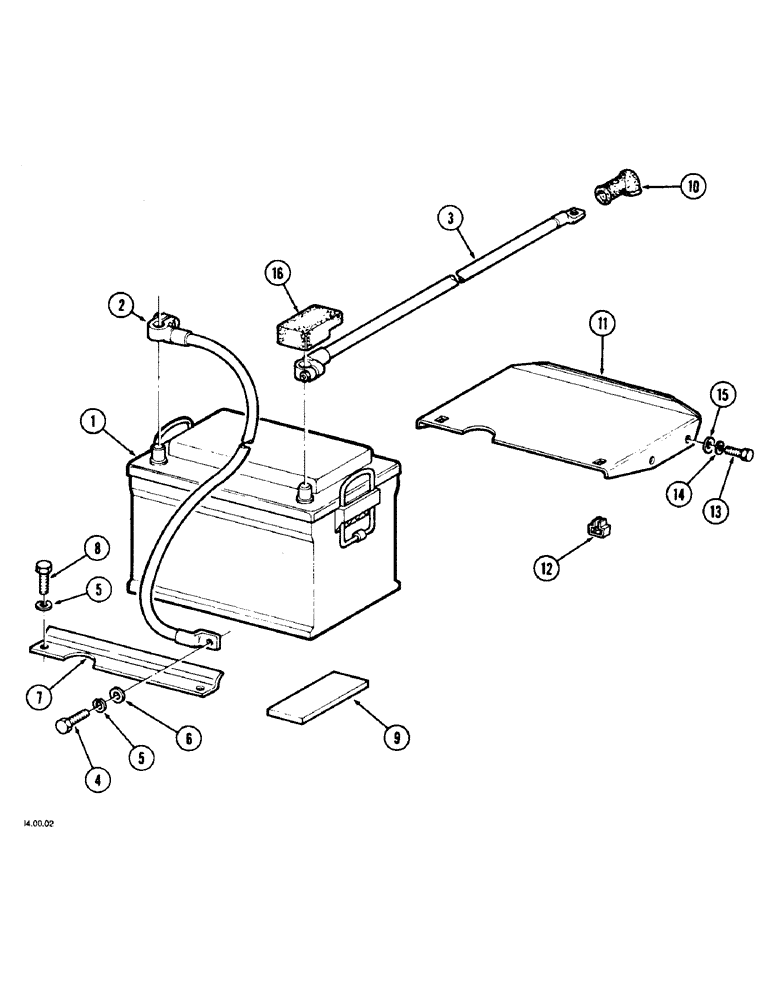

Запчасти Case IH 2140 (4-12) - BATTERY (04) - ELECTRICAL SYSTEMS

1

1530121C1

BATTERY, WET

BATTERY WET

1шт.

2

1530122C1

CABLE

1шт.

3

1530123C1

CABLE

1шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

5

892-11010

LOCK WASHER,M10

3шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

7

1547483C1

SUPPORT

2шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

9

1530125C1

PAD

2шт.

10

1530126C1

RUBBER

1шт.

11

1530528C1

COVER

1шт.

12

1530128C1

NUT

2шт.

13

3401108R1

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

M8 x 22 mm

4шт.

14

892-11008

LOCK WASHER,8mm ID

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 2 mm

4шт.

16

1530129C1

RUBBER

1шт.
