Запчасти Case IH 2140 (9-142) - LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

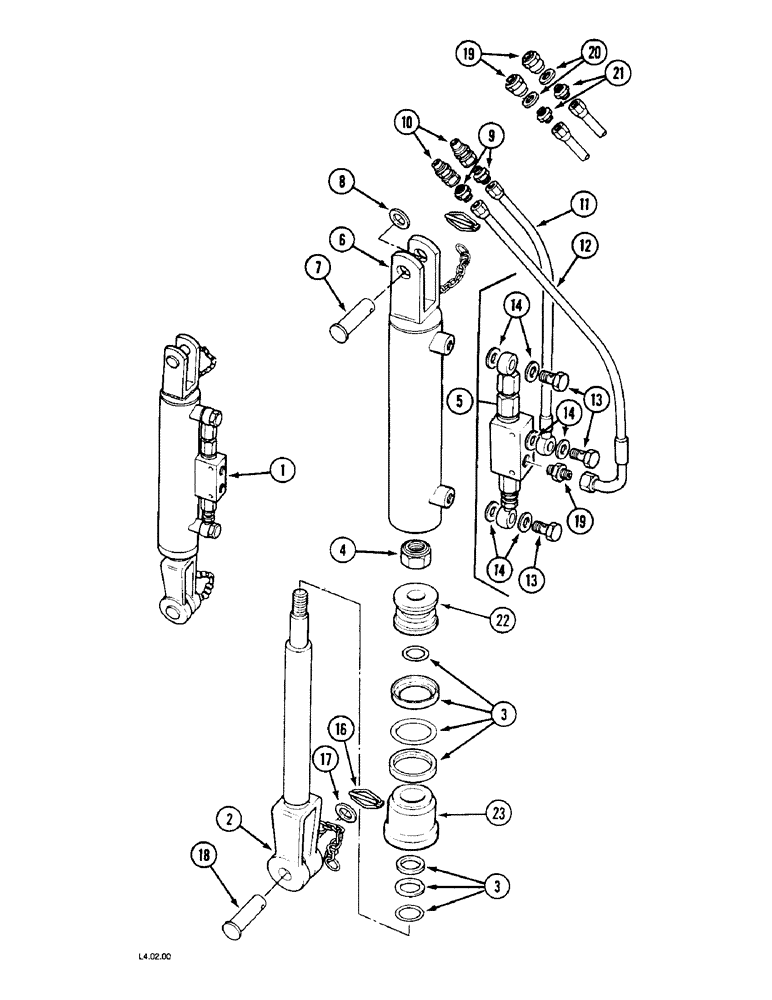

Схема запчастей Case IH 2140 - (9-142) - LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS
16
12
19
13
5
4
14
18
20
14
19
10
21
14
22
23
2
11
9
6
8
3
7
13
17
3
1

Артикул

Название

Примечание

Количество

1

1984924C1

CYLINDER ASSY.

1шт.

2

115363A1

PISTON ROD

, Serial Range: -CGC4221

1шт.

P.I.N. : (-CGC4221)

1шт.

2

1984928C1

PISTON ROD

2120, Serial Range: CGC4222-CGC6017

1шт.

2120 - (P.I.N. : CGC4222 - CGC6017), 2130 - (P.I.N. CGC4222 - CGC9044), 2140 - (P.I.N. CGC4222 - CGC12130), 2150 - (P.I.N. CGC4222 - CGC15013)

1шт.

2

1984928C1

PISTON ROD

2130, Serial Range: CGC4222-CGC9044

1шт.

2

1984928C1

PISTON ROD

2140, Serial Range: CGC4222-CGC12130

1шт.

2

1984928C1

PISTON ROD

2150, Serial Range: CGC4222-CGC15013

1шт.

3

1984929C1

SEAL KIT

, Serial Range: -CGC4221

1шт.

P.I.N. : (-CGC4221)

1шт.

3

115342A1

SEAL KIT

2120, Serial Range: CGC4222-CGC6017

1шт.

2120 - (P.I.N. : CGC4222 - CGC6017), 2130 - (P.I.N. CGC4222 - CGC9044), 2140 - (P.I.N. CGC4222 - CGC12130), 2150 - (P.I.N. CGC4222 - CGC15013)

1шт.

3

115342A1

SEAL KIT

2130, Serial Range: CGC4222-CGC9044

1шт.

3

115342A1

SEAL KIT

2140, Serial Range: CGC4222-CGC12130

1шт.

3

115342A1

SEAL KIT

2150, Serial Range: CGC4222-CGC15013

1шт.

4

115364A1

NUT

, Serial Range: -CGC4221

1шт.

P.I.N. : (-CGC4221)

1шт.

4

905846R1

NUT,M20 x 1.5, Cl 8

2120, Serial Range: CGC4222-CGC6017

1шт.

2120 - (P.I.N. : CGC4222 - CGC6017), 2130 - (P.I.N. CGC4222 - CGC9044), 2140 - (P.I.N. CGC4222 - CGC12130), 2150 - (P.I.N. CGC4222 - CGC15013)

1шт.

4

905846R1

NUT,M20 x 1.5, Cl 8

2130, Serial Range: CGC4222-CGC9044

1шт.

4

905846R1

NUT,M20 x 1.5, Cl 8

2140, Serial Range: CGC4222-CGC12130

1шт.

4

905846R1

NUT,M20 x 1.5, Cl 8

2150, Serial Range: CGC4222-CGC15013

1шт.

5

1984930C1

VALVE

1шт.

6

115365A1

JACK BODY

, Serial Range: -CGC4221

1шт.

P.I.N. : (-CGC4221)

1шт.

6

1984933C1

JACK BODY

2120, Serial Range: CGC4222-CGC6017

1шт.

2120 - (P.I.N. : CGC4222 - CGC6017), 2130 - (P.I.N. CGC4222 - CGC9044), 2140 - (P.I.N. CGC4222 - CGC12130), 2150 - (P.I.N. CGC4222 - CGC15013)

1шт.

6

1984933C1

JACK BODY

2130, Serial Range: CGC4222-CGC9044

1шт.

6

1984933C1

JACK BODY

2140, Serial Range: CGC4222-CGC12130

1шт.

6

1984933C1

JACK BODY

2150, Serial Range: CGC4222-CGC15013

1шт.

7

1984764C1

PIN

1шт.

8

1966645C1

WASHER

2120, 2130, 2140

1шт.

For Vineyard Tractors

1шт.

9

1984931C1

FITTING

2шт.

10

1984932C1

COUPLING

2шт.

11

1984926C1

HOSE

1шт.

12

1984925C1

HOSE

1шт.

13

1967981C1

BANJO BOLT

3шт.

14

1984920C1

WASHER

3шт.

15

1984923C1

ELBOW

1шт.

Not Illustrated

1шт.

16

1966256C1

LINCH PIN

2шт.

17

1984762C1

WASHER

1шт.

18

1984766C1

PIN

1шт.

19

1984921C1

COUPLING

2шт.

20

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

21

1984922C1

FITTING

2шт.

22

115366A1

PISTON

, Serial Range: -CGC4221

1шт.

P.I.N. : (-CGC4221)

1шт.

22

115341A1

PISTON

2120, Serial Range: CGC4222-CGC6017

1шт.

2120 - (P.I.N. : CGC4222 - CGC6017), 2130 - (P.I.N. CGC4222 - CGC9044), 2140 - (P.I.N. CGC4222 - CGC12130), 2150 - (P.I.N. CGC4222 - CGC15013)

1шт.

22

115341A1

PISTON

2130, Serial Range: CGC4222-CGC9044

1шт.

22

115341A1

PISTON

2140, Serial Range: CGC4222-CGC12130

1шт.

22

115341A1

PISTON

2150, Serial Range: CGC4222-CGC15013

1шт.

23

115367A1

CYLINDER END CAP

, Serial Range: -CGC4221

1шт.

P.I.N. : (-CGC4221)

1шт.

23

115343A1

CYLINDER END CAP

2120, Serial Range: CGC4222-CGC6017

1шт.

2120 - (P.I.N. : CGC4222 - CGC6017), 2130 - (P.I.N. CGC4222 - CGC9044), 2140 - (P.I.N. CGC4222 - CGC12130), 2150 - (P.I.N. CGC4222 - CGC15013)

1шт.

23

115343A1

CYLINDER END CAP

2130, Serial Range: CGC4222-CGC9044

1шт.

23

115343A1

CYLINDER END CAP

2140, Serial Range: CGC4222-CGC12130

1шт.

23

115343A1

CYLINDER END CAP

2150, Serial Range: CGC4222-CGC15013

1шт.

Выбрано товаров: 61
