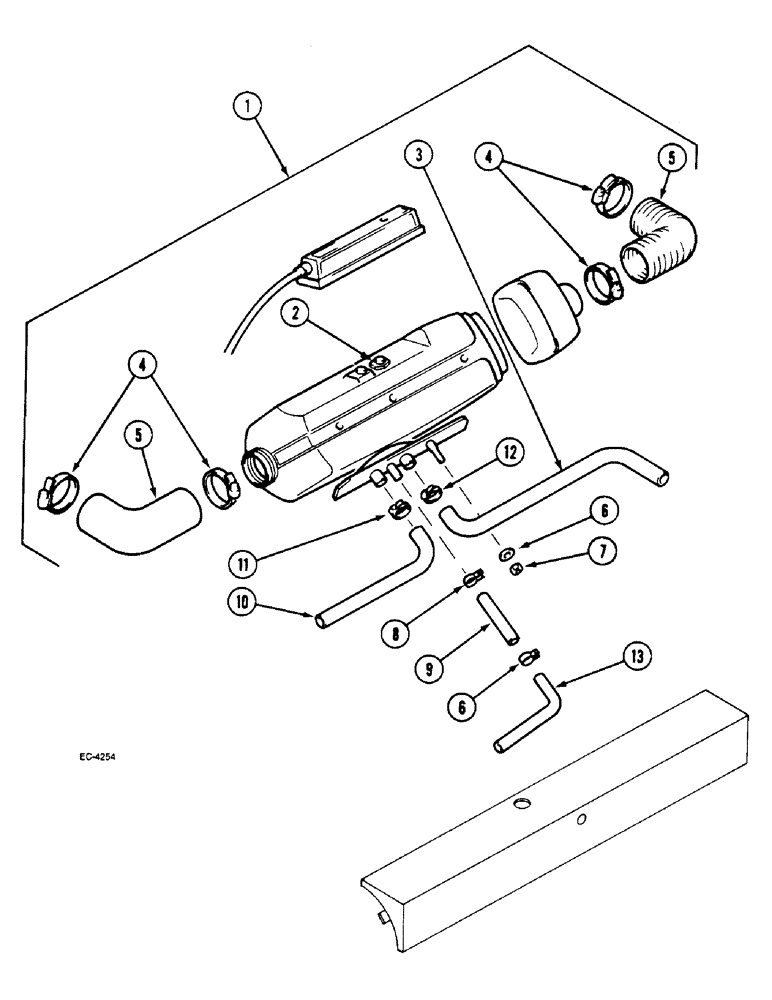

Запчасти Case IH 2140 (9-070) - HEATER 93 (09) - CHASSIS/ATTACHMENTS

1

140088A1

HEATER ASSY.

Consists of: 2, 3, 4, 5

1шт.

2

140089A1

HEATER PLUG

1шт.

3

140090A1

TUBE

1шт.

4

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

4шт.

5

140080A1

LOOM

2шт.

6

892-11006

LOCK WASHER,M6

5шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

5шт.

8

140091A1

CLAMP

2шт.

9

140092A1

PIPE

1шт.

10

140093A1

TUBE

1шт.

11

214-1712

HOSE CLAMP,17.53mm - 31.75mm

1шт.

12

140094A1

CLAMP

1шт.

13

140095A1

PIPE

1шт.
