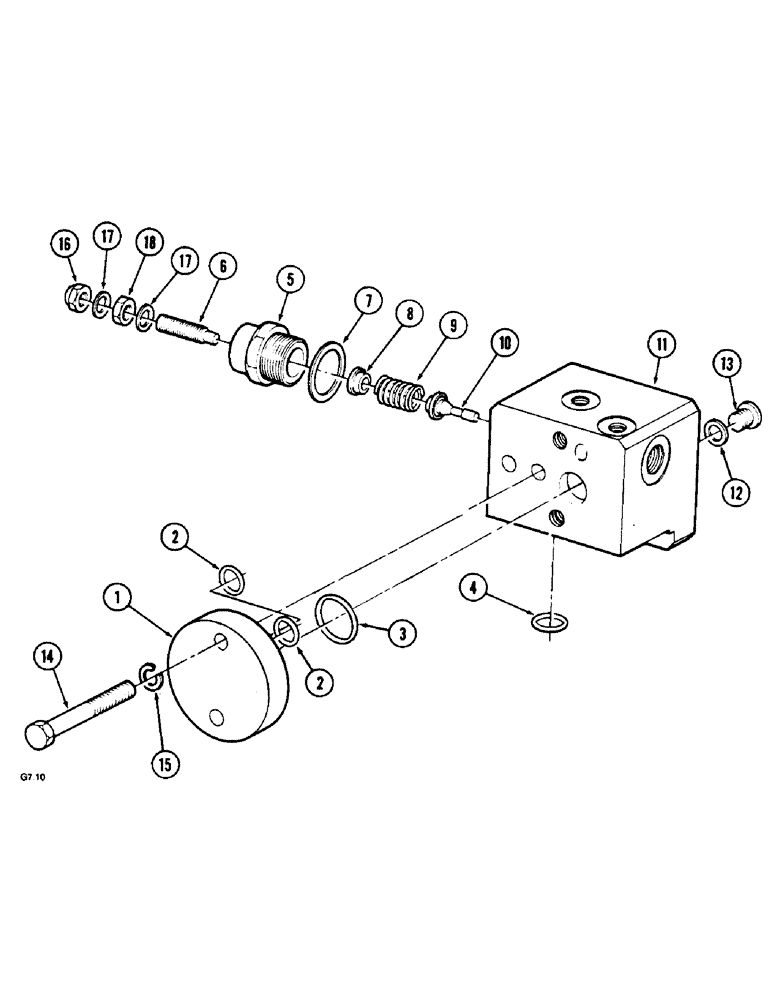

Запчасти Case IH 2140 (8-72[B]) - REMOTE CONTROL SUPPLY VALVE, 2140 - (P.I.N. : -CGC12130) (08) - HYDRAULICS

1

1530087C1

PLATE ASSY.

1шт.

2

1966045C1

O-RING

2шт.

3

1530079C1

O-RING

1шт.

4

1530088C1

O-RING

1шт.

5

1530089C1

PLUG

1шт.

6

1530090C1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

7

1530091C1

WASHER

1шт.

8

1530092C1

HOLDER

1шт.

9

1530064C1

SPRING

1шт.

10

1530093C1

SPOOL

1шт.

11

1967703C1

VALVE

1шт.

12

1530094C1

WASHER

1шт.

13

1530095C1

BOLT,Hex, 1 1/2" - 8 x 5", Gr 8

1шт.

14

1530096C1

BOLT

Version with Single Acting Control Valve

2шт.

14

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

Version with Double Acting Control Valve

2шт.

15

892-1110

LOCK WASHER,M10

2шт.

16

30674R1

CROWN NUT,Crown, M8, Cl6

1шт.

17

3053133R1

SEALING RING,M8 x 11.5 x 1

2шт.

18

825-1108

NUT,Hex, M8, Cl 8

1шт.
