(9-116[A]) - LOWER LINKS - THREE POINT HITCH, VINEYARD VERSION ONLY, 2130 - (P.I.N. : -CGC4445)

Запчасти Case IH 2130 (9-116[A]) - LOWER LINKS - THREE POINT HITCH, VINEYARD VERSION ONLY, 2130 - (P.I.N. : -CGC4445) (09) - CHASSIS/ATTACHMENTS

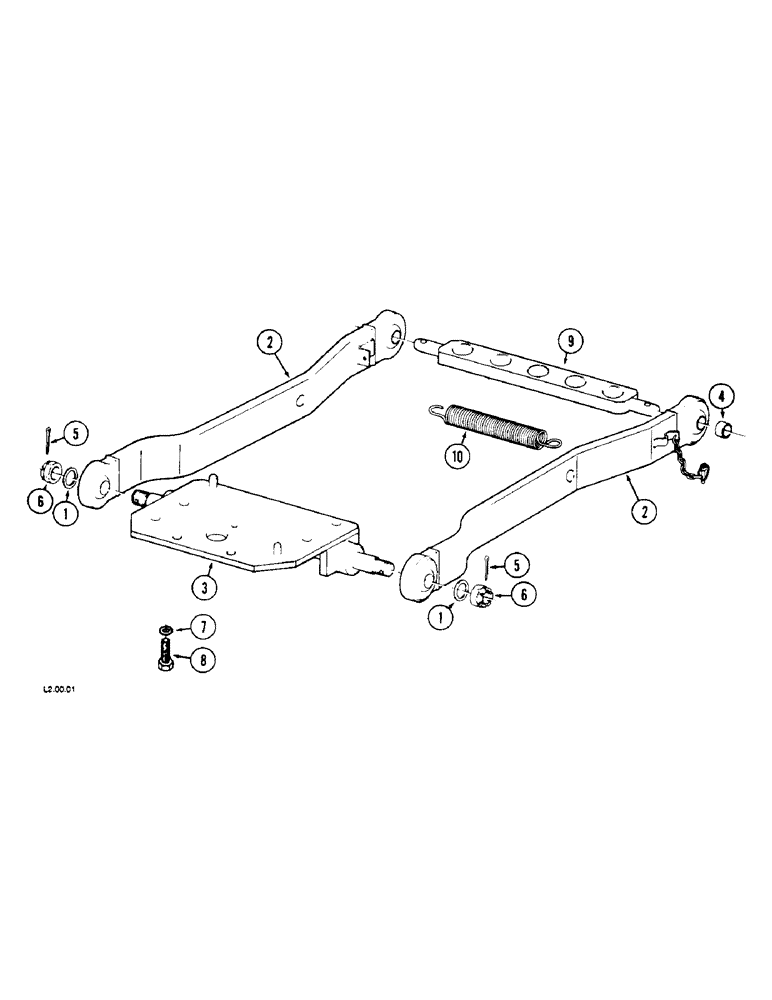

Схема запчастей Case IH 2130 - (9-116[A]) - LOWER LINKS - THREE POINT HITCH, VINEYARD VERSION ONLY, 2130 - (P.I.N. : -CGC4445) (09) - CHASSIS/ATTACHMENTS
10
5
6
1
2
3
5
7
8
9
2
4
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1966644C1

WASHER

1шт.

2

1984760C1

LOWER LINK

2шт.

3

1966248C1

SUPPORT

1шт.

4

1966260C1

BUSHING

2шт.

5

632-707

COTTER PIN,M5 x 50

2шт.

6

905808R1

CROWN NUT,Crown, M24 x 2, Cl6

2шт.

7

892-1116

LOCK WASHER,M16

4шт.

8

111233A1

BOLT

M16 x 35 mm

4шт.

9

1966223C1

DRAWBAR

Cat. 1 N

1шт.

10

1966224C1

SPRING

1шт.
