Запчасти Case IH 2130 (9-098[A]) - REAR FENDERS AND EXTENSIONS, 2130 - (P.I.N. : -CGC9044) (09) - CHASSIS/ATTACHMENTS

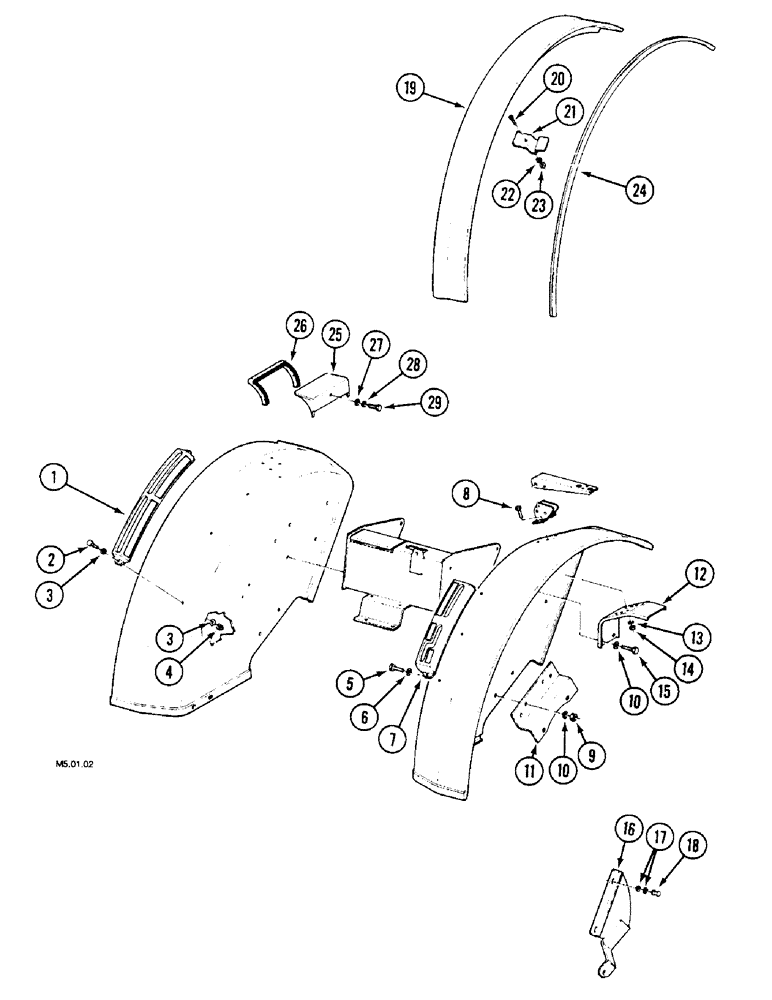

Схема запчастей Case IH 2130 - (9-098[A]) - REAR FENDERS AND EXTENSIONS, 2130 - (P.I.N. : -CGC9044) (09) - CHASSIS/ATTACHMENTS
11
9
4
10
1
3
21
13
23
28
2
24
5
10
16
15
25
19
3
22
20
8
18
6
17
27
12
29
7
26
14

Артикул

Название

Примечание

Количество

1

1966589C1

SUPPORT

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

4

832-41306

NUT,M6 x 1, Cl 10

6шт.

5

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

Version without Cab

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Version without Cab

1шт.

7

1967717C1

SECTOR

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

Version without Cab

1шт.

9

825-1410

NUT,M10, Cl 8

4шт.

Version without Cab

1шт.

10

892-11010

LOCK WASHER,M10

8шт.

Version without Cab

1шт.

11

1530604C1

SUPPORT

2шт.

Version without Cab

1шт.

For Vineyard Tractors

1шт.

11

1530554C1

SUPPORT

2шт.

Version without Cab

1шт.

For Narrow Tractors

1шт.

12

1967787C1

BRACKET

2шт.

13

892-11008

LOCK WASHER,8mm ID

8шт.

14

825-1408

NUT,M8, Cl 8

8шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

16

102744A1

PROTECTOR

Right

1шт.

With Lower Fenders

1шт.

For Vineyard Tractors

1шт.

16

1547484C1

PROTECTOR

Right

1шт.

Germany Only

1шт.

For Vineyard Tractors

1шт.

16

102745A1

PROTECTOR

Left

1шт.

With Lower Fenders

1шт.

16

1547485C1

PROTECTOR

Left

1шт.

Germany Only

1шт.

For Vineyard Tractors

1шт.

17

1530602C1

WASHER

8шт.

Germany Only

1шт.

For Vineyard Tractors

1шт.

18

1547486C1

RIVET

4шт.

Germany Only

1шт.

For Vineyard Tractors

1шт.

19

102743A1

WIDENING

130 mm

2шт.

With Lower Fenders

1шт.

19

1530439C1

WIDENING

130 mm

2шт.

Germany Only

1шт.

19

1530440C1

WIDENING

165 mm

2шт.

Germany Only

1шт.

20

1530163C1

SCREW,M5 x 20mm

10шт.

Germany Only

1шт.

21

1530441C1

ANCHOR

10шт.

Germany Only

1шт.

22

892-11005

LOCK WASHER,M5

10шт.

Germany Only

1шт.

23

825-1405

NUT,M5, Cl 8

10шт.

Germany Only

1шт.

24

1530542C1

PROTECTOR

Rubber

2шт.

24

102742A1

PROTECTOR

2шт.

With Lower Fenders

1шт.

25

102747A1

PROTECTOR

2шт.

With Lower Fenders

1шт.

26

102746A1

PROTECTOR

2шт.

With Lower Fenders

1шт.

27

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

With Lower Fenders

1шт.

28

892-11005

LOCK WASHER,M5

2шт.

With Lower Fenders

1шт.

29

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

With Lower Fenders

1шт.

1530543C1

PACKAGE

1шт.

Not Illustrated

1шт.

1530544C1

WIDENING

1шт.

Not Illustrated

1шт.

Выбрано товаров: 73
