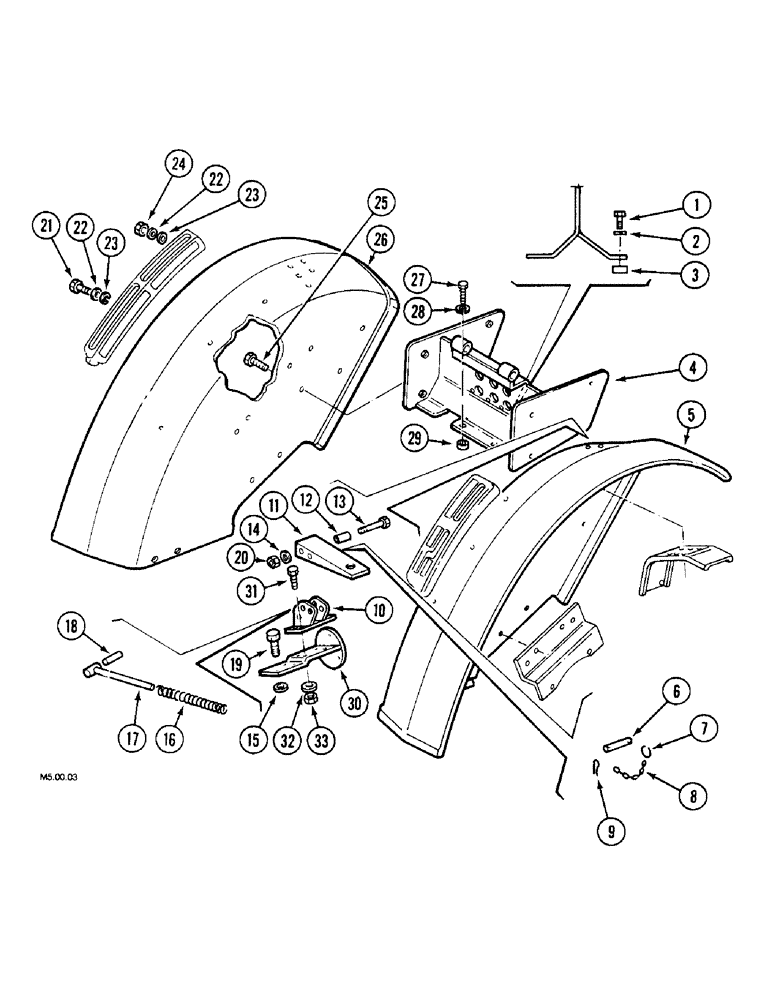

Запчасти Case IH 2130 (9-094[A]) - REAR FENDERS, 2130 - (P.I.N. : CGC9045-) (09) - CHASSIS/ATTACHMENTS
![Схема запчастей Case IH 2130 - (9-094[A]) - REAR FENDERS, 2130 - (P.I.N. : CGC9045-) (09) - CHASSIS/ATTACHMENTS](https://partsell.ru/storage/images/caseih/801673.png)
№
Артикул
Название
Примечание
Количество
1
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
2шт.
2
892-11010
LOCK WASHER,M10
2шт.
3
1967779C1
SPACER
2шт.
4
115350A1
SUPPORT ASSY.
1шт.
Version without Cab
1шт.
For Narrow Tractors
1шт.
4
115354A1
SUPPORT ASSY.
1шт.
Version without Cab with Lower Fenders
1шт.
For Narrow Tractors
1шт.
4
115351A1
SUPPORT ASSY.
1шт.
Version without Cab
1шт.
For Vineyard Tractors
1шт.
4
115353A1
SUPPORT ASSY.
1шт.
Version without Cab with Lower Fenders
1шт.
For Vineyard Tractors
1шт.
5
1530551C1
MUD DEFLECTOR
Left
1шт.
5
102738A1
FENDER ASSY.
Left
1шт.
Version without Cab with Lower Fenders
1шт.
6
1967802C1
PIN
2шт.
Version without Cab
1шт.
7
1967808C1
RING
2шт.
Version without Cab
1шт.
8
1967824C1
CHAIN (AG)
2шт.
Version without Cab
1шт.
9
1966873C1
SPLIT PIN/SAFETY PIN
2шт.
Version without Cab
1шт.
10
1967784C1
BRACKET
2шт.
Version without Cab
1шт.
11
1967785C1
HOLDER
2шт.
Version without Cab
1шт.
12
1967781C1
SPACER
2шт.
Version without Cab
1шт.
13
814-8055
BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8
2шт.
Version without Cab
1шт.
14
892-11008
LOCK WASHER,8mm ID
4шт.
Version without Cab
1шт.
15
1967786C1
PAD, RUBBER
6шт.
Version without Cab
1шт.
15
1967786C1
PAD, RUBBER
8шт.
Version without Cab with Lower Fenders
1шт.
16
1967780C1
SPRING
2шт.
Version without Cab
1шт.
17
1967777C1
STEM
2шт.
Version without Cab
1шт.
18
838-3636
PIN,M6 x 36, Coiled
6 x 36 mm
2шт.
Version without Cab
1шт.
19
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
8шт.
Version without Cab
1шт.
20
825-1408
NUT,M8, Cl 8
2шт.
Version without Cab
1шт.
21
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
4шт.
22
892-1110
LOCK WASHER,M10
18шт.
23
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
10шт.
24
825-1110
NUT,M10, Cl 8
8шт.
25
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
8шт.
Version without Cab
1шт.
26
1530552C1
MUD DEFLECTOR
Right
1шт.
26
102737A1
FENDER ASSY.
Right
1шт.
Version without Cab with Lower Fenders
1шт.
27
614-14040
BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd
2шт.
Version without Cab
1шт.
28
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
2шт.
Version without Cab
1шт.
29
115352A1
SPACER
2шт.
Version without Cab
1шт.
30
115355A1
SUPPORT
Left
1шт.
Version without Cab with Lower Fenders
1шт.
30
115356A1
SUPPORT
Right
1шт.
Version without Cab with Lower Fenders
1шт.
31
614-8018
BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd
M8 x 18 mm
8шт.
Version without Cab with Lower Fenders
1шт.
32
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
flat, 9 x 17 x 2 mm
8шт.
Version without Cab with Lower Fenders
1шт.
33
825-1408
NUT,M8, Cl 8
8шт.
Version without Cab with Lower Fenders
1шт.
Выбрано товаров: 75
