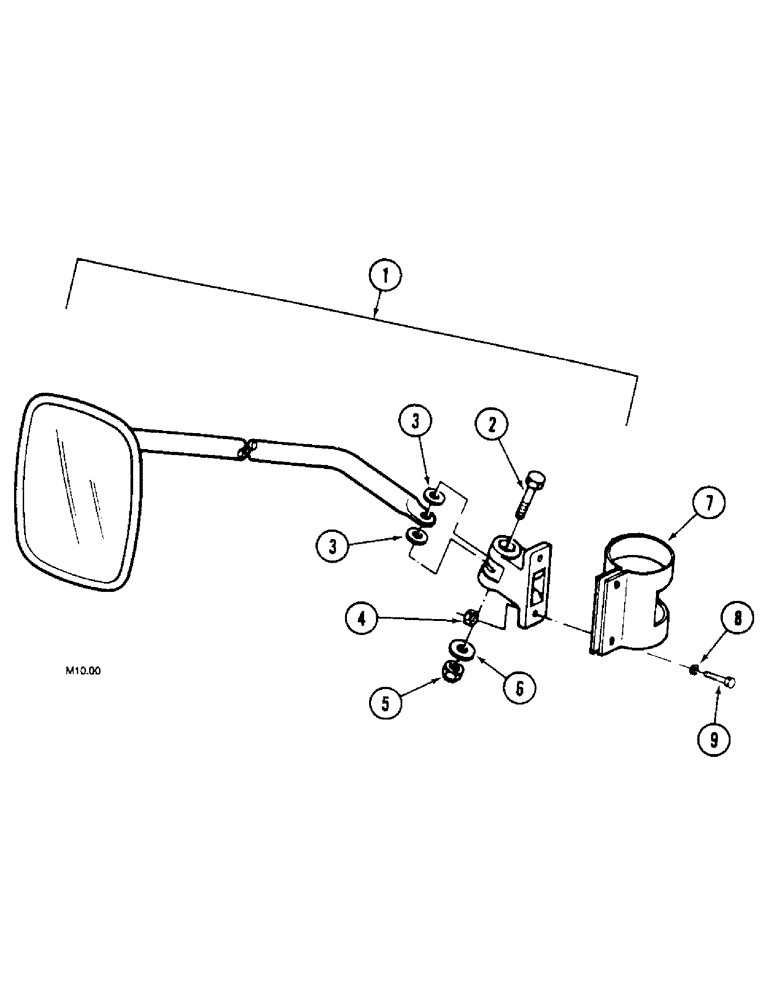

Запчасти Case IH 2130 (9-090) - REAR VIEW MIRROR, VERSION WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

1530223C1

MIRROR ASSY.

1шт.

2

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

933973R1

THIN NUT,Thin, M6 x 1, Cl 04

M6

1шт.

5

1530225C1

NUT

1шт.

6

1530226C1

WASHER

1шт.

7

1530227C1

SUPPORT

1шт.

8

892-11006

LOCK WASHER,M6

2шт.

9

1530228C1

BOLT

2шт.
