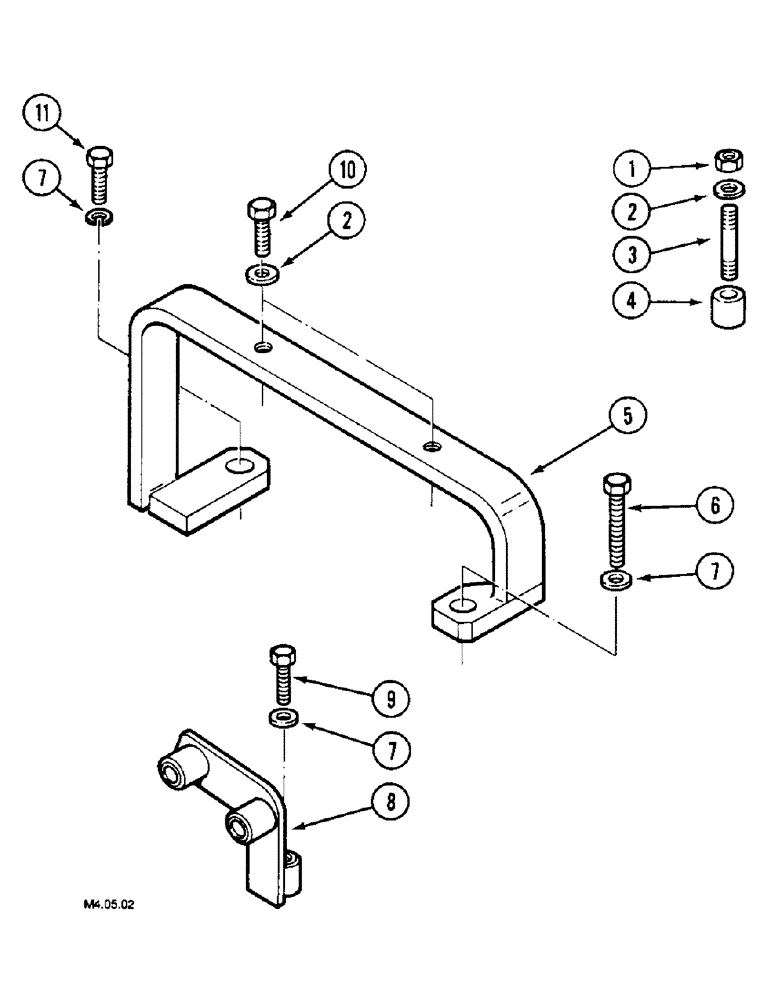

Запчасти Case IH 2130 (9-084[A]) - SEAT, SUPPORT, VERSION WITHOUT CAB, 2130 - (P.I.N. : CGC9045-) (09) - CHASSIS/ATTACHMENTS

1

825-1408

NUT,M8, Cl 8

2шт.

2

892-11008

LOCK WASHER,8mm ID

4шт.

3

1530194C1

STUD

2шт.

4

115347A1

SPACER

2шт.

5

115348A1

SUPPORT ASSY.

1шт.

6

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

1шт.

7

892-11010

LOCK WASHER,M10

3шт.

8

115349A1

SUPPORT

1шт.

9

864-10050

HEX SOC SCREW,M10 x 50mm, Cl 8.8

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.
