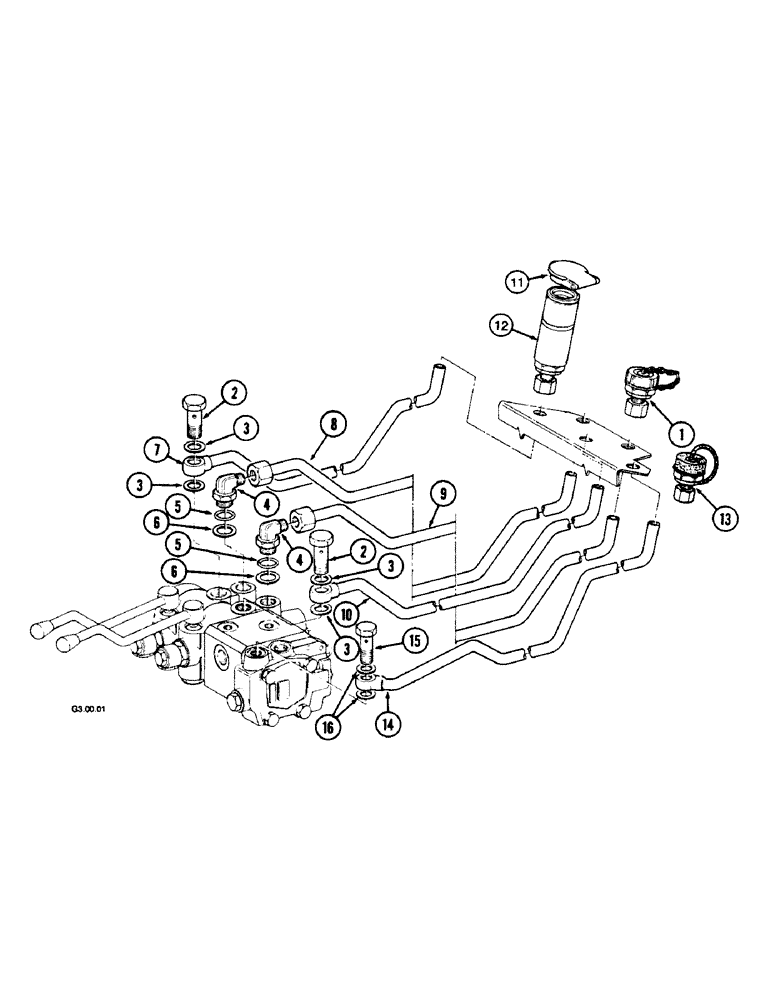

Запчасти Case IH 2130 (8-44[A]) - HYDRAULIC LIFT, PIPING, REMOTE VALVES, 2130 - (P.I.N. : -CGC9044) (08) - HYDRAULICS

1

1966921C1

COUPLING

4шт.

2

905842R1

SCREW,Hex, M18 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT

2шт.

3

933811R1

WASHER

4шт.

4

1967545C1

CONNECTOR, ELEC

CONNECTOR

2шт.

5

1966907C1

O-RING,0.103" Thk x 0.612" ID, -114

2шт.

6

1967998C1

WASHER

2шт.

7

1967746C1

PIPE

, Serial Range: -CGC1866

1шт.

7

1530560C1

PIPE

, Serial Range: CGC1867-CGC9044

1шт.

8

1967747C1

PIPE

, Serial Range: -CGC1866

1шт.

8

1530561C1

PIPE

, Serial Range: CGC1867-CGC9044

1шт.

9

1967745C1

TUBE

, Serial Range: -CGC1866

1шт.

9

1530559C1

PIPE

, Serial Range: CGC1867-CGC9044

1шт.

10

1530026C1

PIPE

, Serial Range: -CGC1866

1шт.

10

1530558C1

PIPE

, Serial Range: CGC1867-CGC9044

1шт.

11

1967860C1

COVER

4шт.

12

1967859C1

SPLINED COUPLING

4шт.

13

1966920C1

CONNECTOR, ELEC

CONNECTOR

1шт.

14

1967749C1

PIPE

, Serial Range: -CGC1866

1шт.

14

118170A1

PIPE

, Serial Range: CGC1867-CGC9044

1шт.

15

1966911C1

BOLT,M16 x 1.5 x 27mm

1шт.

16

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.
