Запчасти Case IH 2120 (5-24) - STEERING CYLINDER, CONNECTIONS - MFD, VINEYARD VERSION ONLY, 2120, 2130 AND 2140 (05) - STEERING

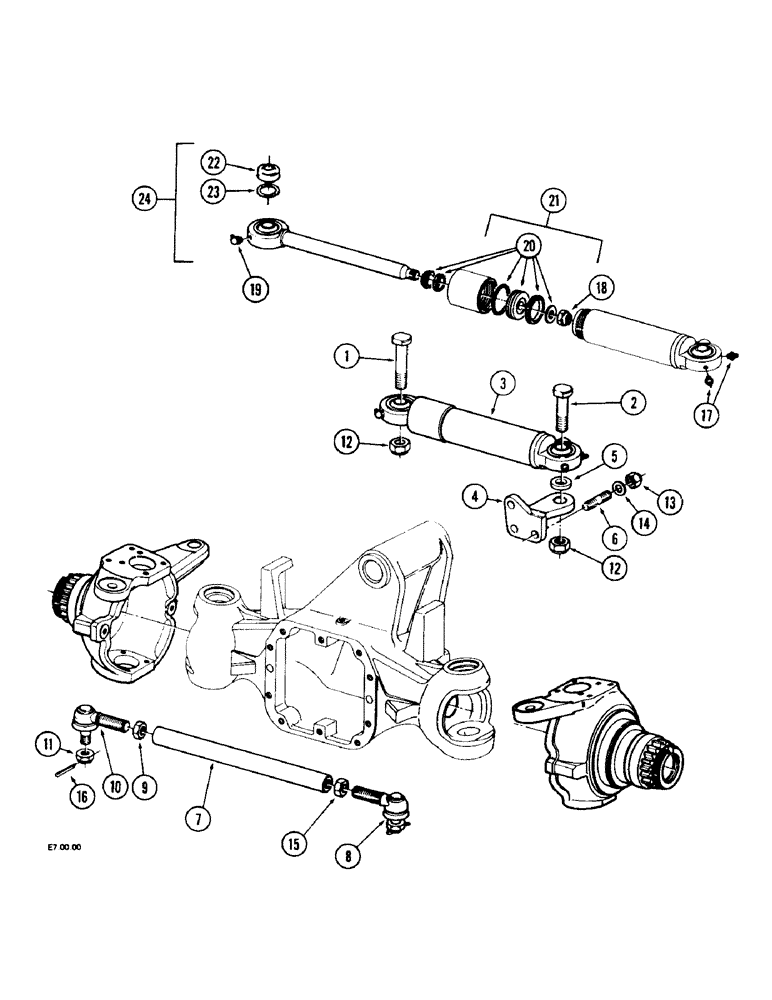

Схема запчастей Case IH 2120 - (5-24) - STEERING CYLINDER, CONNECTIONS - MFD, VINEYARD VERSION ONLY, 2120, 2130 AND 2140 (05) - STEERING
1
23
6
7
14
3
22
24
17
8
2
10
11
5
12
19
20
21
13
9
12
18
4
15
16

Артикул

Название

Примечание

Количество

1

K395106

BOLT

1шт.

2

1966572C1

BOLT

1шт.

3

Cylinder, Steering, Order 1547401C1, See Figure 5-28

1шт.

4

1966220C1

SUPPORT

1шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

5

1966158C1

SPACER

1шт.

6

1966642C1

STUD

3шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

7

1966274C1

ROD

1шт.

8

K261842

BALL JOINT

1шт.

9

1966563C1

NUT

1шт.

10

K261841

BALL JOINT

1шт.

11

1966626C1

NUT

2шт.

12

905877R1

NUT,M22 x 1.5, G8

2шт.

13

905873R1

NUT,M14 x 1.5, G8

3шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

14

1966600C1

WASHER

3шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

15

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

16

632-632

COTTER PIN,M3.2 x 32

2шт.

17

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

18

102894A1

LOCK NUT

1шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

19

905251R1

LUBE NIPPLE,90 Degree, M6 x 1

1шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

20

1966062C1

GASKET KIT

1шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

21

1966061C1

PACKAGE, REPAIR

1шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

22

1966059C1

BEARING CAP

2шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

23

K262195

RING, LOCKING

RING, LOCK

2шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

24

1966060C1

ROD

SPARE PART

1шт.

2120 - (P.I.N. -CGC6018), 2130 - (P.I.N. -CGC9052), 2140 (P.I.N. -CGC12134)

1шт.

Выбрано товаров: 36
