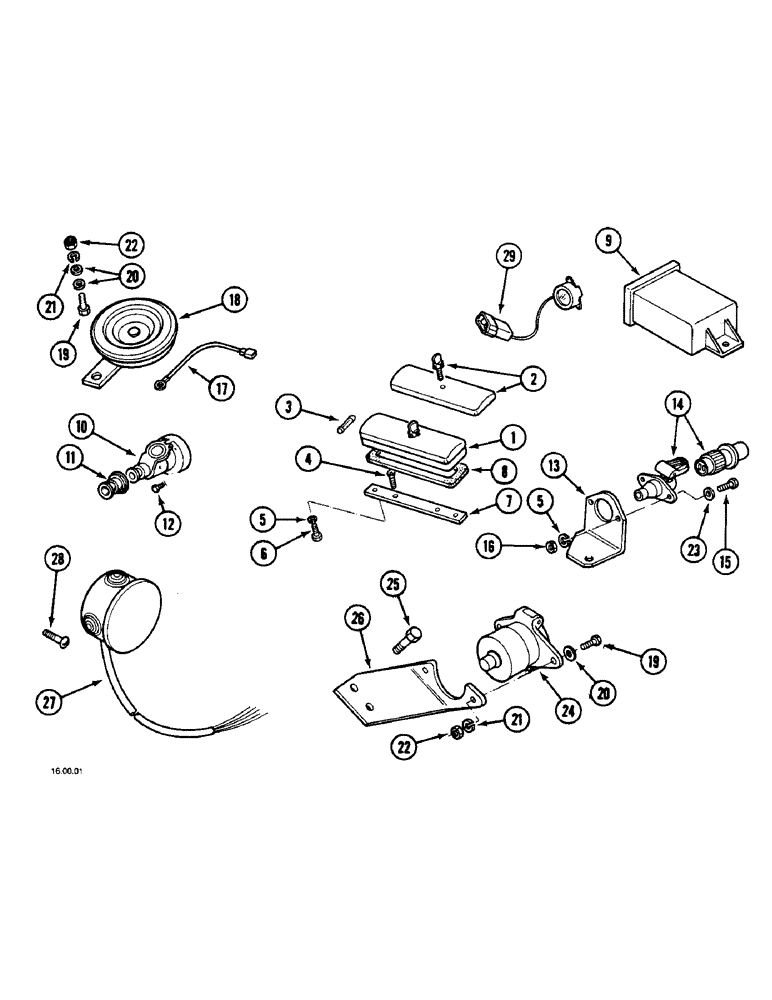

Запчасти Case IH 2120 (4-24[A]) - HORN - FUSES AND SOCKET, 2120 - (P.I.N. -CGC6017), 2130 - (P.I.N. -CGC9044) (04) - ELECTRICAL SYSTEMS

1

1967834C1

BOX, FUSE

1шт.

2

1966858C1

LID

1шт.

3

3021478R1

FUSE,A8, White

8 Amp

11шт.

3

3401403R1

FUSE

25 Amp

1шт.

4

905888R1

HEX SOC SCREW,Flat Hd, CSK, M5 x 35mm, Cl 8.8

M5 x 35 mm

2шт.

5

892-11005

LOCK WASHER,M5

4шт.

6

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

2шт.

7

1967886C1

BRACKET

1шт.

8

1967832C1

GASKET

1шт.

9

1984941C1

FLASHER UNIT

1шт.

10

3142496R1

SOCKET/RECEPTACLE,A7

7 Pin

1шт.

11

1966954C1

BOX

1шт.

12

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

3шт.

17

1984751C1

CABLE

1шт.

18

1984752C1

HORN

1шт.

19

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

892-11006

LOCK WASHER,M6

3шт.

22

933973R1

THIN NUT,Thin, M6 x 1, Cl 04

3шт.

24

1984884C1

CONNECTOR, ELEC

CONNECTOR 7 Pin Socket

1шт.

For North America Only

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

For North America Only

1шт.

26

1984836C1

SUPPORT

1шт.

For North America Only

1шт.

27

1984837C1

HARNESS

Service

1шт.

For North America Only

1шт.

28

1967973C1

SCREW

3шт.

For North America Only

1шт.

29

1984841C1

BUZZER

Warning Light

1шт.
