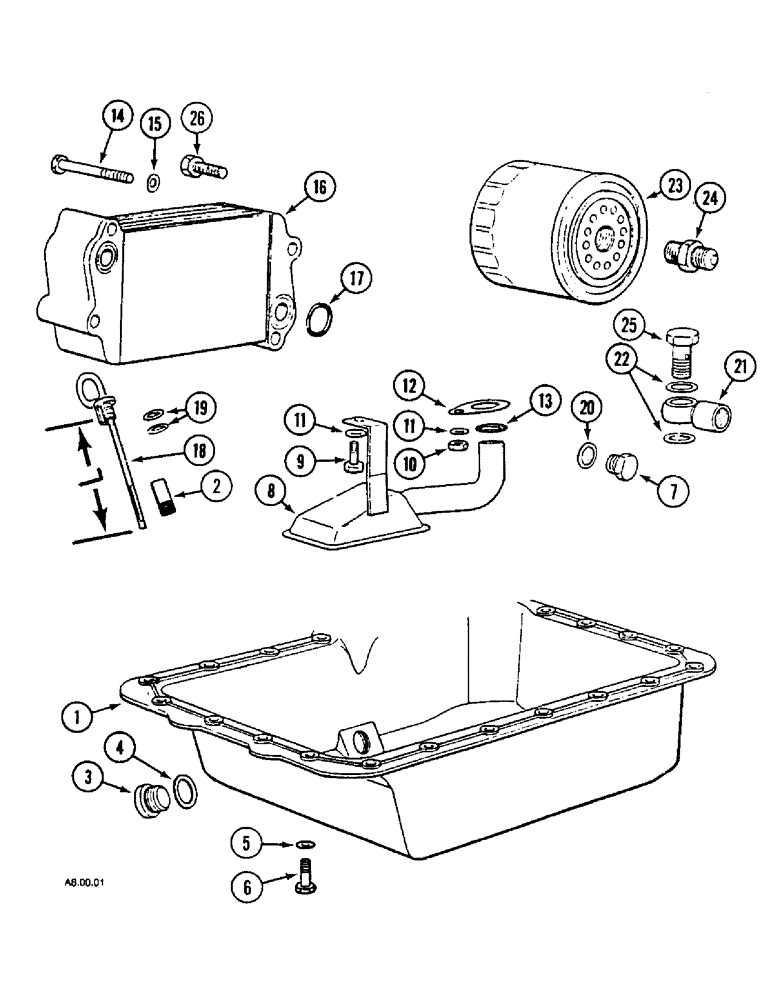

Запчасти Case IH 2120 (2-54) - OIL PAN AND CONNECTIONS (3 CYL), LATER PRODUCTION, 2120, 2130 (02) - ENGINE

1

1966423C1

PAN, ENGINE OIL

PAN, OIL

1шт.

2

1530460C1

ADAPTER

1шт.

3

1547400C1

PLUG

1шт.

4

1966808C1

WASHER

1шт.

5

892-11008

LOCK WASHER,8mm ID

22шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

22шт.

7

1530346C1

PLUG

1шт.

8

1966424C1

PIPE

1шт.

9

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

10

825-1408

NUT,M8, Cl 8

1шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

12

1966324C1

FLANGE

1шт.

13

1966699C1

O-RING

1шт.

14

864-8050

HEX SOC SCREW,M8 x 50mm, Cl 8.8

M8 x 50 mm

2шт.

15

1966599C1

WASHER

4шт.

16

1966445C1

COOLER, OIL

1шт.

17

1966702C1

O-RING

2шт.

18

1966407C1

DIPSTICK

106 mm, With Adapter Ref. 2

1шт.

18

1530461C1

DIPSTICK

78 mm, W/Out Adapter Ref. 2

1шт.

19

1966703C1

O-RING

2шт.

20

1966473C1

GASKET

12,2 x 18 mm

1шт.

21

1966004C1

JOINT

1шт.

22

1966473C1

GASKET

12,2 x 18 mm

2шт.

23

1966279C1

FILTER, ENGINE OIL

FILTER, OIL

1шт.

24

1966500C1

FITTING

1шт.

25

1530347C1

BANJO BOLT

1шт.

26

1966761C1

BOLT

2шт.
