(9-118) - LOWER LINKS - THREE POINT HITCH, VINEYARD VERSION ONLY, 2120 - (P.I.N. : CGC4371-)

Запчасти Case IH 2120 (9-118) - LOWER LINKS - THREE POINT HITCH, VINEYARD VERSION ONLY, 2120 - (P.I.N. : CGC4371-) (09) - CHASSIS/ATTACHMENTS

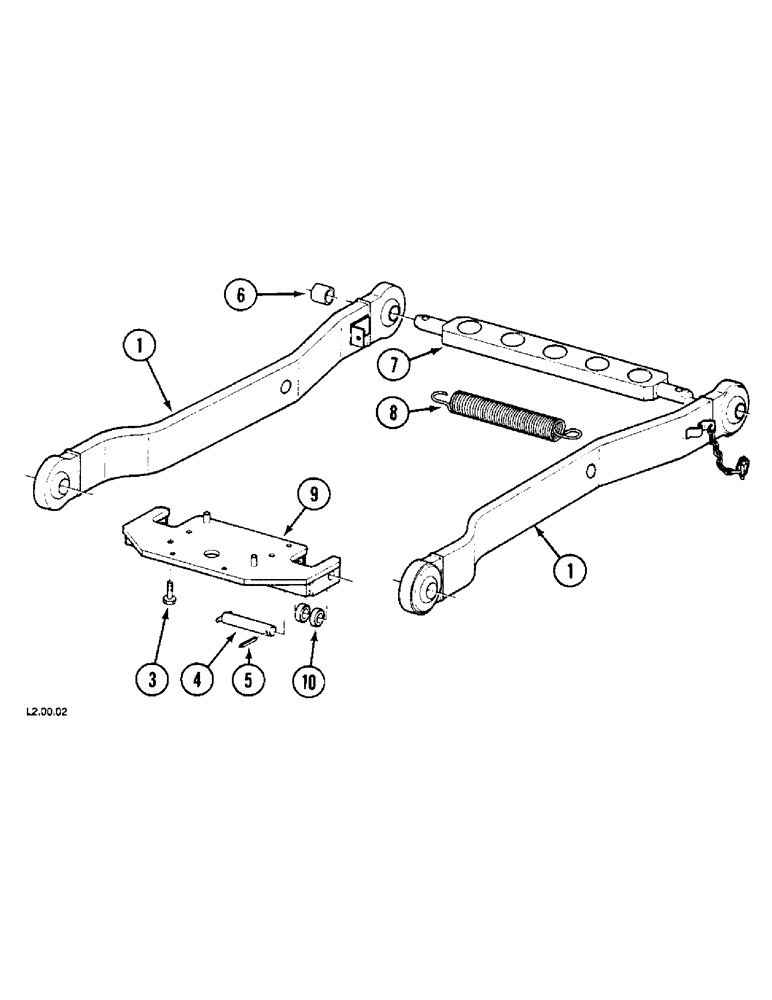

Схема запчастей Case IH 2120 - (9-118) - LOWER LINKS - THREE POINT HITCH, VINEYARD VERSION ONLY, 2120 - (P.I.N. : CGC4371-) (09) - CHASSIS/ATTACHMENTS
10
7
3
1
1
9
5
8
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1984760C1

LOWER LINK

2шт.

3

806-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9

M16 x 35 mm

4шт.

4

1547475C1

HITCH PIN

2шт.

5

838-3540

PIN,M5 x 40, Coiled

5 x 40 mm

2шт.

5

838-3850

PIN,M8 x 50, Coiled

8 x 50 mm

2шт.

6

1966260C1

BUSHING

2шт.

7

1966223C1

DRAWBAR

Cat. 1 N

1шт.

8

1966224C1

SPRING

1шт.

9

1547474C1

SUPPORT

1шт.

10

1547482C1

SPACER

1шт.
