Запчасти Case IH 2120 (9-094) - REAR FENDERS, 2120 - PIN CGC6018- (09) - CHASSIS/ATTACHMENTS

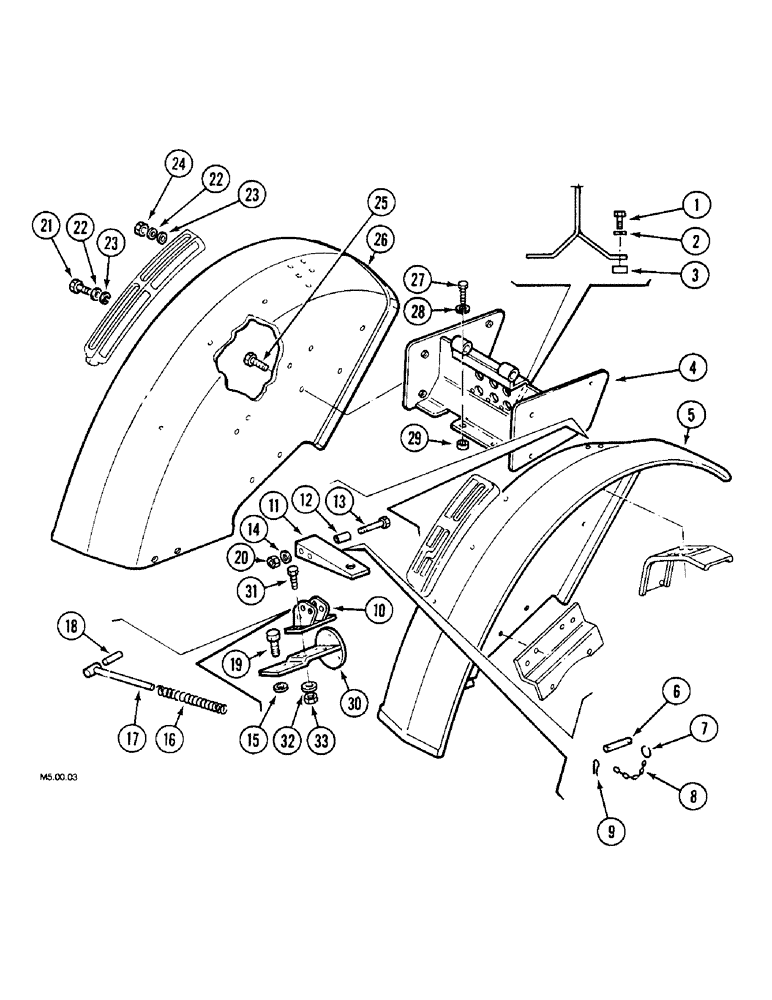

Схема запчастей Case IH 2120 - (9-094) - REAR FENDERS, 2120 - PIN CGC6018- (09) - CHASSIS/ATTACHMENTS
3
11
22
6
33
20
13
30
19
18
22
4
2
16
1
14
24
29
7
8
23
5
23
12
10
26
28
25
15
31
21
32
9
17
27

Артикул

Название

Примечание

Количество

1

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

2

892-11010

LOCK WASHER,M10

2шт.

3

1967779C1

SPACER

2шт.

4

115350A1

SUPPORT ASSY.

1шт.

Version without Cab

1шт.

For Narrow Tractors

1шт.

4

115354A1

SUPPORT ASSY.

1шт.

Version without Cab with Lower Fenders

1шт.

For Narrow Tractors

1шт.

4

115351A1

SUPPORT ASSY.

1шт.

Version without Cab

1шт.

For Vineyard Tractors

1шт.

4

115353A1

SUPPORT ASSY.

1шт.

Version without Cab with Lower Fenders

1шт.

For Vineyard Tractors

1шт.

5

1530551C1

MUD DEFLECTOR

Left

1шт.

5

102738A1

FENDER ASSY.

Left

1шт.

Version without Cab with Lower Fenders

1шт.

6

1967802C1

PIN

2шт.

Version without Cab

1шт.

7

1967808C1

RING

2шт.

Version without Cab

1шт.

8

1967824C1

CHAIN (AG)

2шт.

Version without Cab

1шт.

9

1966873C1

SPLIT PIN/SAFETY PIN

2шт.

Version without Cab

1шт.

10

1967784C1

BRACKET

2шт.

Version without Cab

1шт.

11

1967785C1

HOLDER

2шт.

Version without Cab

1шт.

12

1967781C1

SPACER

2шт.

Version without Cab

1шт.

13

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

Version without Cab

1шт.

14

892-11008

LOCK WASHER,8mm ID

4шт.

Version without Cab

1шт.

15

1967786C1

PAD, RUBBER

6шт.

Version without Cab

1шт.

15

1967786C1

PAD, RUBBER

8шт.

Version without Cab with Lower Fenders

1шт.

16

1967780C1

SPRING

2шт.

Version without Cab

1шт.

17

1967777C1

STEM

2шт.

Version without Cab

1шт.

18

838-3636

PIN,M6 x 36, Coiled

6 x 36 mm

2шт.

Version without Cab

1шт.

19

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

Version without Cab

1шт.

20

825-1408

NUT,M8, Cl 8

2шт.

Version without Cab

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

22

892-1110

LOCK WASHER,M10

18шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

24

825-1110

NUT,M10, Cl 8

8шт.

25

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

Version without Cab

1шт.

26

1530552C1

MUD DEFLECTOR

Right

1шт.

26

102737A1

FENDER ASSY.

Right

1шт.

Version without Cab with Lower Fenders

1шт.

27

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

Version without Cab

1шт.

28

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

2шт.

Version without Cab

1шт.

29

115352A1

SPACER

2шт.

Version without Cab

1шт.

30

115355A1

SUPPORT

Left

1шт.

Version without Cab with Lower Fenders

1шт.

30

115356A1

SUPPORT

Right

1шт.

Version without Cab with Lower Fenders

1шт.

31

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

M8 x 18 mm

8шт.

Version without Cab with Lower Fenders

1шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 2 mm

8шт.

Version without Cab with Lower Fenders

1шт.

33

825-1408

NUT,M8, Cl 8

8шт.

Version without Cab with Lower Fenders

1шт.

Выбрано товаров: 75
