Запчасти Case IH 2120 (9-092) - REAR FENDERS, 2120 - PIN -CGC6017 (09) - CHASSIS/ATTACHMENTS

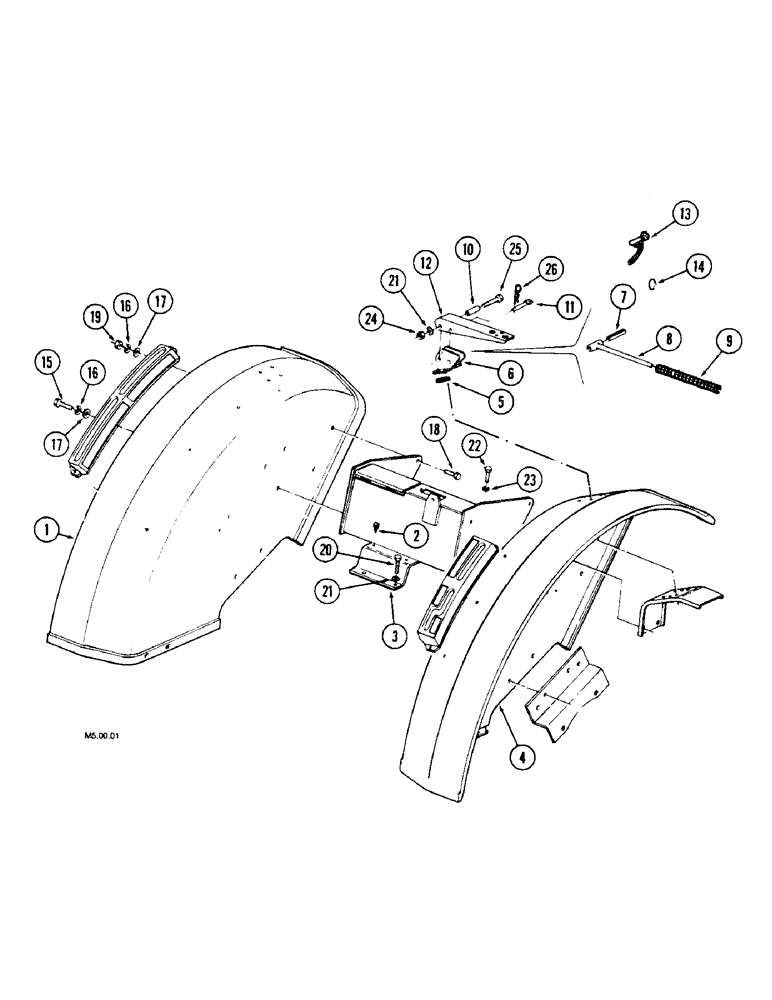

Схема запчастей Case IH 2120 - (9-092) - REAR FENDERS, 2120 - PIN -CGC6017 (09) - CHASSIS/ATTACHMENTS
17
16
2
23
8
3
1
12
4
10
15
21
18
21
20
13
14
16
7
5
9
19
22
17
6
11
24
25
26

Артикул

Название

Примечание

Количество

1

1530552C1

MUD DEFLECTOR

Right

1шт.

Version without Cab

1шт.

1

102737A1

FENDER ASSY.

Right

1шт.

Version without Cab with Lower Fenders

1шт.

2

1967801C1

PLUG

Rubber

1шт.

Version without Cab

1шт.

3

1967775C1

SUPPORT ASSY.

1шт.

Version without Cab

1шт.

For Narrow Tractors

1шт.

3

102739A1

SUPPORT ASSY.

1шт.

Version without Cab with Lower Fenders

1шт.

For Narrow Tractors

1шт.

3

1967772C1

SUPPORT ASSY.

1шт.

Version without Cab

1шт.

For Vineyard Tractors

1шт.

3

102740A1

SUPPORT ASSY.

1шт.

Version without Cab with Lower Fenders

1шт.

For Vineyard Tractors

1шт.

4

1530551C1

MUD DEFLECTOR

Left

1шт.

Version without Cab

1шт.

4

102738A1

FENDER ASSY.

Left

1шт.

Version without Cab with Lower Fenders

1шт.

5

1967786C1

PAD, RUBBER

6шт.

Version without Cab

1шт.

5

102741A1

PAD, RUBBER

6шт.

Version without Cab with Lower Fenders

1шт.

6

1967784C1

BRACKET

2шт.

Version without Cab

1шт.

7

838-3636

PIN,M6 x 36, Coiled

6 x 36 mm

2шт.

Version without Cab

1шт.

8

1967777C1

STEM

2шт.

Version without Cab

1шт.

9

1967780C1

SPRING

2шт.

Version without Cab

1шт.

10

1967781C1

SPACER

2шт.

Version without Cab

1шт.

11

1967802C1

PIN

2шт.

Version without Cab

1шт.

12

1967785C1

HOLDER

2шт.

Version without Cab

1шт.

13

1967824C1

CHAIN (AG)

2шт.

Version without Cab

1шт.

14

1967808C1

RING

2шт.

Version without Cab

1шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

16

892-11010

LOCK WASHER,M10

18шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

18

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

Version without Cab

1шт.

19

825-1410

NUT,M10, Cl 8

8шт.

20

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

M8 x 18 mm

2шт.

Version without Cab

1шт.

21

892-11008

LOCK WASHER,8mm ID

4шт.

Version without Cab

1шт.

22

614-14025

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8, Full Thd

M14 x 25 mm

2шт.

23

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

2шт.

24

825-1408

NUT,M8, Cl 8

2шт.

Version without Cab

1шт.

25

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

Version without Cab

1шт.

26

1966873C1

SPLIT PIN/SAFETY PIN

2шт.

Version without Cab

1шт.

Выбрано товаров: 62
