(9-082) - SEAT, SUPPORT, VERSION WITHOUT CAB, 2120 - (P.I.N. : - CGC6017)

Запчасти Case IH 2120 (9-082) - SEAT, SUPPORT, VERSION WITHOUT CAB, 2120 - (P.I.N. : - CGC6017) (09) - CHASSIS/ATTACHMENTS

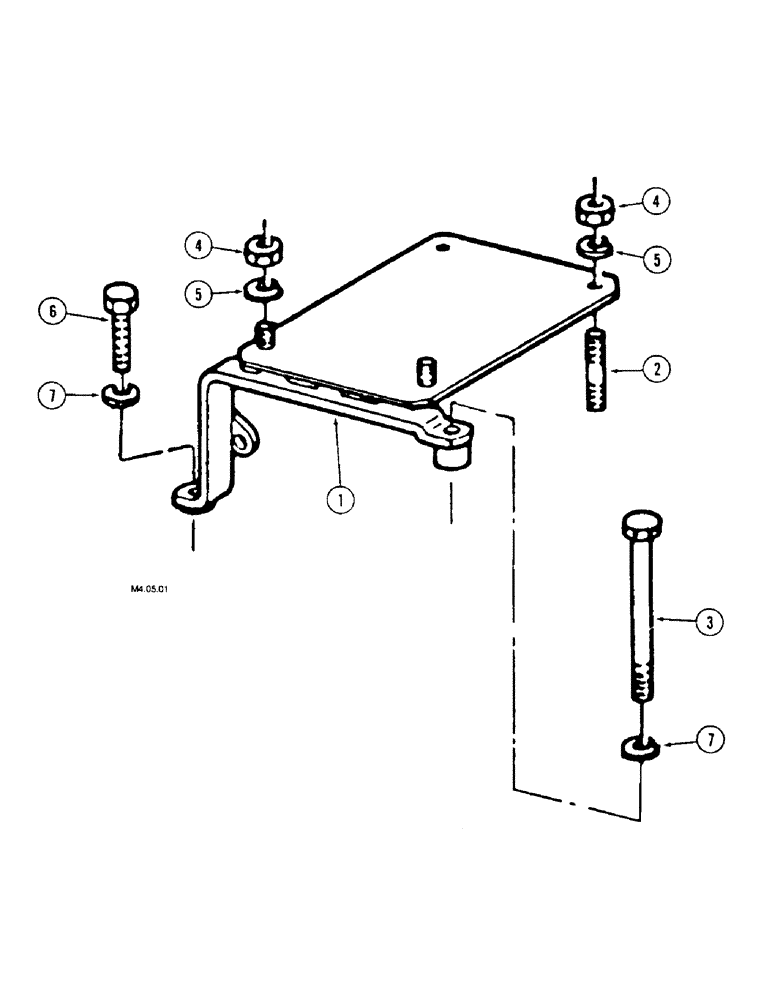

Схема запчастей Case IH 2120 - (9-082) - SEAT, SUPPORT, VERSION WITHOUT CAB, 2120 - (P.I.N. : - CGC6017) (09) - CHASSIS/ATTACHMENTS
7
7
4
5
3
2
1
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1530193C1

SUPPORT

1шт.

P.I.N. -CGC1881 & CGC1903, CGC1905, CGC1908, CGC1920, CGC1921, CGC1965, CGC1966, CGC1967, CGC1969, CGC1970, CGC1971, CGC1972, CGC1989, CGC2005, CGC2006, CGC2007

1шт.

1

1530549C1

SUPPORT

1шт.

P.I.N. CGC1882 Except CGC1903, CGC1905, CGC1908, CGC1920, CGC1921, CGC1965, CGC1966, CGC1967, CGC1969, CGC1970, CGC1971, CGC1972, CGC1989, CGC2005, CGC2006, CGC2007

1шт.

2

1530194C1

STUD

2шт.

3

1530195C1

BOLT

1шт.

4

825-1108

NUT,Hex, M8, Cl 8

4шт.

5

892-1108

LOCK WASHER,M8

4шт.

6

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

7

892-11010

LOCK WASHER,M10

2шт.
