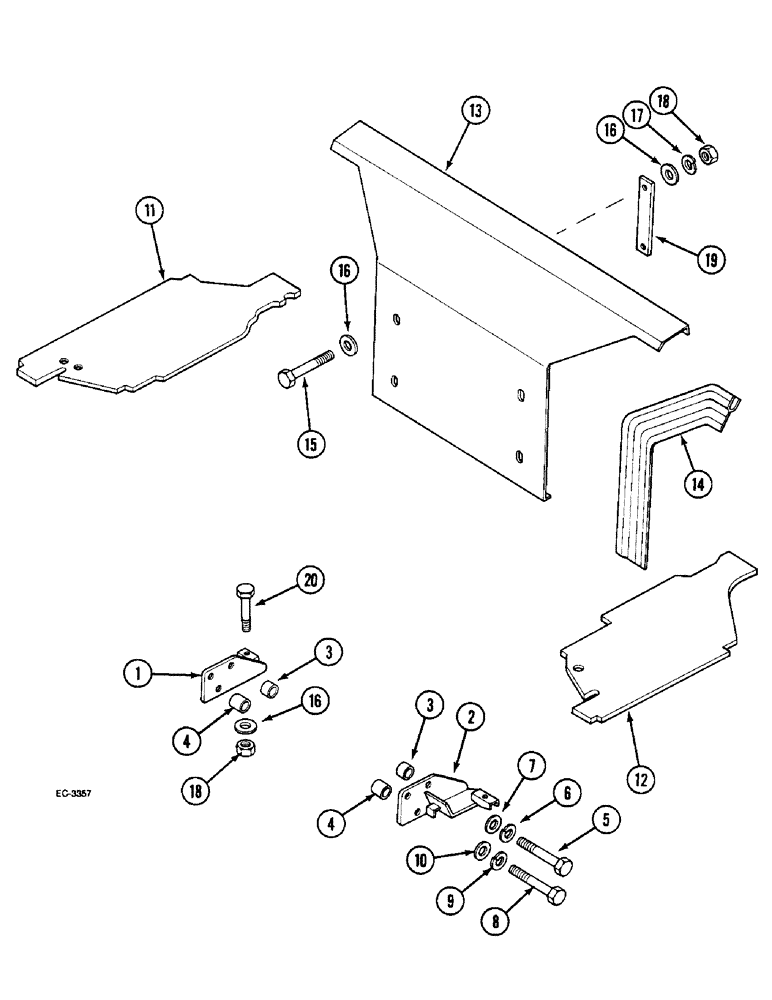

Запчасти Case IH 2120 (9-040) - OPERATORS COMPARTMENT COVERING (09) - CHASSIS/ATTACHMENTS

1

1984682C1

SUPPORT

Right

1шт.

2

1984683C1

SUPPORT

Left

1шт.

3

1984684C1

SPACER

20 mm

4шт.

4

1984685C1

SPACER

30 mm

2шт.

5

1984665C1

SCREW

M16 x 60 mm

4шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

7

1984651C1

WASHER

16 mm

4шт.

8

1984666C1

SCREW

M14 x 70 mm

2шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

2шт.

10

1984636C1

WASHER

14 mm

2шт.

11

1984686C1

CARPET

Right

1шт.

For Narrow Tractors

1шт.

11

1984711C1

CARPET

Right, 2120, 2130, 2140

1шт.

For Vineyard Tractors

1шт.

12

1984687C1

CARPET

Left

1шт.

For Narrow Tractors

1шт.

12

1984712C1

CARPET

Left

1шт.

For Vineyard Tractors

1шт.

13

1984688C1

SUPPORT

1шт.

For Narrow Tractors

1шт.

13

117247A1

SUPPORT

Rear, Start Serial: XXXX

1шт.

France Only

1шт.

For Narrow Tractors

1шт.

13

1984713C1

SUPPORT

2120, 2130, 2140

1шт.

For Vineyard Tractors

1шт.

13

117246A1

SUPPORT

Rear, 2120, 2130, 2140, Start Serial: XXXX

1шт.

France Only

1шт.

For Vineyard Tractors

1шт.

14

1984517C1

SEAL

540 mm

2шт.

15

1984690C1

SCREW

M12 x 50 mm

4шт.

16

1984655C1

WASHER

12 mm

10шт.

17

892-11012

LOCK WASHER,M12

4шт.

18

337475

NUT,M12, Cl 10

6шт.

19

1984691C1

PLATE

Rear, Serial Range: -XXXX

2шт.

20

1984692C1

SCREW

M12 x 40 mm

2шт.
