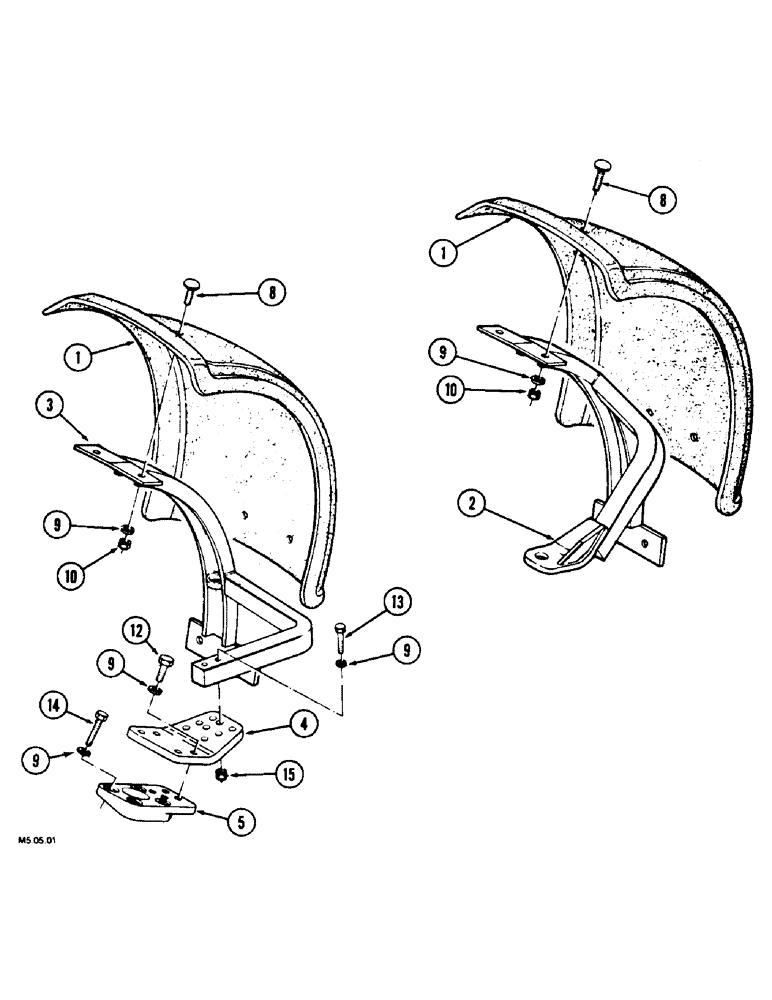

Запчасти Case IH 2120 (9-010) - FRONT SPLASH GUARD, NARROW VERSION ONLY (09) - CHASSIS/ATTACHMENTS

1

1530210C1

MUD DEFLECTOR

2WD

2шт.

1

1530211C1

MUD DEFLECTOR

MFD, Right

1шт.

1

1530212C1

MUD DEFLECTOR

MFD, Left

1шт.

2

1530213C1

BRACKET

2WD, Right

1шт.

2

1530214C1

BRACKET

2WD, Left

1шт.

3

1530215C1

SUPPORT

MFD, Right

1шт.

3

1530216C1

SUPPORT

MFD, Left

1шт.

4

1530217C1

PLATE

MFD, Left

1шт.

2120 - (P.I.N. -CGC6017), 2130 - (P.I.N. -CGC9053), 2140 - (P.I.N. -CGC12135), 2150 - (P.I.N. -CGC15013)

1шт.

4

1530218C1

PLATE

MFD, Right

1шт.

2120 - (P.I.N. : CGC6018-), 2130 - (P.I.N. : CGC9054-), 2140 - (P.I.N. : CGC12136-), 2150 - (P.I.N. : CGC15014-)

1шт.

5

1530219C1

BRACKET

MFD, Right

1шт.

5

1530220C1

BRACKET

MFD, Left

1шт.

5

116260A1

SUPPORT

MFD, Right

1шт.

5

116259A1

SUPPORT

MFD, Left

1шт.

8

1530209C1

BOLT

8шт.

9

892-11010

LOCK WASHER,M10

20шт.

10

825-1410

NUT,M10, Cl 8

8шт.

11

892-11012

LOCK WASHER,M12

12шт.

12

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

M12 x 55 mm

4шт.

13

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

4шт.

14

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

14

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

M12 x 55 mm

4шт.

15

100016

NUT,M10 x 1.5, Cl 8

4шт.
