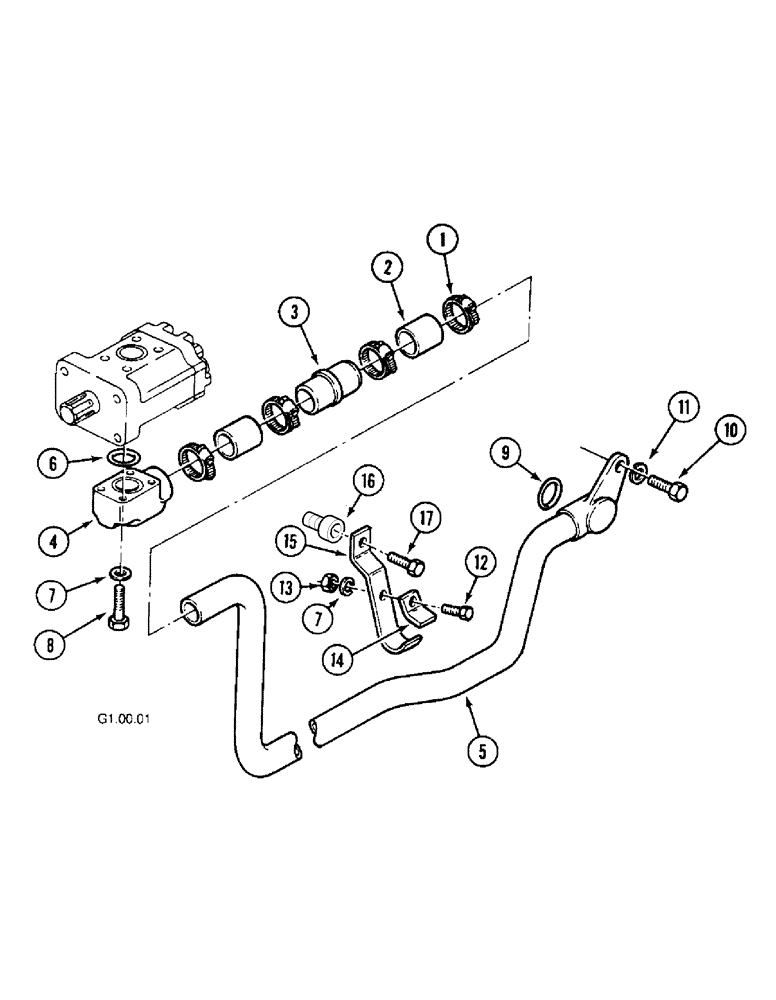

Запчасти Case IH 2120 (8-32) - HYDRAULIC LIFT PIPING, SUCTION CIRCUIT, 2120 - (P.I.N. : CGC6018-) (08) - HYDRAULICS

1

1530003C1

CLAMP

4шт.

2

1530002C1

HOSE

2шт.

3

114843A1

FILTER STRAINER

1шт.

4

114844A1

SHIN

1шт.

5

114846A1

PIPE

1шт.

6

1530013C1

O-RING

1шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

3шт.

9

1530001C1

O-RING

1шт.

10

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

1шт.

11

892-11012

LOCK WASHER,M12

1шт.

12

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

13

825-1408

NUT,M8, Cl 8

1шт.

14

114848A1

FIXING BRACKET

1шт.

15

114849A1

SUPPORT

1шт.

16

407716A1

ADAPTER,M6 x 1 x M12X1.75

with Cab

1шт.

17

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

with Cab

1шт.
