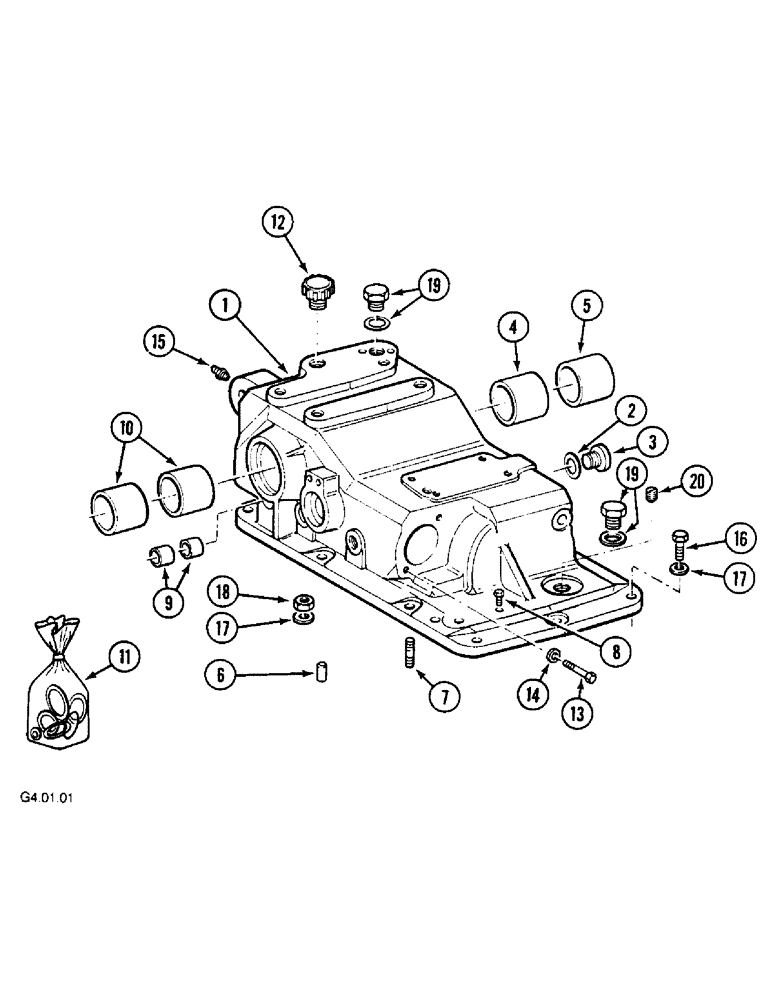

Запчасти Case IH 2120 (8-08) - HYDRAULIC LIFT HOUSING (08) - HYDRAULICS

1

1966087C2

HOUSING

1шт.

2120 - (P.I.N. -CGC6017), 2130 - (P.I.N. -CGC9044), 2140 - (P.I.N. -CGC12130), 2150 - (P.I.N. -CGC15013)

1шт.

1

115293A1

HOUSING

1шт.

2120 - (P.I.N. CGC6018-), 2130 - (P.I.N. CGC9045-), 2140 - (P.I.N. CGC12131-), 2150 - (P.I.N. CGC15014-)

1шт.

2

1966119C1

WASHER

2шт.

3

1966112C1

PLUG

2шт.

4

1966066C1

BUSHING

1шт.

5

1966065C1

BUSHING

1шт.

6

A48079

PIN

2шт.

7

K261839

STUD

6шт.

7

K262139

STUD

1шт.

8

1966120C1

PLUG

2шт.

9

1966114C1

BUSHING

2шт.

10

1966063C1

BUSHING

2шт.

11

1966088C1

GASKET KIT

1шт.

12

1530028C1

BREATHER

1шт.

13

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

933781R1

LUBE NIPPLE,M10 x 1

2шт.

16

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

17

892-11012

LOCK WASHER,M12

9шт.

18

829-1412

NUT,M12, Cl 10.9

7шт.

19

115294A1

PLUG

2шт.

2120 - (P.I.N. CGC6018-), 2130 - (P.I.N. CGC9045-), 2140 - (P.I.N. CGC12131-), 2150 - (P.I.N. CGC15014-)

1шт.

20

G32896

SCREW

M6 x 18 mm

2шт.

2120 - (P.I.N. CGC6018-), 2130 - (P.I.N. CGC9045-), 2140 - (P.I.N. CGC12131-), 2150 - (P.I.N. CGC15014-)

1шт.
