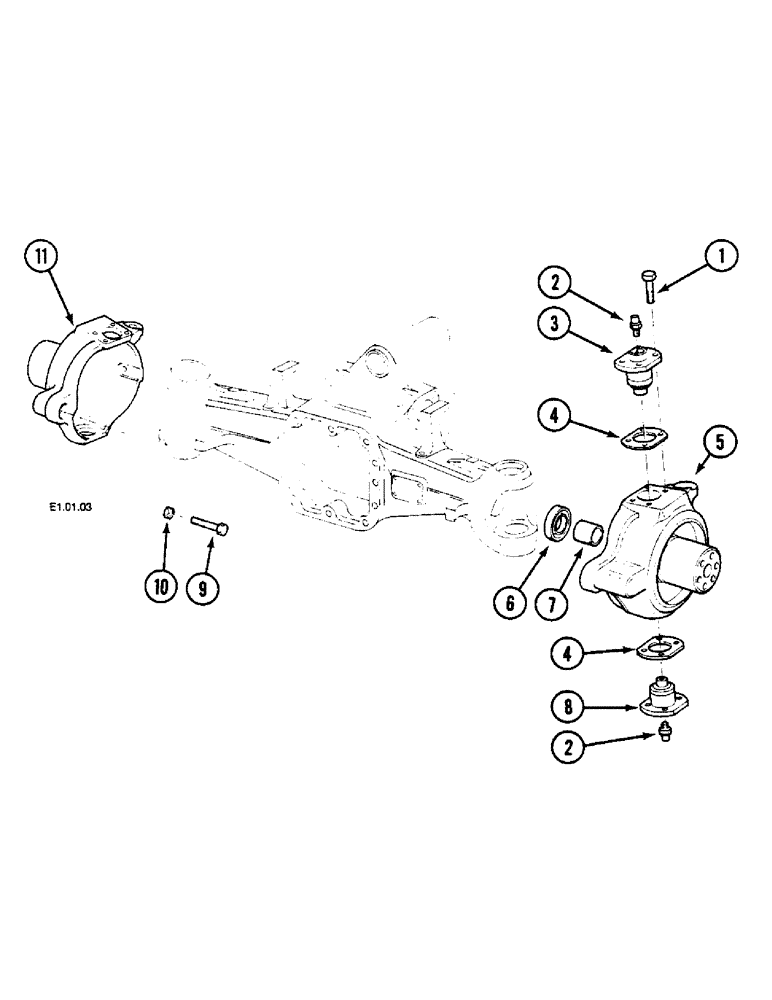

Запчасти Case IH 2120 (6-088) - STEERING KNUCKLE - MFD, 2120, MID MODELS (06) - POWER TRAIN

1

112477A1

BOLT

16шт.

2

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

3

112478A1

PIVOT

2шт.

4

1966187C1

SHIM,46mm ID x 86mm OD x 0.1mm Thk

0,1 mm

1шт.

4

1966188C1

SPACER

0,19 mm

1шт.

4

1966189C1

SPACER

0,35 mm

1шт.

5

112479A1

STEERING KNUCKLE

, Serial Range: CGC6018-CGC6049

1шт.

2120 - (P.I.N. CGC6018) - (P.I.N. CGC6049), 2130 - (P.I.N. CGC9049) - (P.I.N. CGC9180), 2140 - (P.I.N. CGC12131) - (P.I.N. CGC12344), 2150 - (P.I.N. CGC15014) - (P.I.N. CGC15064)

1шт.

5

124475A1

HOUSING

, Serial Range: CGC6050-CGC6066

1шт.

2120 - (P.I.N. CGC6050) - (P.I.N. CGC6066)), 2130 - (P.I.N. CGC9181) - (P.I.N. CGC9319), 2140 - (P.I.N. CGC12345) - (P.I.N. CGC12537), 2150 - (P.I.N. CGC15065) - (P.I.N. CGC15127)

1шт.

6

100529A1

OIL SEAL,45mm ID x 65mm OD x 12mm Thk

, Serial Range: CGC6018-CGC6049

2шт.

2120 - (P.I.N. CGC6018) - (P.I.N. CGC6049), 2130 - (P.I.N. CGC9049) - (P.I.N. CGC9180), 2140 - (P.I.N. CGC12131) - (P.I.N. CGC12344), 2150 - (P.I.N. CGC15014) - (P.I.N. CGC15064)

1шт.

6

1966164C1

OIL SEAL,47mm ID x 62mm OD x 14mm Thk

, Serial Range: CGC6050-CGC6066

2шт.

2120 - (P.I.N. CGC6050) - (P.I.N. CGC6066)), 2130 - (P.I.N. CGC9181) - (P.I.N. CGC9319), 2140 - (P.I.N. CGC12345) - (P.I.N. CGC12537), 2150 - (P.I.N. CGC15065) - (P.I.N. CGC15127)

1шт.

7

100532A1

BUSHING

, Serial Range: CGC6018-CGC6049

2шт.

2120 - (P.I.N. CGC6018) - (P.I.N. CGC6049), 2130 - (P.I.N. CGC9049) - (P.I.N. CGC9180), 2140 - (P.I.N. CGC12131) - (P.I.N. CGC12344), 2150 - (P.I.N. CGC15014) - (P.I.N. CGC15064)

1шт.

7

K395019

BUSHING

, Serial Range: CGC6050-CGC6066

2шт.

2120 - (P.I.N. CGC6050) - (P.I.N. CGC6066)), 2130 - (P.I.N. CGC9181) - (P.I.N. CGC9319), 2140 - (P.I.N. CGC12345) - (P.I.N. CGC12537), 2150 - (P.I.N. CGC15065) - (P.I.N. CGC15127)

1шт.

8

112480A1

PIVOT

2шт.

9

112481A1

BOLT

4шт.

10

85805986

NUT,M16

4шт.

11

1966219C1

HOUSING

, Serial Range: CGC6018-CGC6049

1шт.

2120 - (P.I.N. CGC6018) - (P.I.N. CGC6049), 2130 - (P.I.N. CGC9049) - (P.I.N. CGC9180), 2140 - (P.I.N. CGC12131) - (P.I.N. CGC12344), 2150 - (P.I.N. CGC15014) - (P.I.N. CGC15064)

1шт.

11

124476A1

STEERING KNUCKLE

, Serial Range: CGC6050-CGC6066

1шт.

2120 - (P.I.N. CGC6050) - (P.I.N. CGC6066)), 2130 - (P.I.N. CGC9181) - (P.I.N. CGC9319), 2140 - (P.I.N. CGC12345) - (P.I.N. CGC12537), 2150 - (P.I.N. CGC15065) - (P.I.N. CGC15127)

1шт.
