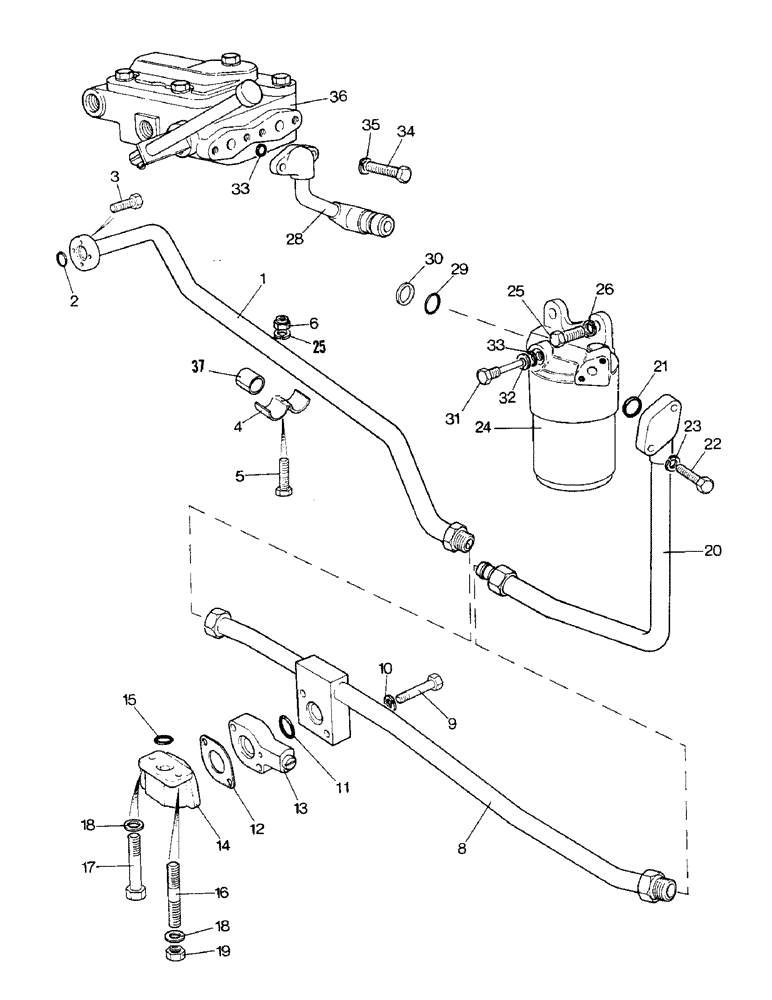

Запчасти Case IH 1690 (K05-1) - PIPES FOR REAR SECTION OF TANDEM PUMP, POWER SHIFT, SYNCHROMESH (07) - HYDRAULICS

1

K200753

PIPE,41.187, 4.562" L

- rear pump outlet (Synchromesh)

1шт.

1

K200585

PIPE

- rear pump outlet (Power Shift)

1шт.

2

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8", ID

1шт.

3

K606504

SCREW

- 1/4 UNC x 1" (Synchromesh)

4шт.

3

K606515

SCREW

- 1/4 UNC x 2-3/4" (Power Shift)

4шт.

4

K916899

BRACKET

- pipe

3шт.

5

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

2шт.

6

K607301

NUT

- 5/16 UNC

1шт.

8

K203629

PIPE

- relief, Serial Range: valve-unions

1шт.

9

K692128

BOLT

- 3/8 UNC x 2-5/8"

2шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

11

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16", ID

2шт.

12

K928522

SEAL

- relief valve

1шт.

13

K928525

VALVE

ASSEMBLY - bleed, See figure K7

1шт.

14

K952323

VALVE

- relief, pre-set assembly

1шт.

15

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

1шт.

16

K608315

STUD

- 7/16 UNC x 2-3/4"

1шт.

17

K600608

BOLT

- 7/16 UNC x 2-1/4"

1шт.

18

K626522

SEALING WASHER

- sealing, 7/16"

2шт.

19

280717

NUT,7/16"-14, G5

1шт.

20

K203630

PIPE

-, Serial Range: union-filter

1шт.

21

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

1шт.

22

K602808

SCREW

SETSCREW - 5/16 UNC x 1-3/8"

2шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

24

K952363

FILTER

ASSEMBLY - hydraulic, See figure K7

1шт.

25

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW - 3/8 UNC x 1-1/4"

2шт.

26

K19482

SPRING WASHER

WASHER - lock, 3/8"

3шт.

28

K202523

PIPE

- filter outlet, tandem pump

1шт.

29

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4" ID

1шт.

30

K628067

RING

- backup, 3/4", ID

1шт.

31

K947791

PIN

SETSCREW - 7/16 UNC, special

1шт.

32

K626522

SEALING WASHER

- sealing, 7/16"

1шт.

33

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

2шт.

34

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 7/8"

2шт.

35

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

36

K203624

VALVE

- combining, See figure K7, tandem pump

1шт.

37

K200258

BUSHING

TUBE - pipe, nylon

2шт.
