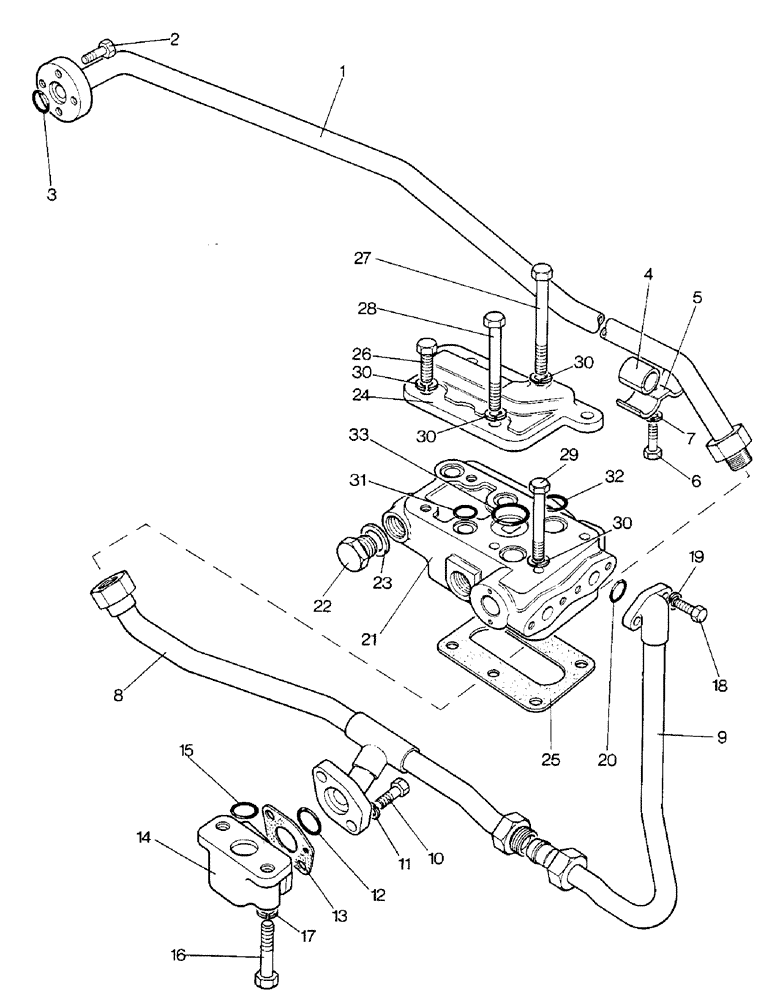

Запчасти Case IH 1690 (K04-1) - PIPES AND FRONT SECTION OF TANDEM PUMP (07) - HYDRAULICS

1

K205507

PIPE

- pump outlet (Dowty pump)

1шт.

1

K200581

PIPE

- pump outlet (Plessey pump)

1шт.

2

K606504

SCREW

- 1/4 UNC x 1"

4шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8", ID

1шт.

4

K200258

BUSHING

TUBE - pipe, nylon

2шт.

5

K916899

BRACKET

- support

2шт.

6

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16"

1шт.

8

K203631

PIPE

- rigid, middle

1шт.

9

K203632

PIPE

- rigid, rear

1шт.

10

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 3/8 UNC x 1-1/8"

2шт.

11

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

12

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16", ID

1шт.

13

K928522

SEAL

- relief

1шт.

14

K952323

VALVE

- pre set assembly

1шт.

15

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

1шт.

16

K600608

BOLT

- 7/16 UNC x 2-1/4"

2шт.

17

K626344

WASHER, LOCK

WASHER - lock, 7/16"

2шт.

18

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8"

2шт.

19

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

20

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

1шт.

21

K203624

VALVE

ASSEMBLY - combining, See Fig. K6

1шт.

22

K619528

PLUG

- 7/8 UNF

1шт.

23

K30085

GASKET

WASHER - fiber, 7/8"

1шт.

24

K919242

COVER

PLATE - cover

1шт.

25

K917387

GASKET

- combining valve

1шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

K600421

BOLT

- 3/8 UNC x 4-1/4"

1шт.

28

K600419

BOLT

- 3/8 UNC x 3-3/4"

2шт.

29

K600417

BOLT

- 3/8 UNC x 3-1/4"

1шт.

30

K19482

SPRING WASHER

WASHER - lock, 3/8"

6шт.

31

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

3шт.

32

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4", ID

2шт.

33

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 13/16", ID

1шт.
