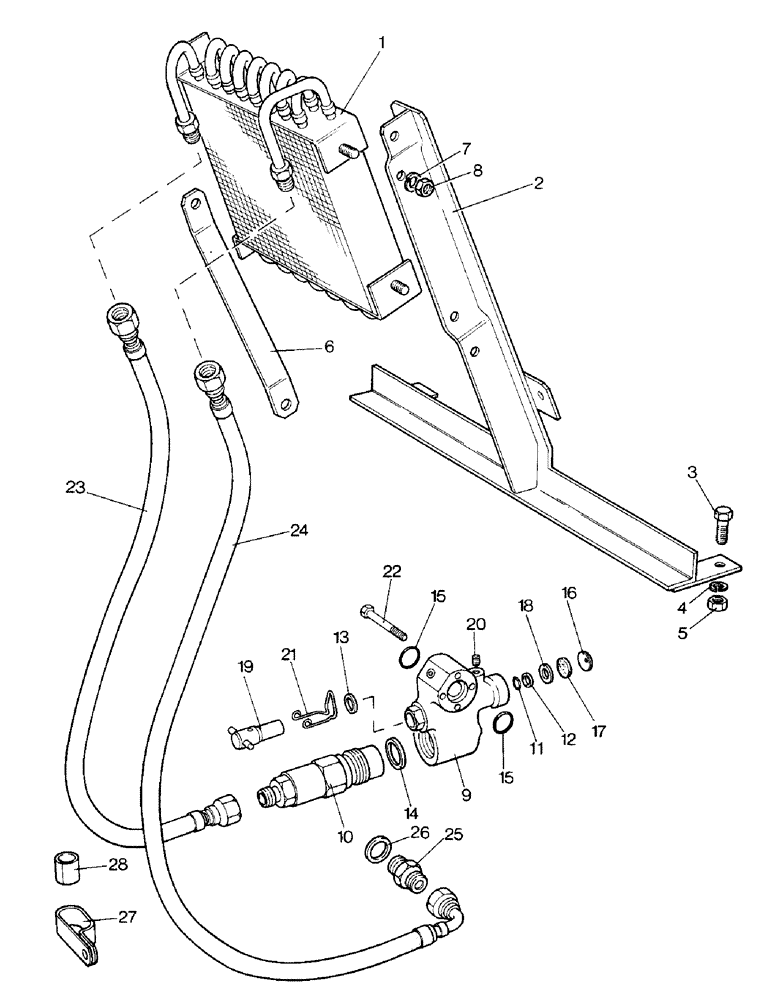

Запчасти Case IH 1690 (K03-1) - TRANSMISSION OIL COOLER, POWER SHIFT MODEL (07) - HYDRAULICS

1

K302320

COOLER

OIL COOLER - transmission

1шт.

2

K300708

COOLER

BRACKET - support

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

4

K651848

WASHER

- lock, 8 MM

4шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

6

K300710

BRACKET

STRUT - support

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16"

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

9

K954058

VALVE

ASSEMBLY - flow control, Includes Ref. 10 - 21

1шт.

10

K955993

CONTROL

VALVE - flow control

1шт.

K963629

KIT

SEAL KIT - valve, Includes Ref. 11 - 18

1шт.

11

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16" ID

2шт.

12

K628056

RING

- backup, 5/16", ID

2шт.

13

K623760

WIPER

RING - wiper, 7/16", ID

1шт.

14

K626797

WASHER

- 3/4", aluminium

1шт.

15

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8", ID

2шт.

16

K943999

COVER

- end

1шт.

17

K943998

PAD

- breather

1шт.

18

K943997

RETAINER

- breather pad

1шт.

19

K948642

KNOB

- control

1шт.

20

K616414

SCREW

RETAINING SCREW - no. 10 UNF

1шт.

21

K951232

CLIP

- spring

1шт.

22

K606515

SCREW

SETSCREW - 1/4 UNC x 2-3/8"

1шт.

23

K201664

HOSE

PIPE - flexible, 3/8 BSP x 27"

1шт.

24

K201663

HOSE

PIPE - flexible, 3/8 BSP x 27"

1шт.

25

K626079

FITTING

UNION - 3/8 BSP

1шт.

26

K626780

WASHER

- 11/16", aluminium

1шт.

27

K621740

CLIP

- pipe

1шт.

28

K946125

TUBE

SLEEVE - pipe, nylon

2шт.
