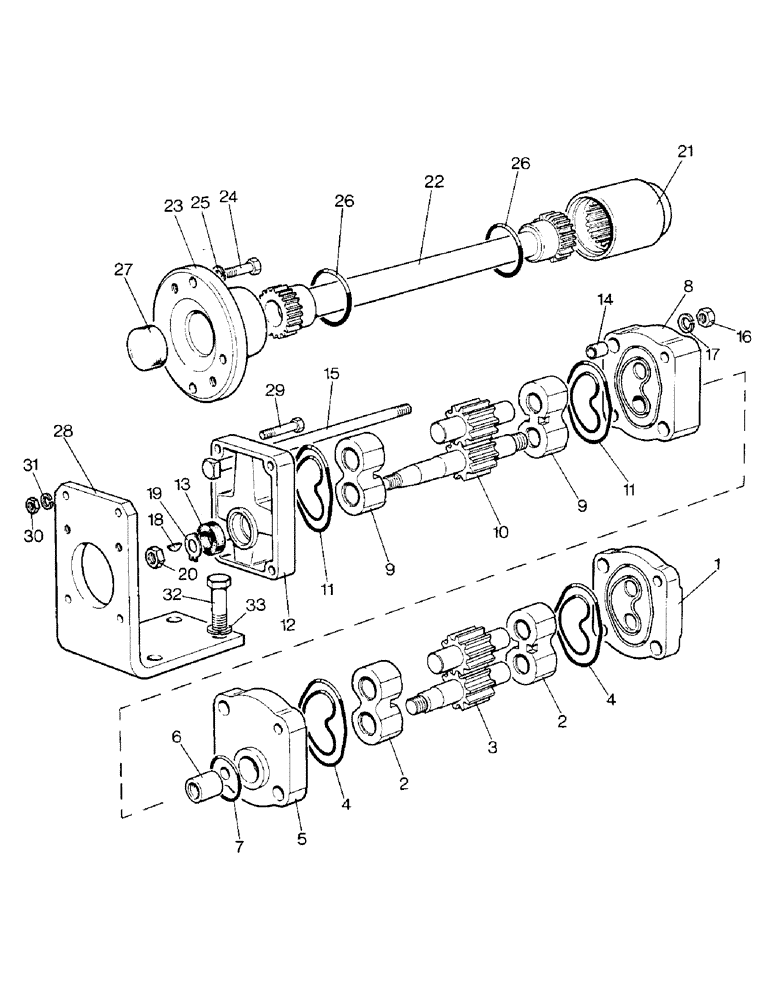

Запчасти Case IH 1690 (K02-1) - HYDRAULIC PUMP (07) - HYDRAULICS

K952465

PUMP

ASSEMBLY - tandem (Plessey A40-33-18643), Includes Ref. 1 - 20

1шт.

1

K260118

COVER

- front pump

1шт.

2

K260117

GUIDE PIN

BEARING - pump

2шт.

3

K260120

GEAR

ROTORS - pair

1шт.

4

K260121

SEAL

PACK - front pump

1шт.

5

K260119

FLANGE

PLATE - end, front pump

1шт.

6

K260126

COUPLING, BREAK AWAY

COUPLING - rotor

1шт.

7

K260129

O-RING

O-RING - end plate

1шт.

8

K260122

COVER

PLATE - end, rear pump

1шт.

9

K260117

GUIDE PIN

BEARING - pump

2шт.

10

K260124

GEAR

ROTORS - pair, rear pump

1шт.

11

K260125

SEAL

PACK - rear pump

1шт.

12

K260123

FLANGE

- rear

1шт.

13

K962106

OIL SEAL,16.13mm ID x 28.83mm OD x 7.92mm Thk

- oil, rear pump

1шт.

14

K964920

PIN

DOWEL - locating

8шт.

15

K260127

BOLT

- special

4шт.

16

K260128

NUT

- flange bolt

4шт.

17

K19482

SPRING WASHER

WASHER - lock

4шт.

18

K19604

KEY

- Woodruff no. 405

1шт.

19

K626380

WASHER

TABWASHER - rotor nut

1шт.

20

425-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16 UNF

1шт.

21

K944947

COUPLING, BREAK AWAY

COUPLING - driveshaft

1шт.

22

K200464

SHAFT

DRIVESHAFT - pump

1шт.

23

K200465

SPLINED COUPLING

COUPLING - crankshaft

1шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

25

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

26

K623555

O-RING,1.396" OD x 0.255" Width

- driveshaft

2шт.

27

K627581

BUSHING

RUBBER DISC - 7/16" thick

1шт.

27

K627582

BUSHING

RUBBER DISC - 9/16" thick

1шт.

27

K627583

BUSHING

RUBBER DISC - 5/8" thick

1шт.

28

K944951

SUPPORT

BRACKET - support

1шт.

29

K600006

BOLT

- 1/4 UNC x 1-1/2"

4шт.

30

K607043

NUT

- 1/4 UNC

4шт.

31

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

32

K603107

BOLT,1/2" x 1 3/8"

BOLT - 1/2 UNC x 1-3/8"

4шт.

33

K626345

LOCK WASHER

WASHER - lock, 1/2"

4шт.
