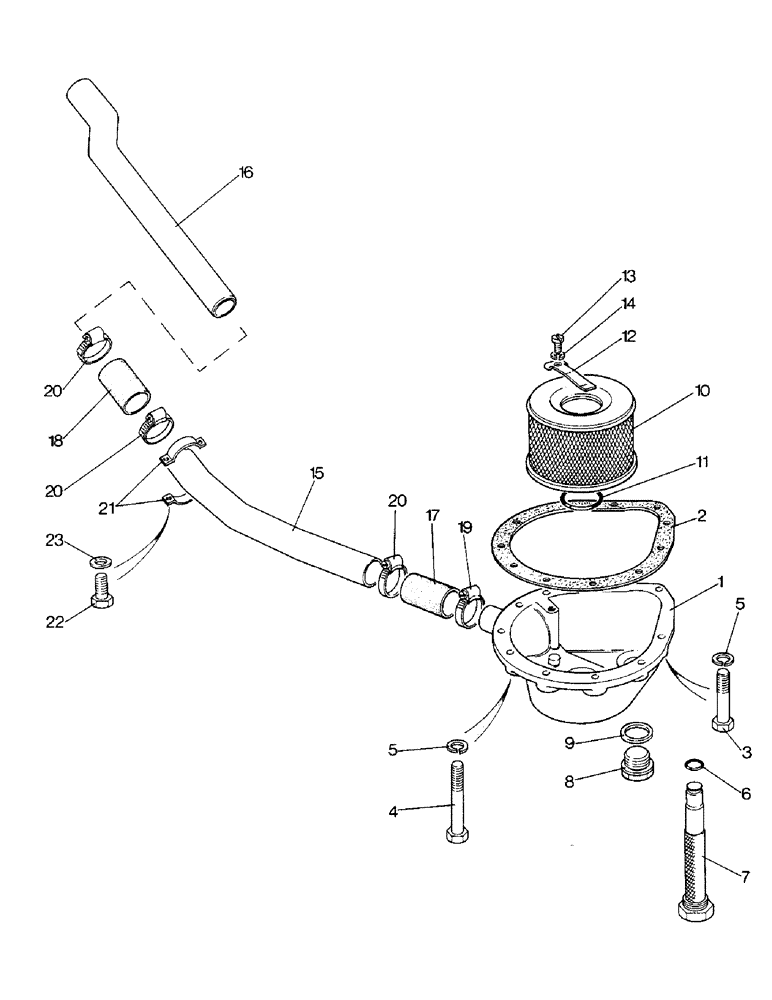

Запчасти Case IH 1690 (K01-3) - INLET FILTER AND PIPES, P.I.N. 11213683 AND AFTER, POWER SHIFT, MFD MODEL, SYNCHROMESH (07) - HYDRAULICS

1

K205042

HOUSING

- inlet filter

1шт.

2

K940407

GASKET

- housing

1шт.

3

K600324

BOLT

- 5/16 UNC x 1-3/4"

10шт.

4

K600217

BOLT

- 5/16 UNC x 3"

1шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16"

11шт.

6

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4" ID (Power Shift)

1шт.

7

K942039

FILTER

INLET FILTER - gearbox pump (Power Shift)

1шт.

8

K623830

PLUG

- 1" BSP (Synchromesh, MFD Model)

1шт.

9

K17457

WASHER

- sealing, 1-1/4" ID

1шт.

10

K946089

STRAINER ELEMENT

INLET FILTER - hydraulic pump

1шт.

11

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/4" ID

1шт.

12

K953845

RETAINER

PLATE - filter

1шт.

13

K613984

SCREW

- no. 10 UNF x 1/2"

1шт.

14

K626340

RING

WASHER - lock, 3/16"

1шт.

15

K204020

PIPE

INLET PIPE - rear

1шт.

16

NLS

NO LONGER SERVICED

INLET PIPE - front

1шт.

For inlet elbow and tee connector see figure K1-1.

1шт.

17

K924378

HOSE

CONNECTION - straight

1шт.

18

K917126

HOSE

- 1-3/4 x 2-3/8"

1шт.

19

K622031

CLAMP

- hose, 2-1/2"

1шт.

20

K622030

CLAMP

- hose, 2-1/4"

3шт.

21

K916897

SHIM

BRACKET - pipe

2шт.

22

K602883

SCREW,5/16" - 18 x 3/4", Gr V

SETSCREW - 5/16 UNC x 3/4"

2шт.

23

K19481

SPRING WASHER

WASHER - 5/16"

2шт.
