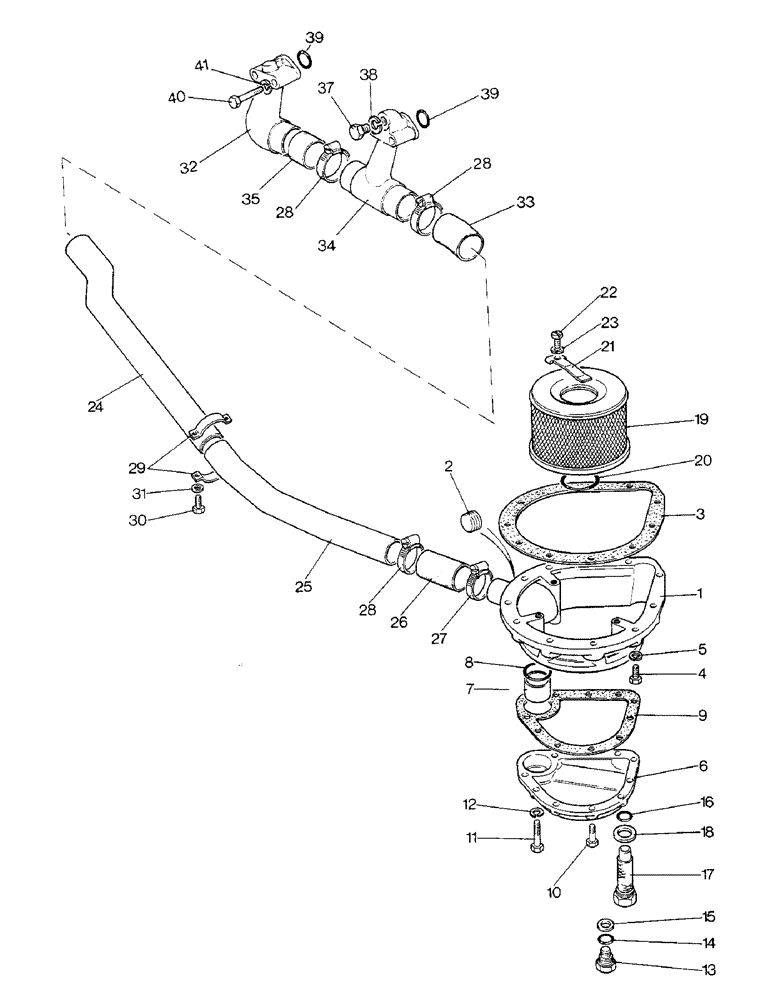

Запчасти Case IH 1690 (K01-1) - INLET FILTER AND PIPES, PRIOR TO P.I.N. 11213683, POWER SHIFT, MFD MODEL, SYNCHROMESH (07) - HYDRAULICS

1

K205042

HOUSING

- inlet filter (Replaces K940382)

1шт.

2

K609691

PLUG

TAPER PLUG - 1/2 NPT

1шт.

3

K940407

GASKET

- housing

1шт.

4

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SCREW - 5/16 UNC x 1-1/8"

10шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16"

10шт.

6

K940399

COVER

- filter housing

1шт.

7

K921882

SEAL

INSERT - cover

1шт.

8

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 1-3/4" ID

1шт.

9

K940408

GASKET

- cover

1шт.

10

K600211

BOLT

- 5/16 UNC x 2-1/4"

9шт.

11

K600226

BOLT

- 5/16 UNC x 5-1/4"

1шт.

12

K19481

SPRING WASHER

WASHER - lock, 5/16"

10шт.

13

K623842

PLUG

- 5/8 UNC, special

1шт.

14

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16" ID

1шт.

15

K626795

WASHER

- sealing, 5/16"

1шт.

16

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4" ID (Power Shift)

1шт.

17

K942039

FILTER

INLET FILTER - gearbox pump (Power Shift)

1шт.

17

K623830

PLUG

- 1" BSP (Synchromesh, MFD Model)

1шт.

18

K17457

WASHER

- sealing, 1-1/4" ID

1шт.

19

K946089

STRAINER ELEMENT

INLET FILTER - hydraulic pump

1шт.

20

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/4", internal

1шт.

21

K953845

RETAINER

PLATE - filter

1шт.

22

K613984

SCREW

- no. 10 UNF x 1/2"

1шт.

23

K626340

RING

WASHER - lock, 3/16"

1шт.

24

NLS

NO LONGER SERVICED

INLET PIPE - front

1шт.

25

K204020

PIPE

INLET PIPE - rear

1шт.

26

K924378

HOSE

CONNECTION - straight

1шт.

27

K622031

CLAMP

- hose, 2-1/2"

1шт.

28

K622030

CLAMP

- hose, 2-1/4"

5шт.

29

K916897

SHIM

BRACKET - pipe

2шт.

30

K602883

SCREW,5/16" - 18 x 3/4", Gr V

SETSCREW - 5/16 UNC x 3/4"

2шт.

31

K19481

SPRING WASHER

WASHER - 5/16"

2шт.

32

K950129

FITTING

ELBOW - 90 degree (Plessey pump)

1шт.

32

K205571

FITTING

ELBOW - 90 degree (Dowty pump)

1шт.

33

K200733

HOSE,1.06" ID, SAE J14 Class SC

Angled 1.06" ID, SAE J14 Class SC

1шт.

34

K200462

FITTING

TEE - connector

1шт.

35

K917126

HOSE

- 1-3/4 x 2-3/8" (Plessey pump)

1шт.

35

K627661

CONNECTOR, ELEC

HOSE - 1-1/2 x 2" (Dowty pump)

1шт.

37

K623829

PLUG

- 3/8 BSP (Synchromesh, MFD Model)

1шт.

38

K626780

WASHER

- sealing, 5/8" (Synchromesh, MFD Model)

1шт.

39

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- 1" ID

2шт.

40

K600211

BOLT

- 5/16 UNC x 2-1/4"

4шт.

41

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.
