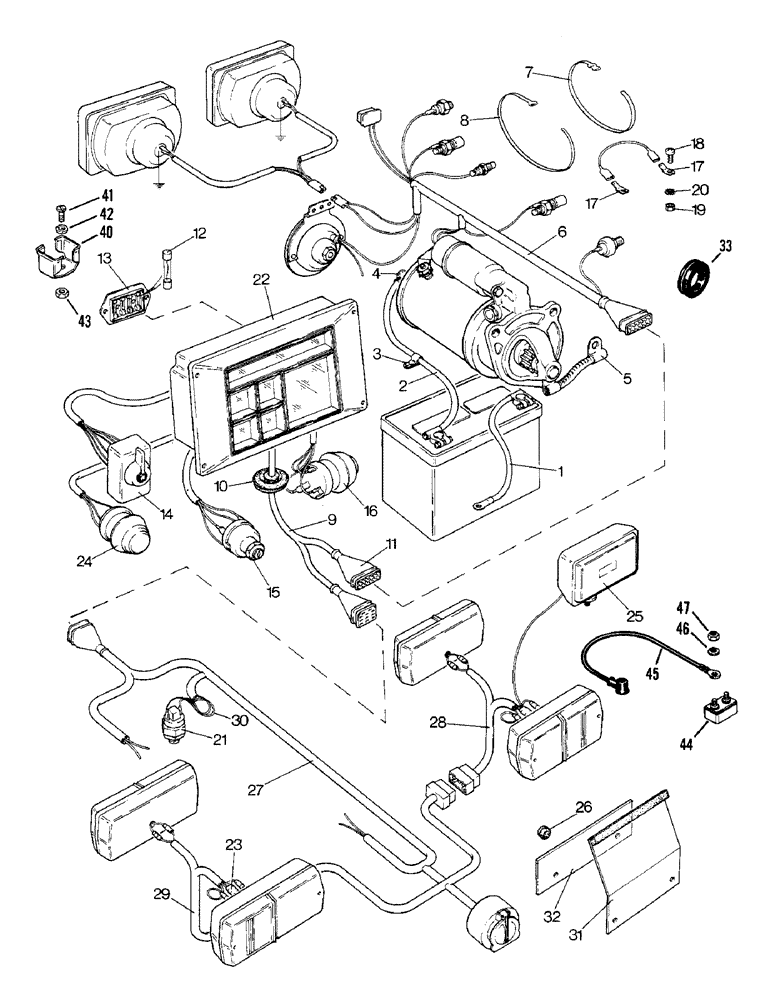

Запчасти Case IH 1690 (S09-1) - ELECTRIC WIRING, HIGH PLATFORM, CAB MODEL (06) - ELECTRICAL SYSTEMS

1

K917372

CABLE

- battery, grounding

1шт.

2

K202240

CABLE

- battery, positive

1шт.

3

K15518

CLAMP

CABLE CLIP

2шт.

4

K87560

CONTACT HOUSING

RUBBER COVER - starter terminal

1шт.

5

K947336

CABLE

-, Serial Range: starter-ground

1шт.

6

K302414

HARNESS

- engine, Serial Range: -11213470

1шт.

6

K304906

HARNESS

- engine auxiliaries, Start Serial: 11213470

1шт.

K304902

TERMINAL CONNECTOR

COVER - harness connector

1шт.

7

K19928

CLIP

BUCKLE CLIP - 7" long

3шт.

8

K621702

CLIP

BUCKLE CLIP - 10" long

2шт.

9

K300817

PANEL

HARNESS - panel, Serial Range: -11211841

1шт.

Harness has 11 Spade (Blade) Connectors

1шт.

9

K304222

PANEL

HARNESS - panel, Start Serial: 11211841

1шт.

Harness has 12 Round (Bullet) Connectors

1шт.

10

K627759

GROMMET

- harness

1шт.

11

K951338

BELLOWS

COVER - plug

2шт.

12

K947431

FUSE

- 35 ampere

1шт.

13

K950625

BOX, FUSE

FUSE BOX - see figure S5

1шт.

14

K300893

SWITCH

- lighting

1шт.

15

K203992

IGNITION SWITCH

SWITCH - isolating/starter

1шт.

16

K300657

SWITCH

- lighting/horn push

1шт.

17

K925268

BLADE

CONNECTOR - wire

2шт.

18

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- #10 x 1/2"

1шт.

19

K617080

NUT

- #10

1шт.

20

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

21

K200652

NEUTRAL START SWITCH

SAFETY SWITCH - starter

1шт.

22

K300268

CLUSTER

INSTRUMENT PANEL - see figure B9

1шт.

23

K86230

CONNECTOR, ELEC

CONNECTOR - double

2шт.

24

K302999

SWITCH

- floodlamp

1шт.

25

K302373

LAMP, WORK

FLOODLAMP ASSEMBLY - rear

4шт.

K260687

LENS

- lamp

1шт.

26

K627773

GROMMET

- split, 1/2"

4шт.

27

K303912

HARNESS

- rear wiring assembly

1шт.

If you need the rectangular plug end for ref 27, look at k303912 in the 1490 catalog. it illustrates it seperately.

1шт.

28

K303913

HARNESS

- right-hand fender

1шт.

29

K303914

HARNESS

- left-hand fender

1шт.

30

K303915

HARNESS

- starter safety switch and fuel gage

1шт.

31

K302860

GUARD

- harness, rear lamps

2шт.

32

K302862

GUARD

- harness front lamps

2шт.

33

K653161

GROMMET

- harness

1шт.

40

K304457

CLIP

- circuit breaker, Start Serial: 11213470

1шт.

41

K652463

SCREW

- M5 x 12

1шт.

42

K651846

WASHER, LOCK

WASHER - lock, 5 MM

1шт.

43

825-1105

NUT,M5, Cl 8

- M5

1шт.

44

K304904

BREAKER

- circuit, 40 ampere, Start Serial: 11213470

1шт.

45

K304806

ELECTRICAL WIRE

LEAD - starter to circuit breaker, Start Serial: 11213470

1шт.

46

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

47

K617080

NUT

- #10 NF hex

1шт.
