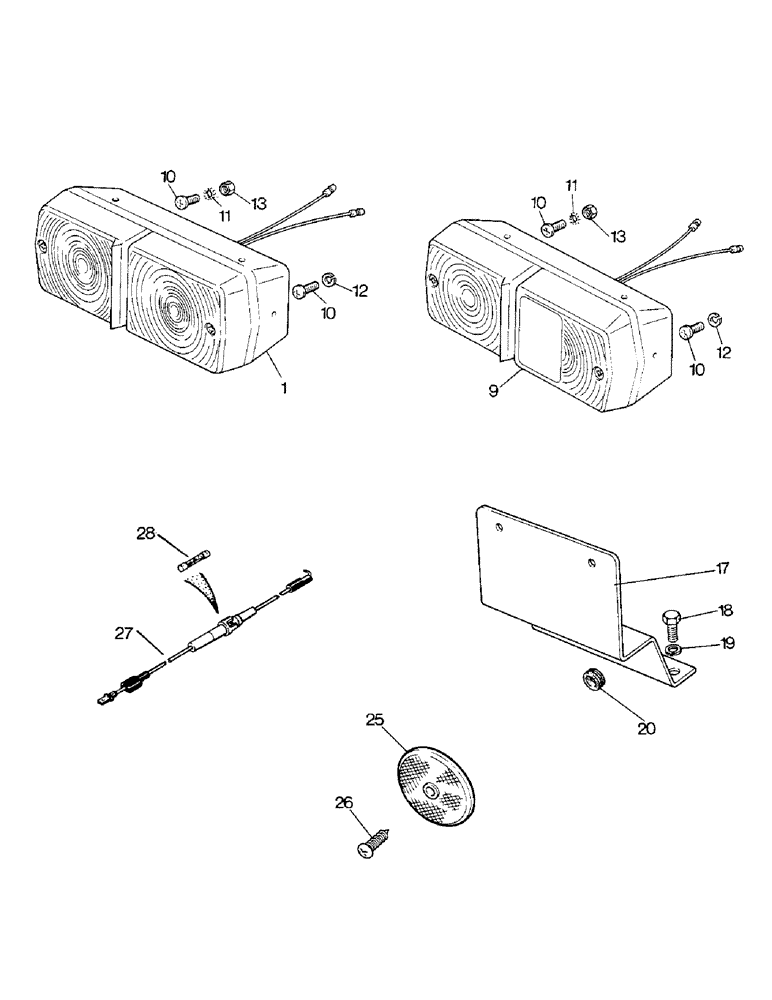

Запчасти Case IH 1690 (S06-1) - SIDE LAMPS AND REAR LAMPS, HIGH PLATFORM, CAB, LOW PROFILE (06) - ELECTRICAL SYSTEMS

1

K300195

LIGHT

SIDE AND FLASHER LAMP - left-hand

1шт.

K260911

LENS

- side and flasher lamp

1шт.

K963886

BULB

- flasher lamp (Lucas 382)

1шт.

K954463

BULB

- side lamp (Lucas 239)

1шт.

1

K300194

LIGHT

SIDE AND FLASHER LAMP - right-hand

1шт.

K260911

LENS

- side and flasher lamp

1шт.

K963886

BULB

- flasher lamp (Lucas 382)

1шт.

K954463

BULB

- side lamp (Lucas 239)

1шт.

9

K300190

LAMP

STOP AND FLASHER LAMP - left-hand, rear

1шт.

K260880

LENS

- stop and flasher lamp

1шт.

K963886

BULB

- turn signal (Lucas 382)

1шт.

K300192

BULB

- stop light (Lucas 380)

1шт.

9

K300189

LAMP

STOP AND FLASHER LAMP - right-hand, rear

1шт.

K260880

LENS

- stop and flasher lamp

1шт.

K963886

BULB

- turn signal (Lucas 382)

1шт.

K300192

BULB

- stop light (Lucas 380)

1шт.

10

K652463

SCREW

- M5 x 12, lamps to fenders (Low Profile)

8шт.

10

K613147

SCREW

SETSCREW - 1/4 x 1", NF hex (High Platform, Cab)

8шт.

11

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , Lamps to fenders (High Platform, Cab) Ext Tooth, #10

8шт.

12

K651846

WASHER, LOCK

WASHER - lock, 5 MM, lamps to fenders (Low Profile)

8шт.

13

825-1105

NUT,M5, Cl 8

- M5, lamps to fenders (Low Profile)

8шт.

17

K301333

BRACKET

- support (Low Profile)

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8 (Low Profile)

2шт.

19

K651848

WASHER

- lock, 8 MM (Low Profile)

2шт.

20

K627705

GROMMET

- wire (Low Profile)

1шт.

25

K302778

REFLECTOR

- red

2шт.

26

K624797

SCREW

- self tapping, #6 x 1/2"

2шт.

27

K304217

FUSE

HOLDER ASSEMBLY - lead and fuse (High Platform, Cab)

1шт.

28

K304216

FUSE

- 50 ampere (High Platform, Cab)

1шт.
