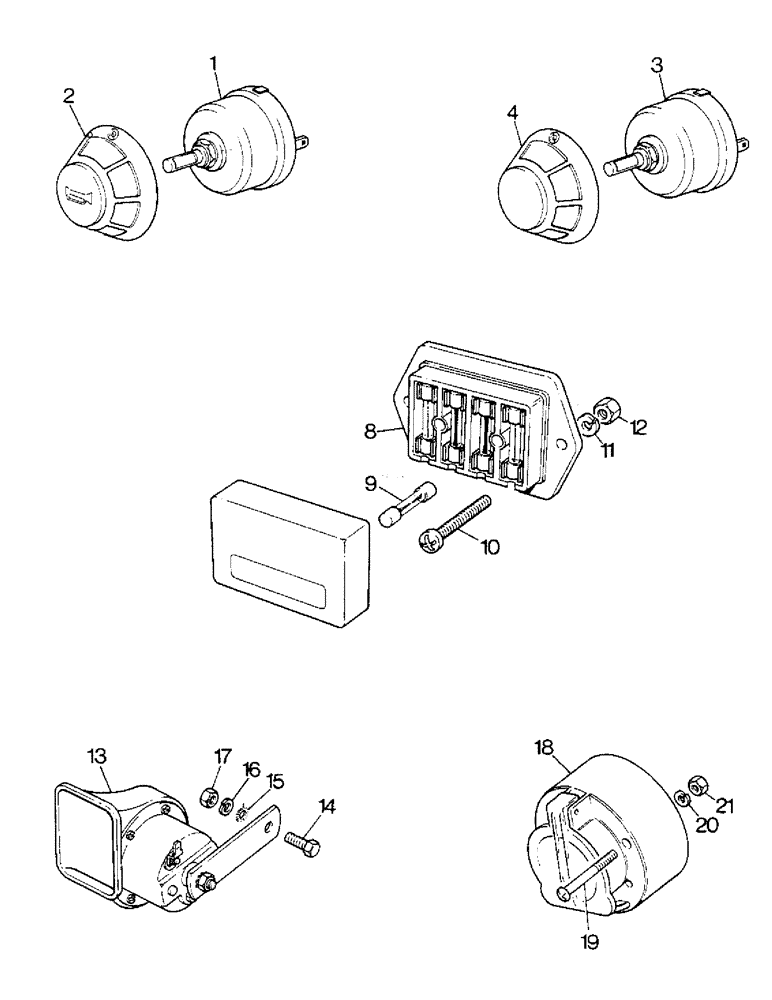

Запчасти Case IH 1690 (S03-1) - SWITCHES, FUSE BOX, HORN AND TRAILER SOCKET, HIGH PLATFORM, CAB, LOW PROFILE (06) - ELECTRICAL SYSTEMS

1

K300657

SWITCH

- lights and horn (Lucas 54349813)

1шт.

2

K300792

KNOB

- lights and horn switch

1шт.

3

K302999

SWITCH

- rear floodlamps (High Platform, Cab), Includes Ref. 4

1шт.

4

K302400

KNOB

- floodlamp switch (High Platform, Cab)

1шт.

8

K204610

BOX, FUSE

FUSE BOX - electrical

1шт.

K261009

COVER

- fuse box

1шт.

9

K947431

FUSE

- 35 amp

3шт.

9

K904459

FUSE

- 25 amp

2шт.

9

K951395

FUSE

- 15 amp

1шт.

10

K614946

SCREW,Pan, #10 - 32 x 3/4"

- no. 10 UNF x 3/4"

2шт.

11

K626340

RING

WASHER - lock, 3/16"

2шт.

12

K617080

NUT

- no. 10 UNF

2шт.

13

K950098

HORN

- sounding

1шт.

14

K602733

SCREW

SETSCREW - 1/4 UNC x 5/8"

1шт.

15

K11524

LOCK WASHER

- lock, 1/4"

1шт.

16

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

17

K607043

NUT

- 1/4 UNC

1шт.

18

K913566

POINT

TRAILER SOCKET - (Order A67470 outlet kit)

1шт.

19

K652466

SCREW

- M5 x 25

3шт.

20

K651846

WASHER, LOCK

WASHER - lock, 5 MM

3шт.

21

K651525

NUT

- M5

3шт.
