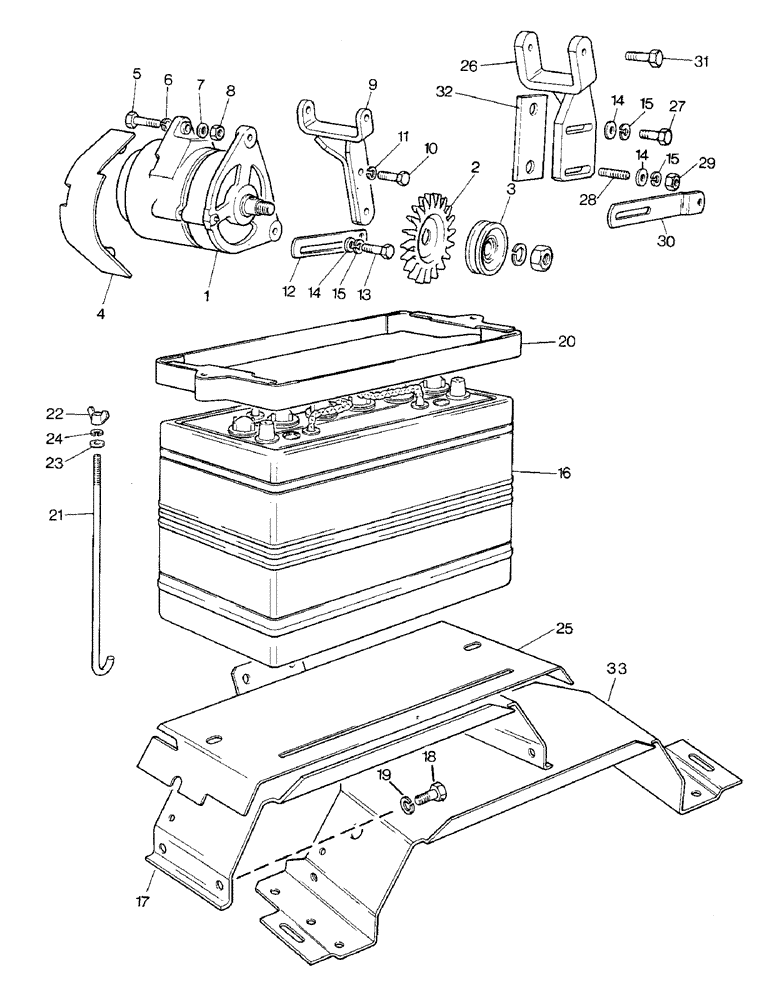

Запчасти Case IH 1690 (S01-1) - ALTERNATOR AND BATTERY, HIGH PLATFORM, CAB, LOW PROFILE (06) - ELECTRICAL SYSTEMS

1

K956426

ALTERNATOR

ALTERNATOR (Lucas 23851) (See figure S11-1) (Low Profile)

1шт.

1

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

1

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 26 Amp

1шт.

1

K302424

ALTERNATOR

ALTERNATOR - 65 amp (Lucas 24049) (See figure S10-1) (High Platform, Cab)

1шт.

1

92281C1

ALTERNATOR

ALTERNATOR - 12 VOLT 70AMP

1шт.

1

87800219R

REMAN-ALTERNATOR

Reman For New PN 92281C1

1шт.

1

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

1

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt, 135 ampere

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

K942129

FAN

FAN - alternator (Low Profile)

1шт.

2

K302509

FAN

FAN - alternator (High Platform, Cab)

1шт.

3

K942045

PULLEY

PULLEY - drive (Low Profile)

1шт.

3

K302510

PULLEY

PULLEY - drive (High Platform, Cab)

1шт.

4

K950496

FAN

GUARD - alternator (Low Profile)

1шт.

4

K302427

GUARD

GUARD - alternator (High Platform, Cab)

1шт.

5

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT, (Low Profile) Hex, 5/16"-18 x 1 1/4", G5

2шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT, (High Platform, Cab) Hex, 5/16"-18 x 1 1/4", G5

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

K626916

WASHER

WASHER - 5/16" special

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

9

K950059

BRACKET

BRACKET - alternator support (Low Profile)

1шт.

10

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, (Low Profile) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Low Profile) 5/16"

2шт.

12

K955053

ADJUSTER

STRAP - adjuster (Low Profile)

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

SETSCREW - M8 x 20

1шт.

14

K626916

WASHER

WASHER - 5/16", special

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Low Profile) 5/16"

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (High Platform, Cab) 5/16"

4шт.

16

A38411

DRY BATTERY

BATTERY - standard duty

1шт.

16

A145205

WET BATTERY

BATTERY - heavy duty

1шт.

17

K300270

BRACKET

SUPPORT BRACKET - battery, Serial Range: -11213340

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

19

K651848

WASHER

SPRING WASHER - 8 MM

4шт.

20

K947080

FRAME

CLAMP FRAME - battery

1шт.

21

K300235

BOLT

CLAMPING STUD - M6 x 250, standard battery

2шт.

21

K300035

BOLT

CLAMPING STUD - M6 x 300, heavy duty battery

2шт.

22

K651744

NUT

WING NUT - M6

2шт.

23

K651777

WASHER

WASHER - 6 MM

2шт.

24

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

25

K301229

BAFFLE

SEATING PAD AND BAFFLE - battery

1шт.

26

K204268

MOUNTING PARTS

BRACKET - alternator ssupport (High Platform, Cab)

1шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT, (High Platform, Cab) Hex, 5/16"-18 x 1 1/4", G5

1шт.

28

K608152

STUD

STUD - 5/16 UNC x 2" (High Platform, Cab)

1шт.

29

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16 UNC (High Platform, Cab)

2шт.

30

K204269

ADJUSTER

ADJUSTER (High Platform, Cab)

1шт.

31

K600365

BOLT

BOLT - 5/16 UNC x 1-1/2" (High Platform, Cab)

1шт.

32

K204267

BUSHING

SPACER - bracket (High Platform, Cab)

1шт.

33

K302984

BRACKET

SUPPORT - battery (P.I.N. 11213340 and after)

1шт.
